E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter
E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter
E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter
E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter
E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter
E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter
E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter
E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter
Specifications
Brand Name :
E+H
Model Number :
FMU41-ARD2A2
Certification :
ATEX
Place of Origin :
DE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Allipay,paypal
Supply Ability :
100pcs per month
Delivery Time :
12-18 weeks
Packaging Details :
carton
Monitoring Loop Quantity :
4~8 loops (configurable)
Input Signal :
AC current: 0~5A; AC voltage: 0~450V
Measurement Accuracy :
Current: ±0.5% FS; Voltage: ±0.5% FS
Communication Protocol :
Modbus RTU (RS-485)
Protection Rating :
IP20 (panel-mounted)
Operating Humidity Range :
10%~90% RH (non-condensing)
Display :
LCD display, backlight optional
Description

E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter


Product Details:

Manufacturer : Endress+Hauser

Product No. :FMU41-ARD2A2

https://www.achievers-automation.com More Products


This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

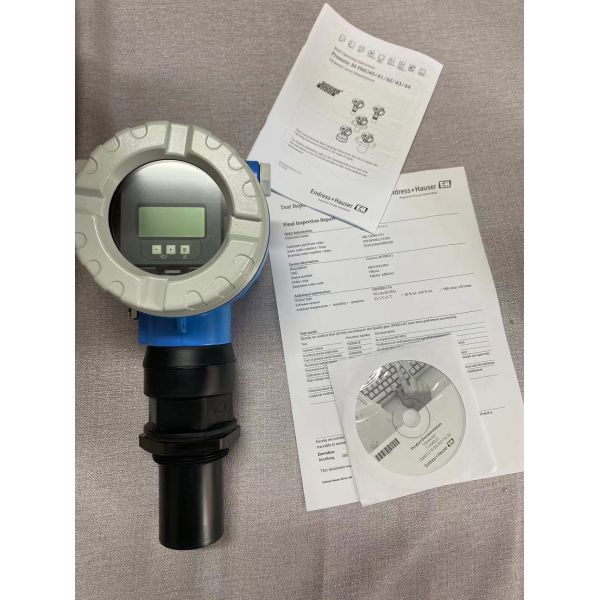

The E+H FMU41-ARD2A2 is an integrated compact ultrasonic level transmitter under Endress+Hauser Prosonic M series, adopting Time-of-Flight ultrasonic measuring principle for continuous non-contact level detection of liquid, paste, sludge and bulk solid material. It also realizes open channel & weir flow calculation via built-in 32-point linear correction algorithm, eliminating mechanical contact wear and frequent routine maintenance. Equipped with 4-line multilingual local display and envelope curve diagnostic function, the FMU41-ARD2A2 supports both 2-wire and 4-wire power supply modes with standard HART communication, widely deployed in water treatment, chemical, food processing, mining bulk storage and petrochemical industries.

Detail:



Parameter Item Technical Value
Model Code FMU41-ARD2A2 (E+H Prosonic M series)
Measuring Principle Ultrasonic Time-of-Flight (ToF)
Max Measuring Range Liquid:8m / Bulk Solid:3.5m
Measurement Accuracy ±2mm or ±0.2% of full calibrated measuring range
Blind Zone 0.25m
Output Signal Standard 4-20mA + HART protocol
Power Supply Mode 2-wire DC 10.5~32VDC / 4-wire DC14~36VDC, AC90~253V 50/60Hz
Linear Correction Max 32 programmable correction points
On-site Display 4-line multi-language digital display with envelope diagnostic curve
Communication Option HART(default), optional PROFIBUS PA / FOUNDATION Fieldbus


Spec Category Detailed Parameter
Wetted Sensor Material PVDF (anti-corrosion for most acid & alkaline medium)
Housing Material Coated Cast Aluminum
Process Connection ISO228 G2 Thread
Process Medium Temp -40°C ~ +80°C (-40°F~176°F)
Absolute Working Pressure 0.7bar ~ 3bar abs (10~44PSI)
Ingress Protection Grade IP68 / NEMA 6P
Ambient Working Temperature -40°C ~ +80°C
Global Certifications ATEX, FM, CSA, NEPSI, TIIS explosion-proof approvals

E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter




Brand

E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter

E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.



Company Introduction:

E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter

Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.

E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter

Below are the TOP BRANDS we handle in the past 14 years:

E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter

FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
