Beckhoff KL2424 4‑Channel Digital Output Bus Terminal

Specifications

Model Number :

KL2424

Mounting Hole Spacing :

7.874" (200.00mm)

MOQ :

Delivery Time :

Negotiable

Switching Mode :

Light/dark switching

Price :

Negotiable

Housing :

GT20 dual compartment, alu, coated

Certification :

ATEX

Payment Terms :

T/T,Allipay,paypal

Command Source :

DS402 object

Surface Roughness :

3.2µm

Operating Temperature :

0°C to 55°C

Supply Ability :

100pcs per month

Torque Limit Operation :

Set by parameters

Brand Name :

Balluff

Sensing Range :

0-10m

Packaging Details :

carton

Place of Origin :

China

Description

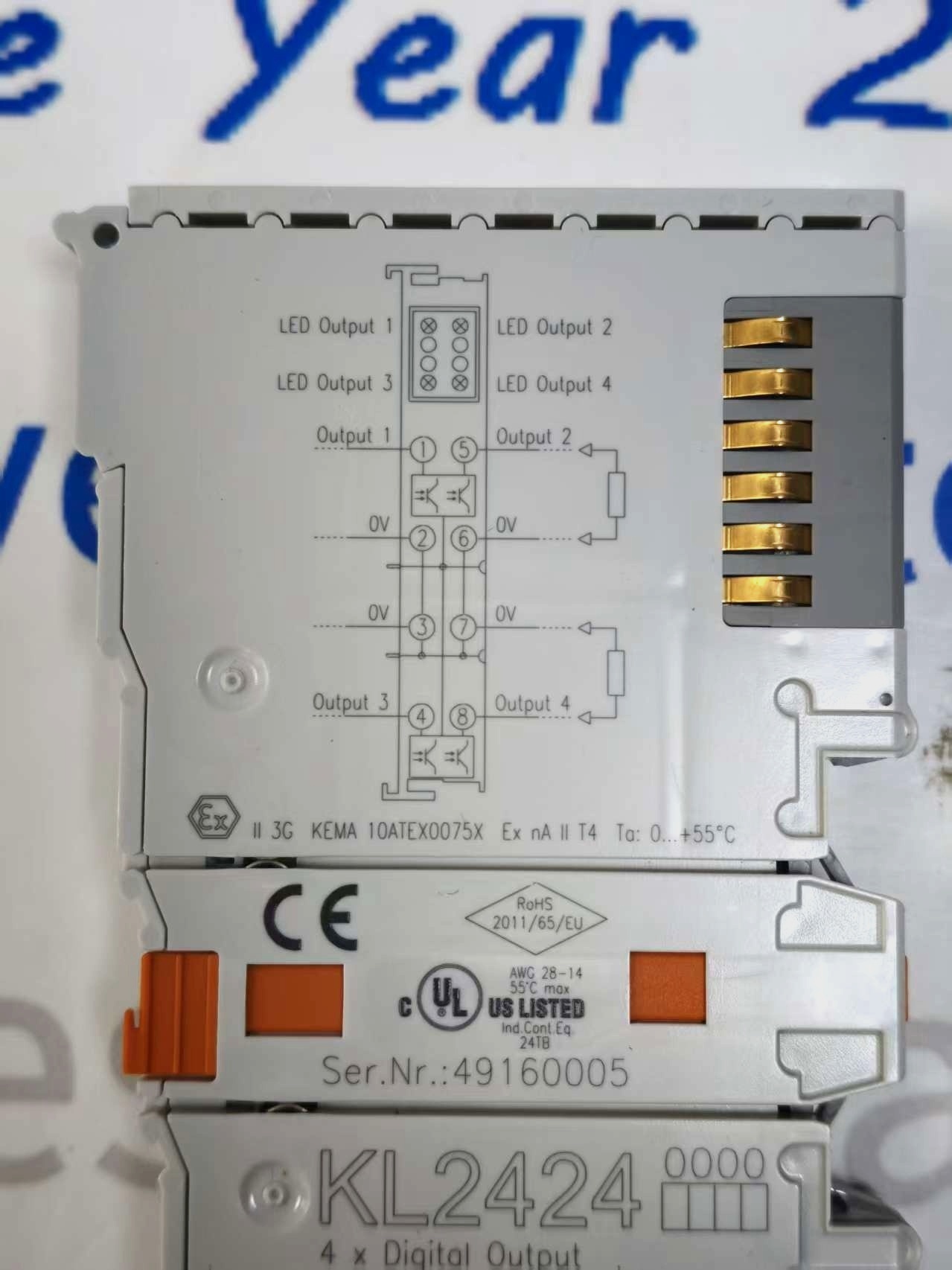

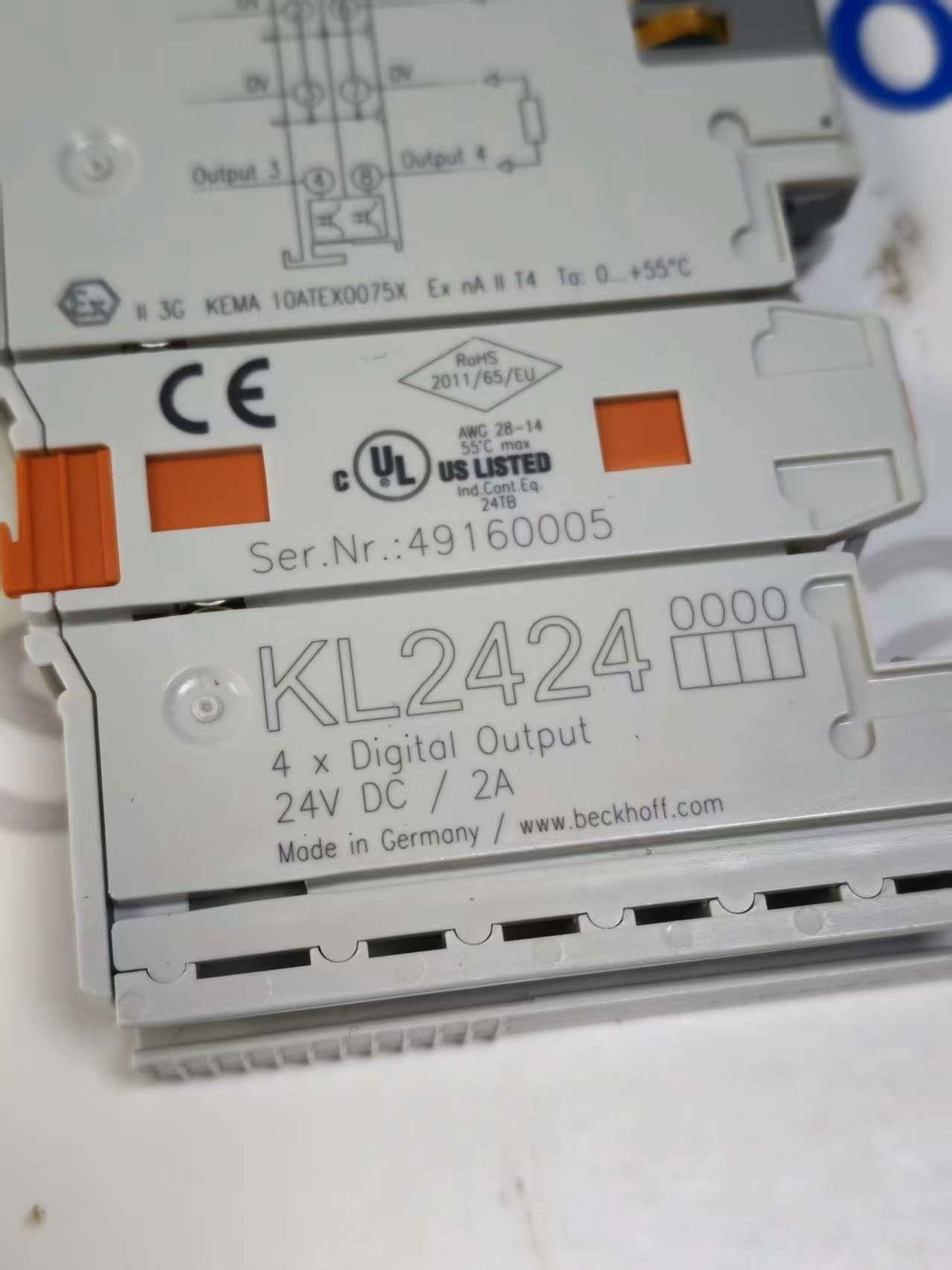

Beckhoff KL2424 4‑Channel Digital Output Bus Terminal

Name: Beckhoff KL2424 4Channel Digital Output Bus Terminal
Brand: Balluff
Price: 1 USD

Product Details:

Manufacturer : Balluff

Product No. : KL2424

https://www.achievers-automation.com More Products

Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

Beckhoff KL2424 is a high‑performance digital output bus terminal within the KL2xxx series for EtherCAT and K‑Bus I/O systems. This terminal converts controller‑side binary signals into isolated 24 V DC field‑level output signals to drive actuators, relays, solenoid valves and lamp loads. Each of the four output channels features short‑circuit protection and status LED indication. It adopts 2‑wire connection technology and requires no manual address configuration, supporting fast modular installation on standard DIN‑rail inside control cabinets. Galvanic isolation of 500 V separates K‑Bus logic side and field power circuit to enhance system anti‑interference capability in harsh industrial environments.

Detail:

Parameter	Value
Part Number	KL2424
Brand	Beckhoff
Product Type	Digital Output Bus Terminal
Number of Output Channels	4
Nominal Field Voltage	24 V DC (-15 % / +20 %)
Max Output Current per Channel	2.0 A (short‑circuit‑proof)
Short‑circuit Current	< 70 A
Max Breaking Energy	< 1.7 J per channel
Load Types	Ohmic, inductive, lamp load
Electrical Isolation	500 V (K‑Bus / field potential)
Reverse‑Voltage Protection	Yes
K‑Bus Current Consumption	Typ. 9 mA
Power Contact Current Consumption	Typ. 30 mA + external load
Process Image Bit Width	4 output bits
Configuration Requirement	No address setting required
Connection Technology	2‑wire

Attribute	Details
Dimensions (W × H × D)	15 mm × 100 mm × 70 mm
Weight	Approx. 70 g
Mounting	35 mm DIN‑rail according to EN 60715
Protection Class	IP20
Operating Ambient Temperature	-25 °C … +60 °C
Storage Temperature	-40 °C … +85 °C
Relative Humidity	95 %, non‑condensing
Vibration & Shock	Complies with EN 60068‑2‑6, EN 60068‑2‑27
EMC Standard	EN 61000‑6‑2, EN 61000‑6‑4
Certifications	CE, cULus
