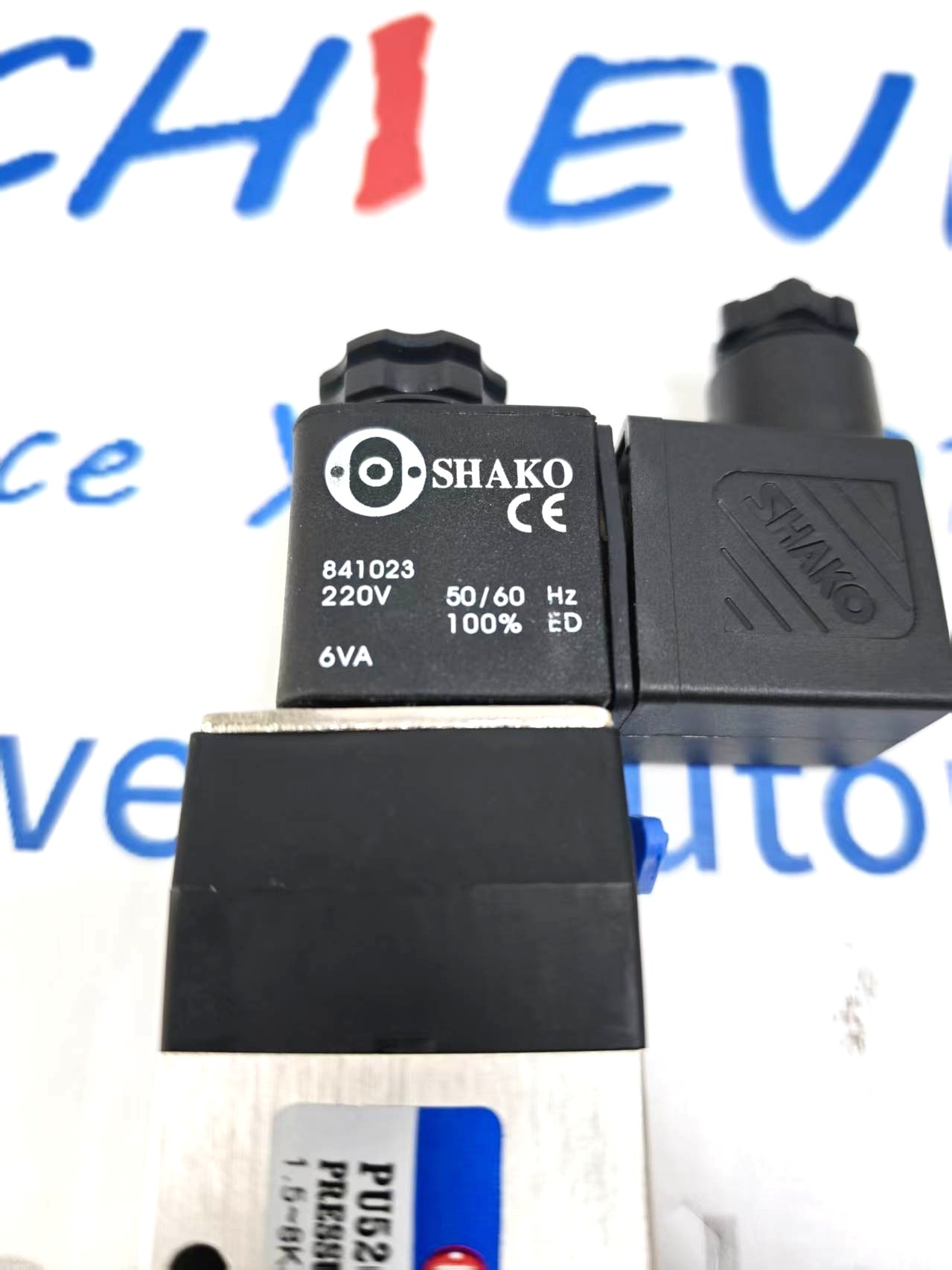

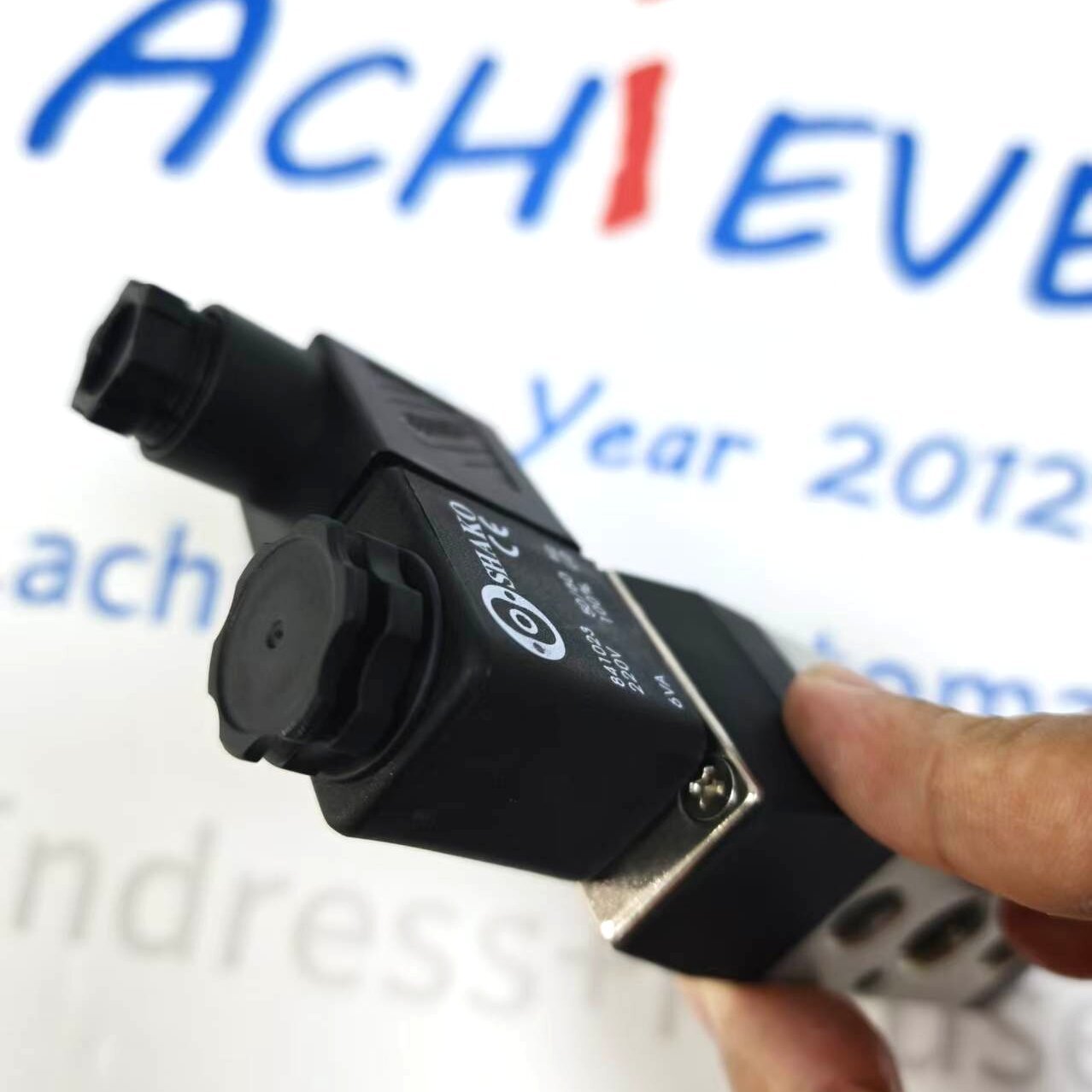

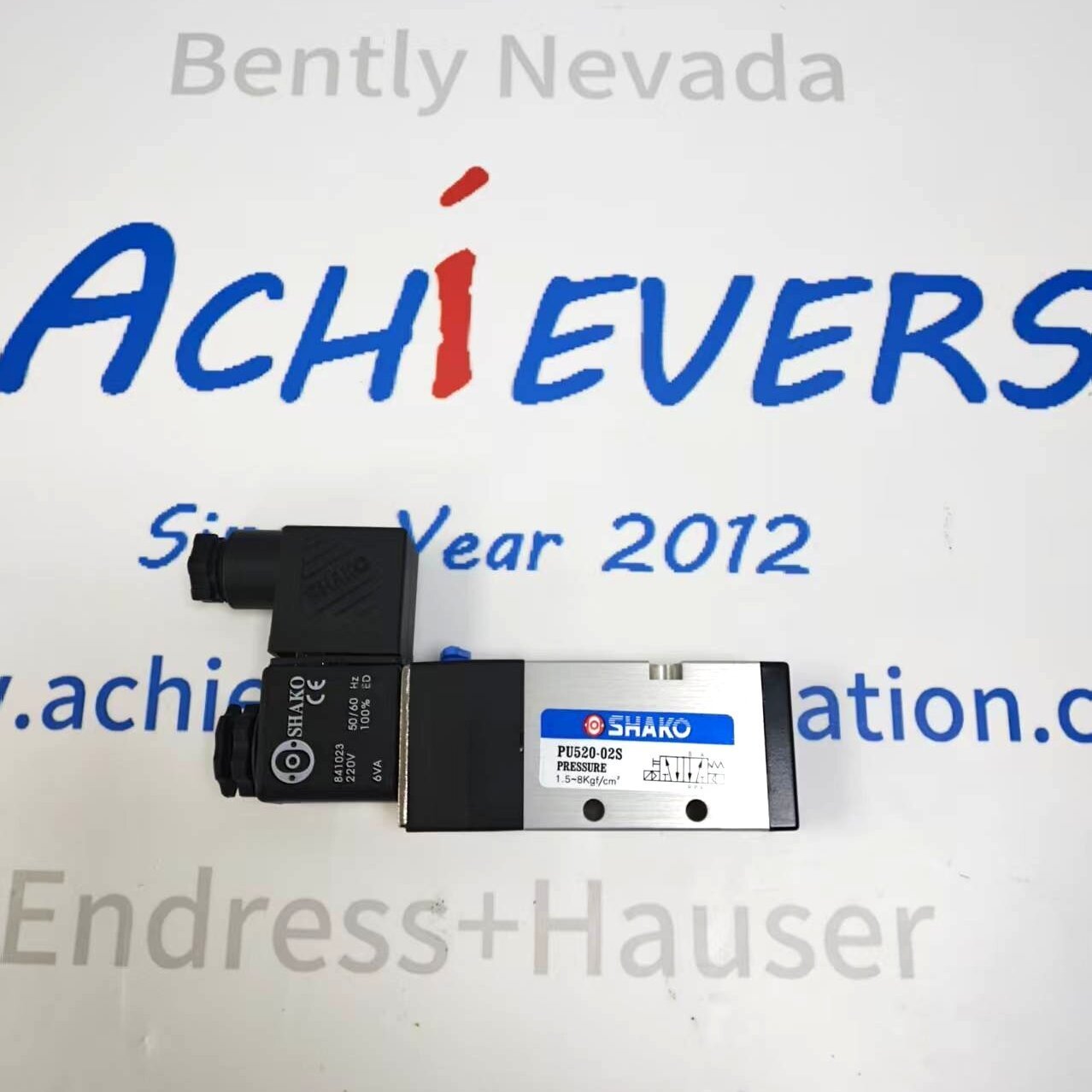

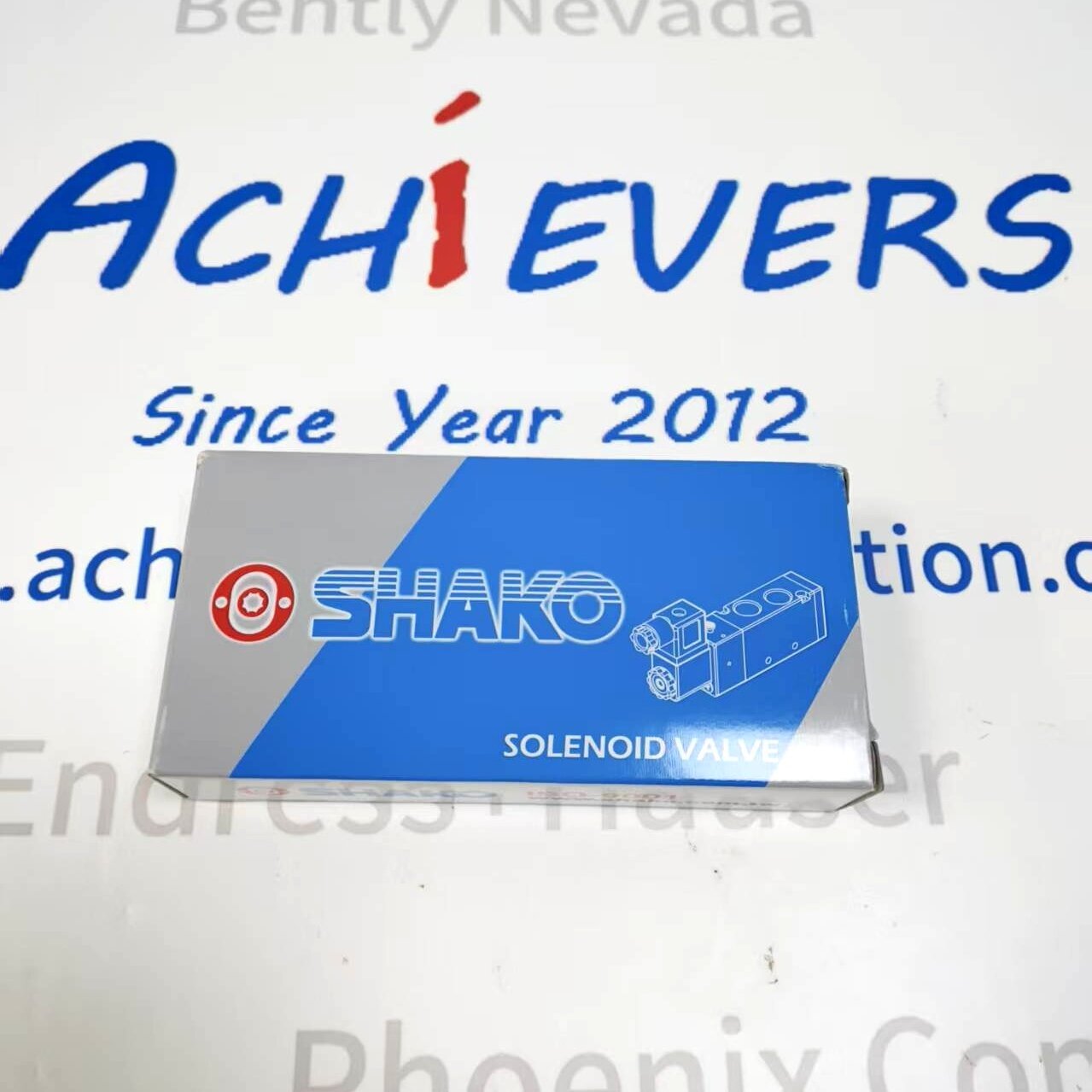

SHAKO PU520-02S 5/2 Way Pilot Solenoid Valve

Product Details:

Manufacturer : SHAKO

Product No. : PU520-02S


https://www.achievers-automation.com More Products


Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting profesional procurement and long-term cooperation.


SHAKO PU520‑02S belongs to SHAKO PU‑series pneumatic solenoid valves. It is a 5/2‑way single‑solenoid spring‑return valve adopting internal pilot actuation, designed for compressed‑air control in automation systemsAlibaba.co.... The anodized aluminum alloy body delivers stable performance under industrial working conditions. It supports standalone mounting or manifold installation with MF520‑02 series manifold bases. Equipped with lockable manual override for commissioning without power supply. Widely used to control pneumatic cylinders, actuators and other pneumatic field devicesShako.


Detail:

Item Parameter
Model PU520‑02S
Valve Type 5/2‑Way Single Solenoid Pilot Solenoid Valve
Actuation Mode Internal Pilot, Spring Return
Main Port Size 1/4"
Exhaust Port Size 1/8"
Effective Area 18 mm²
Working Fluid Compressed Air
Operating Pressure 1.5‑8 kgf/cm²
Proof Pressure 9.9 kgf/cm²
Body Material Anodized Aluminum Alloy
Net Weight 270 g



Specification Value
Ambient Temperature Range ‑10 °C ~ +60 °C
Coil Protection Rating IP65 (DIN 40050)
Duty Cycle 100 % ED
Insulation Class Class F
Voltage Tolerance ±10 %
Standard Coil Voltages 24 VDC, 110 VAC, 220 VAC
Electrical Connection DIN43650 connector
Compatible Manifold MF520‑02 series
Certifications CE
