Specifications
Model Number :
NBB15-U4K-NO
Payment Terms :
D/A
Construction Type :
M12
Tightening Torque :
0.6 Nm
Length :
63.5 mm
Place of Origin :
Vietnam
Output Polarity :
DC
Switching Frequency :
≤ 10 Hz
Output Current :
4-20 mA
MOQ :
1
Linearity Error :
0.1 %
Target Size :
0.3 mm
Brand Name :
P&F
Interface Type :
RS-485 , 2-wire multidrop
Description

P&F NBB15-U4K-NO Inductive Proximity Sensor


Product Details:

Manufacturer : Pepperl + Fuchs

Product No. : NBB15-U4K-NO

https://www.achievers-automation.com More Products


Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

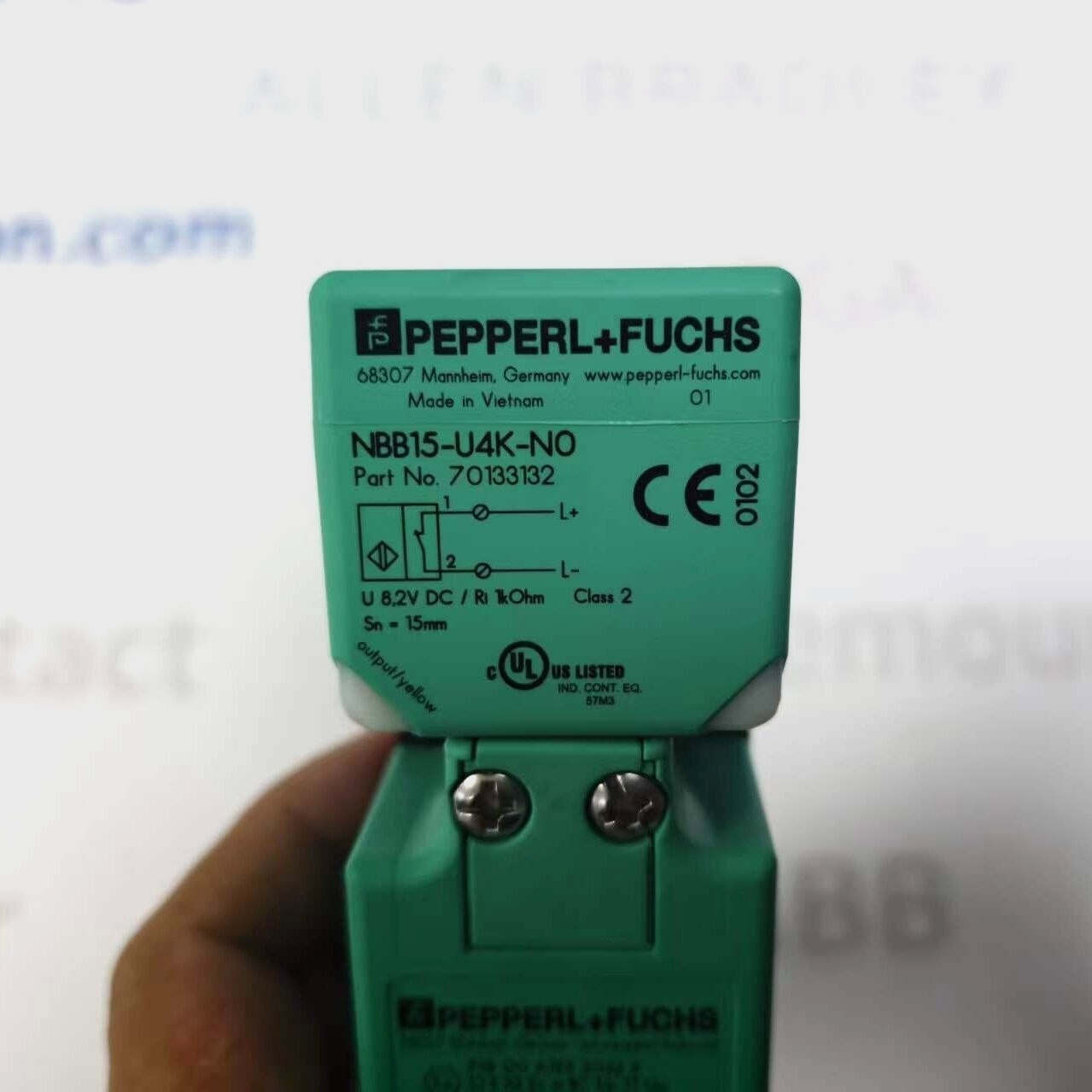

Pepperl+Fuchs (P&F) NBB15‑U4K‑NO is a VariKont‑series flush‑mount inductive proximity sensor with NAMUR two‑wire output, designed for intrinsically‑safe operation within explosive hazardous zonesPepperl+Fu.... This square‑style proximity sensor delivers reliable metal object detection with 15 mm rated sensing distance. The rotatable sensor head supports flexible on‑site installation, built‑in reverse‑polarity and short‑circuit protection ensures stable performance in heavy‑duty industrial and Ex‑area environmentsPepperl+Fu.... Yellow LED visual status indicator enables quick on‑site diagnosis.

Detail:

Parameter Value
Part Number NBB15‑U4K‑NO
Brand Pepperl+Fuchs (P&F)
Product Type Inductive Proximity Sensor
Series VariKont
Switching Function Normally Closed (NC)
Output Interface NAMUR, 2‑wire
Rated Operating Distance (Sn) 15 mm
Installation Type Flush mount
Assured Operating Distance (Sa) 0‑12.15 mm
Actual Operating Distance (Sr) 13.5‑16.5 mm (typical 15 mm)
Nominal Voltage 8.2 V (internal resistance approx.1 kΩ)
Max Switching Frequency 300 Hz
Hysteresis Typ. 5 %
Reverse Polarity Protection Yes
Short‑Circuit Protection Yes
Current Consumption (no target) ≥ 2.2 mA
Current Consumption (target detected) ≤ 1 mA
Status Indicator Yellow LED

Attribute Details
Housing Dimension 40 mm × 40 mm × 118 mm
Housing Material PA‑plastic with metal base
Sensing Face Material PA
Connection Type Screw terminal, max 2.5 mm² wire cross‑section
Protection Rating IP68 / IP69K
Ambient Operating Temperature ‑25 °C ~ +100 °C
Storage Temperature ‑40 °C ~ +100 °C
Weight 225 g
Safety Standard IEC 60947‑5‑6, EN 60947‑5‑6

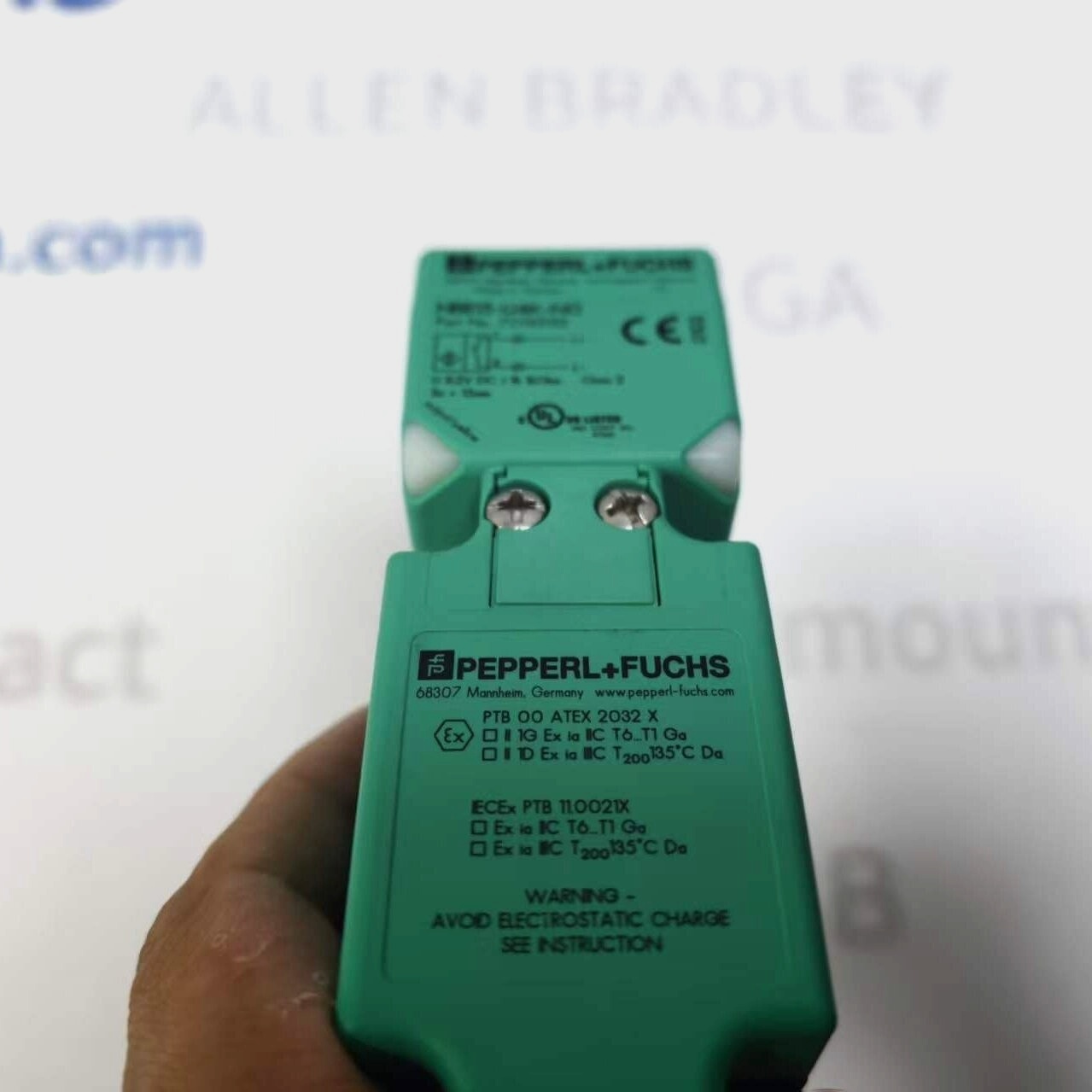

Hazardous‑Area Certifications ATEX, IECEx, NEPSI
MTTFd 1660 years
Mission Time TM 20 years
UNSPSC Code 32151703
ECCN EAR99
