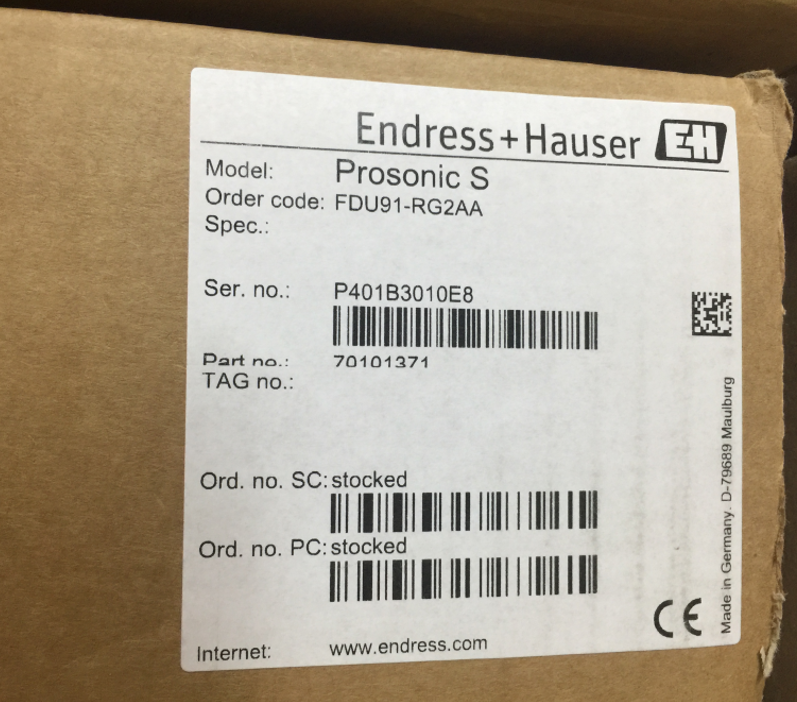

E+H FDU91-RG2AA Ultrasonic Level Sensor
E+H FDU91-RG2AA Ultrasonic Level Sensor
E+H FDU91-RG2AA Ultrasonic Level Sensor
E+H FDU91-RG2AA Ultrasonic Level Sensor
Specifications
Model Number :
FDU91-RG2AA
Display :
LCD display, backlight optional
MOQ :
1
Delivery Time :
12-18 weeks
Operating Humidity Range :
10%~90% RH (non-condensing)
Price :
Negotiable
Measurement Accuracy :
Current: ±0.5% FS; Voltage: ±0.5% FS
Certification :
ATEX
Payment Terms :
T/T,Allipay,paypal
Input Signal :
AC current: 0~5A; AC voltage: 0~450V
Protection Rating :
IP20 (panel-mounted)
Communication Protocol :
Modbus RTU (RS-485)
Place of Origin :
DE
Supply Ability :
100pcs per month
Monitoring Loop Quantity :
4~8 loops (configurable)
Packaging Details :
carton
Brand Name :
E+H
Description

E+H FDU91-RG2AA Ultrasonic Level Sensor


Product Details:

Manufacturer : Endress+Hauser

Product No. : FDU91-RG2AA

https://www.achievers-automation.com More Products


This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.


FDU91-RG2AA is the Endress+Hauser Prosonic S ultrasonic sensor for continuous, non-contact and maintenance-free level measurement. It works together with FMU90 / FMU95 transmitters for liquid, paste, sludge, powder and bulk solid measurement, as well as open channel flow and weir flow monitoring.
The integrated temperature sensor compensates sound velocity for high measuring stability. The fully welded PVDF construction provides strong chemical resistance. The sensor self-cleaning effect reduces material buildup and minimizes maintenance work. It is applicable in explosive hazardous areas.

Detail:

Item Specification
Product Model FDU91-RG2AA
Brand Endress+Hauser (E+H)
Product Type Ultrasonic Level Sensor
Measurement Principle Ultrasonic time-of-flight
Max Measuring Distance (Liquid) 10 m (33 ft)
Max Measuring Distance (Solid) 5 m (16 ft)
Accuracy ±2 mm + 0.17% of measured distance
Beam Angle (3dB) 9°
Wetted Material PVDF, fully welded
Protection Class IP68 / NEMA 6P



Item Specification
Process Temperature Range -40 °C ~ +80 °C (-40 °F ~ 176 °F)
Process Pressure (Absolute) 0.7 bar ~ 4 bar abs (10 psi ~ 58 psi)
Resolution 1 mm
Compatible Transmitter FMU90, FMU95
Max Separation Distance (Sensor to Transmitter) 300 m
Certifications ATEX, IECEx, FM, CSA, Dust-Ex, Gas-Ex
Application Liquid, paste, sludge, powder, bulk solid; open channel flow measurement


E+H FDU91-RG2AA Ultrasonic Level Sensor


Brand

E+H FDU91-RG2AA Ultrasonic Level Sensor

E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.



Company Introduction:

E+H FDU91-RG2AA Ultrasonic Level Sensor

Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, , YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.

E+H FDU91-RG2AA Ultrasonic Level Sensor

Below are the TOP BRANDS we handle in the past 14 years:

E+H FDU91-RG2AA Ultrasonic Level Sensor

FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
