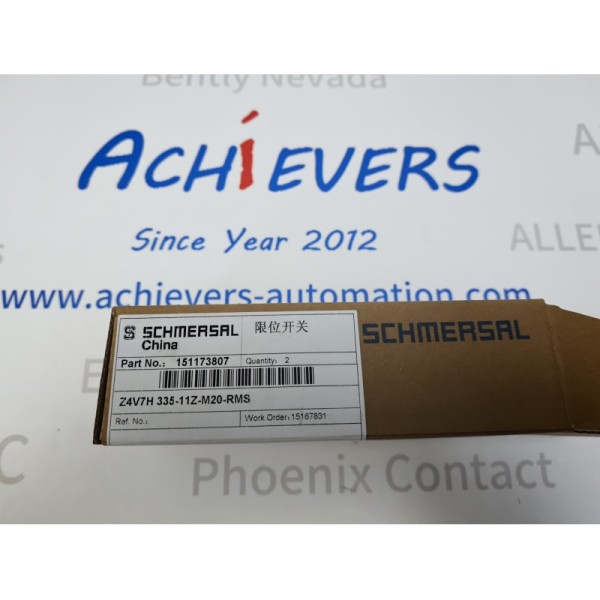

Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Specifications
Model Number :
Z4V7H 335-11Z-M20-RMS
Standard Target Plate :
20 mm x 20 mm
Payment Terms :
T/T
Housing Base :
metal
Load :
0 ... 800 Ω
Supply Ability :
100PC
Height :
15 mm
Brand Name :
Schmersal
Outputs Power :
975 mW
Protection Rating :
IP20
MOQ :
1
Packaging Details :
carton
Shipping Weight :
1 Kg
Place of Origin :
DE
Price :
Negotiation
Operating Voltage :
5 ... 25 V
Certification :
ATEX
Measuring Plate Detected :
≥ 3 mA
Voltage :
17 V at 20 mA
Description

Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch

Description:

Manufacturer : Schmersal

Product No. :Z4V7H 335-11Z-M20-RMS

https://www.achievers-automation.com More Products


Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.


The Schmersal Z4V7H 335-11Z-M20-RMS belongs to the Z4V7H standard position switch series, manufactured to EN 50041 specifications. This mechanical limit switch is equipped with an adjustable roller lever actuator for precise mechanical position feedback on automated machinery.

It adopts reliable snap-action switching mechanism with constant contact pressure, featuring 1 normally open and 1 normally closed contact set. The painted die-cast light alloy housing provides excellent resistance against oil, dust and mechanical impact. The actuator head can be rotated in four 90° increments to accommodate multiple installation orientations. Single M20×1.5 cable gland entry and screw terminal wiring simplify field wiring setup. This model is designed for general positioning monitoring applications in factory automation systems.


Detail:

Parameter Specification
Model Number Z4V7H 335-11Z-M20-RMS
Brand Schmersal
Product Type Mechanical Position Limit Switch
Contact Configuration 1 Normally Open (NO) + 1 Normally Closed (NC)
Switching Principle Snap-action
Contact Material Silver Alloy
Thermal Test Current 10 A
Utilization Category AC-15 230 VAC / 4 A
Utilization Category DC-13 24 VDC / 4 A
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Conditional Short-Circuit Current 1000 A
Max Switching Frequency 5000 operations/hour
Max Switchover Time < 2 ms


Parameter Specification
Actuating Element Adjustable Roller Lever (RMS)
Roller Material Brass
Minimum Actuating Torque 0.3 Nm
Maximum Actuating Speed 2.5 m/s
Housing Material Painted Die-cast Light Alloy
Cable Entry M20 × 1.5 Threaded Gland
Terminal Type Screw Terminals
Suitable Cable Cross Section 0.75 mm² ~ 2.5 mm²
Protection Class IP65, IP67
Operating Ambient Temperature -40 °C ~ +80 °C
Mechanical Service Life ≥ 30,000,000 operations
External Dimensions L 57.3 mm × W 40.5 mm × H 173.5 mm
Compliance Standards EN IEC 60947-5-1, EN 50041
Certifications CCC, cULus
Approximate Gross Weight 285 g


Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch


Brand

Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Schmersal is a German industrial low-voltage switch and machine control component company headquartered in Wuppertal, Germany, founded in 1945. After years of technological and product innovation, the company has developed into a global group company with approximately 1,300 employees worldwide and annual sales of 170 million euros. In addition, Shanghai Schmersal Electric Co., Ltd. is a leading domestic professional supplier of material conveying automation and monitoring. It was established in 1999 and is headquartered in the southern area of ​​Shanghai Jinqiao Processing Zone. It is mainly engaged in product solutions and services of sensing technology, sensing measurement and control systems, and material conveying systems.

Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch

Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, , YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.

Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch

Below are the TOP BRANDS we handle in the past 14 years:

Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch

FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.

Q:What is the warranty of goods?

A: One-year Warranty.
