Specifications
Brand Name :
Endress+Hauser
Model Number :
FTL50-JHN20
Certification :
ATEX
Place of Origin :
DE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Endress+Hauser FTL50-JHN20 Switch | Capacitive, Level, Solid/Liquid, 316L, 2-Wire, 24V DC

Endress+Hauser FTL50-JHN20 level switch specifications. Capacitive sensor, 2-wire, 24V DC, 316L, for high/low level detection.

Product Overview

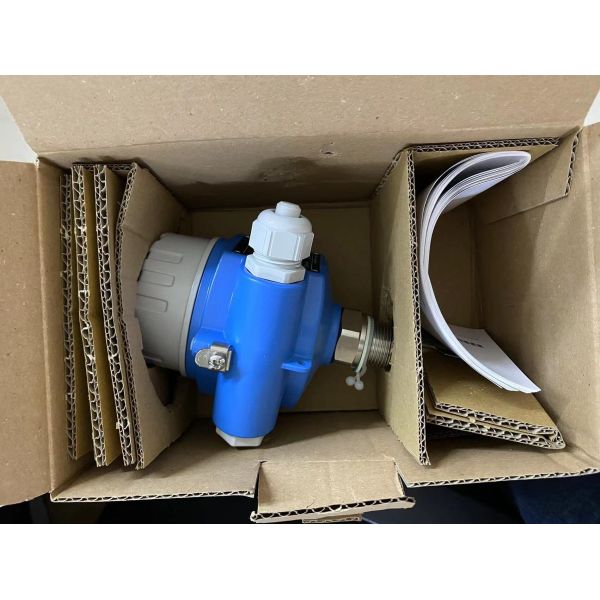

The Endress+Hauser FTL50-JHN20 is a capacitive level switch designed for point level detection of liquids, pastes, and bulk solids. It features a 316L stainless steel sensor rod, operates on a 24V DC, 2-wire loop, and provides a switching signal (PNP/NPN) for alarm or control functions. Its adjustable sensitivity and robust design make it suitable for detecting a wide range of media, including conductive and non-conductive materials, in tanks, silos, and hoppers.

Technical Specifications (Switch)

Parameter

Specification

Manufacturer​

Endress+Hauser AG

Series​

Levelflex/ Liquicap (FTL50)

Model​

FTL50-JHN20 (Specific Configuration)

Product Type​

2-Wire Capacitive Level Switch

Detection Principle​

Capacitive (RF admittance)

Media Detection​

Liquids, pastes, slurries, bulk solids (conductive & non-conductive)

Sensor Type​

Rod probe, 316L SS

Output​

Switching (PNP or NPN), 2-wire

Process Connection​

G1" or 1" NPT (typical)

Wetted Parts​

316L stainless steel

Technical Specifications (Electrical/Mechanical)

Parameter

Specification

Supply Voltage​

8-30V DC (2-wire)

Switching Current​

Typically 4-20 mA in switching mode

Sensitivity​

Adjustable (for different media and buildup compensation)

Response Time​

Adjustable (typically 0.1-10 seconds)

Process Temperature​

-50 to 200°C (-58 to 392°F)

Process Pressure​

Up to 100 bar (1450 psi)

Ambient Temperature​

-40 to 80°C (-40 to 176°F)

Protection Rating​

IP66/IP68

Electrical Connection​

1/2" NPT conduit with plug

Certifications​

CE, ATEX, IECEx

Key Features

  • 2-Wire Technology:​ Simple installation with only two wires for power and signal

  • Adjustable Sensitivity:​ Can be tuned for different media and to ignore coating/buildup

  • Versatile Media Detection:​ Works with conductive and non-conductive liquids and solids

  • Robust 316L Construction:​ Corrosion-resistant and suitable for abrasive media

  • High Pressure & Temperature Rating:​ For demanding process conditions

  • No Moving Parts:​ Maintenance-free operation

  • IP68 Submersible:​ Suitable for submersion

  • Hazardous Area Certified:​ Approved for explosive atmospheres

Applications

  • High/low level detection of powders, granules, and bulk solids in silos

  • Level alarm for liquids (water, chemicals, oils) in tanks

  • Interface detection

  • Pump control and dry-run protection

  • Level monitoring in chemical, plastics, food, and wastewater industries
