3RG4012-3AB00 | 8mm Flush Inductive Sensor, PNP NO, M12 Connector

Specifications

Model Number :

3RG4012-3AB00

Ambient Temperature :

Power Supply :

MOQ :

Delivery Time :

Negotiable

Supply Ability :

100pcs per month

Payment Terms :

T/T,XT,ALIPAY

Price :

Negotiable

Certification :

ATEX

Electrical Rating :

Place of Origin :

Certifications :

Packaging Details :

carton

Description

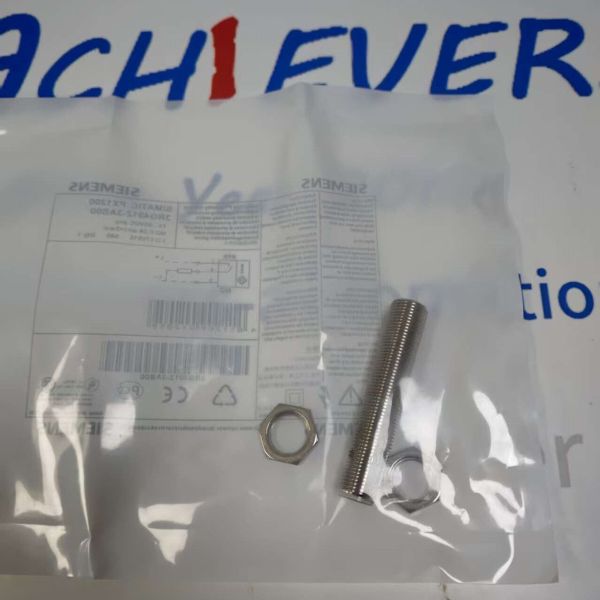

3RG4012-3AB00 | 8mm Flush Inductive Sensor, PNP NO, M12 Connector

3RG4012-3AB00 inductive proximity switch. M8×1 housing, 2mm flush range, PNP NO, 10-30V DC, M12 4-pin, IP67, -25 to +70°C, EN 60947-5-6.

Product Overview

The 3RG4012-3AB00 is a flush-mountable inductive proximity sensor from the SIRIUS 3RG4 series, designed for non-contact detection of ferrous metal objects in tight spaces. It features an M8×1 cylindrical brass housing, 2 mm switching distance (Sn) when flush-mounted, PNP Normally Open (NO) output, and an M12 4-pin connector. Powered by 10–30 V DC, it is suitable for position sensing on small actuators, indexing tables, and machine tools.

Technical Specifications (Electrical & Performance)

Parameter	Specification
Order Number	3RG4012-3AB00
Series	SIRIUS 3RG4 — Inductive Proximity Switches
Nominal Sensing Range (Sn)	2 mm (Flush Mountable — no reduction factor)
Safe Operating Distance (Sa)	0 … 1.62 mm
Output Type	PNP, Normally Open (NO)
Supply Voltage	10 … 30 V DC
Max. Switching Current	200 mA (DC-13)
Voltage Drop (at Rated I)	≤ 2 V
Switching Frequency	≤ 3000 Hz
Hysteresis	≤ 10 % of Sn
Repeat Accuracy	≤ 2 % of Sn

Technical Specifications (Mechanical & Environmental)

Parameter	Specification
Housing Thread / Size	M8 × 1 (Cylindrical)
Overall Length	~40 mm (typical for M8 prox sensor)
Active Face Material	PBT (Polybutylene Terephthalate)
Housing Material	Nickel-plated Brass (Shielded)
Connection	M12, 4-pin Plug Connector (Pinout per EN 60947-5-6 / IEC 60947-5-2)
Protection Rating	IP67 (EN 60529)
Operating Temperature	-25 … +70 °C
Short-Circuit / Reverse Protection	Yes (Integrated)
Standards	EN 60947-5-2, IEC 60947-5-6, CE, cULus

Key Features

Flush Mount in Metal: 2 mm range maintained even when installed flush in a metal bracket — no reduction factor, simplifying cutout design (∅8.2 mm hole).
High Switching Frequency: 3 kHz allows detection of fast-moving parts on high-speed conveyors or rotary indexing tables.
M12 Connector: Standardized 4-pin A-coded plug enables quick change-out and reduces wiring errors vs. cable-fixed sensors.
Rugged Brass Housing: Nickel-plated brass body resists mechanical impact and provides the shielding needed for flush-mount operation.

Applications

Cylinder Position Feedback: Detecting extended/retracted position of small pneumatic cylinders via a metal target on the rod or tie-rod.
Part Presence in Nest: Verifying a stamped or machined part is correctly seated in a fixture before clamping.
Index / Registration Mark: Sensing a ferrous tab on a rotating dial or cam for homing/sequence start.
Tight-Space Automation: Any application where an M12 or M18 sensor would be too large.

Note: For NPN output of the same M8 2mm flush sensor, see 3RG4013-3AB00. For cable version (2m PVC) instead of M12 plug, see 3RG4012-3JB00. The M12 4-pin mating connector (e.g., 3RX9501-0BA00 or generic A-coded M12 plug) must be ordered separately if not already on-site.
