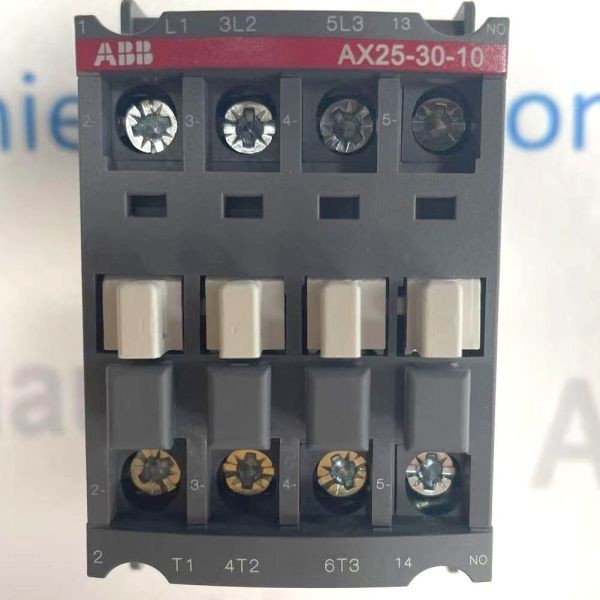

ABB AX25-30-10-80 | 25A 3-Pole AC Contactor, 220-230V AC Coil, 1NO Aux
ABB AX25-30-10-80 | 25A 3-Pole AC Contactor, 220-230V AC Coil, 1NO Aux
ABB AX25-30-10-80 | 25A 3-Pole AC Contactor, 220-230V AC Coil, 1NO Aux
ABB AX25-30-10-80 | 25A 3-Pole AC Contactor, 220-230V AC Coil, 1NO Aux
ABB AX25-30-10-80 | 25A 3-Pole AC Contactor, 220-230V AC Coil, 1NO Aux
ABB AX25-30-10-80 | 25A 3-Pole AC Contactor, 220-230V AC Coil, 1NO Aux
Specifications
Model Number :
AX25-30-10-80
Brand Name :
ABB
MOQ :
1
Delivery Time :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Ambient Temperature :
-
Supply Ability :
100pcs per month
Power Supply :
1
Price :
Negotiable
Electrical Rating :
G
Certification :
ATEX
Place of Origin :
CN
Packaging Details :
carton
Certifications :
S
Description
ABB AX25-30-10-80 | 25A 3-Pole AC Contactor, 220-230V AC Coil, 1NO Aux
ABB AX25-30-10-80 AC contactor. 25A (AC-3), 3 NO main contacts + 1 NO aux, 220-230V 50Hz / 230-240V 60Hz coil, screw terminals, DIN rail mount, IP20.

Product Overview

The ABB AX25-30-10-80​ is a 3-pole AC power contactor​ from the AX series, designed for switching motors, resistive heaters, and lighting loads in industrial control panels. It features 25A AC-3 rating (11 kW @ 400V), 3 normally-open main contacts, and 1 normally-open auxiliary contact (10-80 suffix: 1NO auxiliary, 220-230V 50Hz / 230-240V 60Hz coil). The contactor mounts on a 35mm DIN rail​ and uses screw clamp terminals​ for secure field wiring. It is a direct evolution of the classic A-series contactor with improved coil efficiency and wider temperature tolerance.

Technical Specifications (Electrical & Contacts)

Parameter
Specification
Catalog Number​
AX25-30-10-80​
Series​
ABB AX Series (Successor to AF / A-Line in many markets)
Poles (Main)​
3 NO (Normally Open)​
Rated Operational Current (Ie) AC-3​
25 A​ @ 400 V AC (50/60 Hz)
Motor Rating (AC-3)​
11 kW @ 400 V​ / 15 HP @ 480 V (Typical)
Rated Insulation Voltage (Ui)​
690 V AC
Rated Impulse Withstand (Uimp)​
6 kV
Auxiliary Contact​
1 NO (Form A)​ — Side-mounted / Integrated (depending on AX sub-variant)
Coil Voltage​
220–230 V AC (50 Hz) / 230–240 V AC (60 Hz)​
Coil Pick-Up / Drop-Out​
~0.85 Us / ~0.10–0.55 Us (Typical)
Electrical Life (AC-3)​
1.0 Million Operations (@ Rated Load)
Mechanical Life​
10 Million Operations

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Mounting​
35 mm DIN Rail (EN 60715)​ or Screw Mount (via rear holes)
Connection Type​
Screw Clamp Terminals​ (IP20 finger-safe shroud)
Operating Temperature​
-25 °C … +55 °C​ (Derated above +40 °C)
Storage Temperature​
-40 °C … +80 °C
Degree of Protection​
IP20​ (Front), IP00 (Terminals — with cover IP20)
Standards​
IEC 60947-4-1, EN 60947-4-1, UL 508, CSA C22.2 No.14
Weight (Approx.)​
0.45 kg
Compatible Accessories​
Top-mounted aux. blocks (CA5/CA7 series), surge suppressors (RC/absorbers), mechanical interlocks

Key Features

  • High Breaking Capacity:​ Rated for 25A AC-3 — suitable for direct-on-line (DOL) starting of 11kW/15HP motors at 400V/480V.
  • Integrated NO Auxiliary:​ Provides a dry contact for pilot lamp, PLC DI, or interlock — no separate block needed on this -10 variant.
  • Wide Coil Tolerance:​ Operates reliably across ±10% of nominal coil voltage; silent AC coil with minimum hum.
  • ABB Ecosystem Compatibility:​ Accepts standard ABB top-mount auxiliary contact blocks, interlocks (for star-delta pairs), and surge suppressors.

Applications

  • Motor Control:​ DOL or reversing starters for pumps, compressors, conveyors, and fans up to 11kW @ 400V.
  • Heating & Lighting:​ Switching resistive heater banks or large lighting loads (check AC-1 rating ~40A).
  • Panel Builder Standard:​ Widely used as a general-purpose 3-pole contactor in OEM and MCC panels.
  • Retrofit:​ Drop-in replacement for older ABB A26-30-10 contactors of similar frame size.
Note: The suffix "-80" denotes the coil voltage 220-230V 50Hz / 230-240V 60Hz AC. For 24V DC coil see AX25-30-10-01; for 110-120V AC see AX25-30-10-01 (region dependent — verify local catalog). Auxiliary contact blocks (CA5-10, CA5-01, CA7-10 etc.) can be added to the front/side if additional NO/NC contacts are needed beyond the built-in 1NO.
