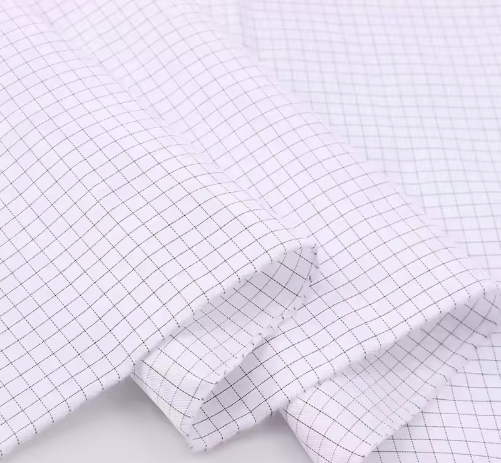

5mm Grid ESD Fabric, Polyester & Carbon Fiber Conductive Yarn, Anti-static Lint-free, with Cleanroom Coating
5mm Grid ESD Fabric, Polyester & Carbon Fiber Conductive Yarn, Anti-static Lint-free, with Cleanroom Coating
5mm Grid ESD Fabric, Polyester & Carbon Fiber Conductive Yarn, Anti-static Lint-free, with Cleanroom Coating
5mm Grid ESD Fabric, Polyester & Carbon Fiber Conductive Yarn, Anti-static Lint-free, with Cleanroom Coating
Specifications
Payment Terms :
T/T, D/A, D/P, T/T
ESD Reading :
10E5-10E9
Style :
Twill
Model Number :
GRID
Weight :
110g/m²
Delivery Time :
5-10work days
MOQ :
1500 Meters
feature :
dustproof,breathable,antistatic
Price :
USD(0.5-2)/M
Material :
Polyester+Conductive fiber
Brand Name :
ACE DELIXIN
uasage :
cleanroom workwear
Density :
165*80
Place of Origin :
China
Certification :
SGS
Supply Ability :
100000Meters
Packaging Details :
120-150Meters/Roll
Description

Anti-static Twill Fabric, 98% Polyester 2% Conductive Fiber, Wrinkle-resistant & Wear-resistant, for workwear in electronics industry

Material 98%polyester+2%conductive material

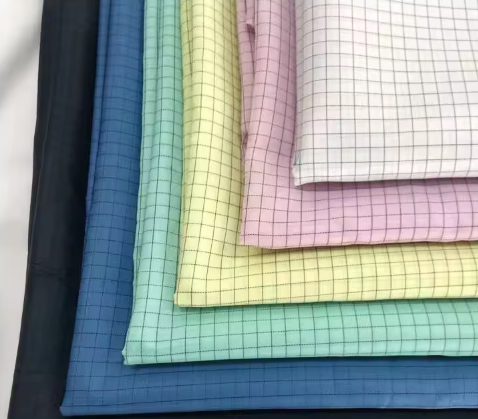

Color Yellow,black,pink,blue,green,white,black
Weight 115gsm
Carbon Configuration 5mm stripe
Feature Wear-resistant, generally waterproof
Surface Resistivity(ohm/unit) 10e5-10e9
Yarn Count Twill 1/2
Width 58/60"
Permeability to Water 55.00 to 60.00g/hr
Permeability to Air 4.5 to 5.0mL/s
Pack 150meters/roll
Recommended Class Of Cleanroom Class 100~10000
Usage ESD protection in clean rooms, work wear

Anti-static Chemical Resistant Fabric (FCRF)

Anti-static Chemical Resistant Fabric (FCRF) is ideal for cleanroom environments.
ECRF protects personnel from potential exposure to hazardous and harmful chemicals, while providing a particle-safe and ESD-safe working environment.
Features
Made with special sewing techniques, this anti-static fabric delivers outstanding anti-static and dust-proof performance. It features efficient and permanent static control and dust suppression, as well as being soft, thin, smooth, and semi-transparent in weave.
Applications
Woven from special polyester yarn and high-performance permanent conductive fibers using a specialized process.
It is used to produce dust-proof clothing, anti-static garments, and more.

Suitable for medical, pharmaceutical, food, precision instrument, aerospace, and other static-sensitive industries with high cleanliness requirements.
