SMD Tapes for SMD Components
SMD Tapes for SMD Components
SMD Tapes for SMD Components
SMD Tapes for SMD Components
Specifications
Brand Name :
ACE DELIXIN
Model Number :
AP-100-015
Certification :
SGS,ROHS
Place of Origin :
Shenzhen, CHINA
MOQ :
2000 Meters
Price :
Discussable
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
1000000pcs/month
Delivery Time :
5-8days
Packaging Details :
carton box packing
Color :
Black or clear
ESD Value :
10E5 or NO
Size :
Width 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Material :
PS/PC/PET
Cover tape :
Can provide
Reel :
Can Provide
Description

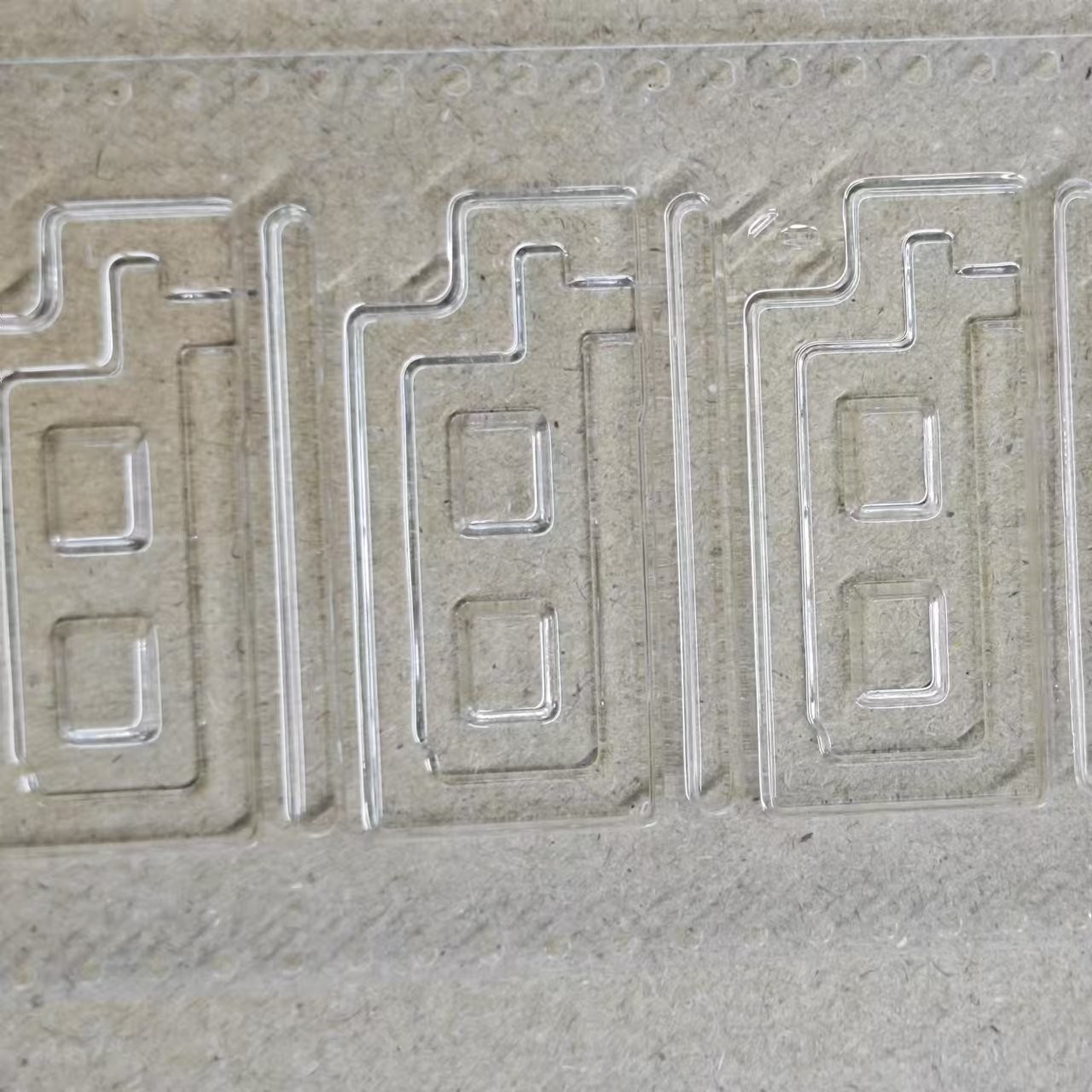

Carrier tape

8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.

Color:black/transparen

There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.

We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.

Cover tape

Environment-friendly antistatic material,including self-adhesion type and heat-sealing type.Self-adhesion type with two colors:transparent and tawny,heat-sealing type with other two colors:transparent and semi-transparent(spay),following is the matching table of cover tape and carrier tape:

Carrier tape (MM) 8 12 16 24 32 44 56 72 88
Cover Tape(MM) 5.4 9.3 13.3 21.3 25.5 37.5 49.5 65.5 81.5

Plastic reel

Environment-friendly PS anti-static materials,blue /black/white

Size:the diameter of disk,178mm,330mm,380mm,the diameter of axis:60mm,100mm,150mm,180mm,Width:8mm-72mm,and can be mixed according to requirement.

About our factory

Jindongli Intellingent Technology (SZ) Co., Ltd is a high-tech enterprise integrated with scientific research and design, manufacturing and sales services, main products including SMD peripheral devices (such as: semi-automatic taping packaging machine, automatic
