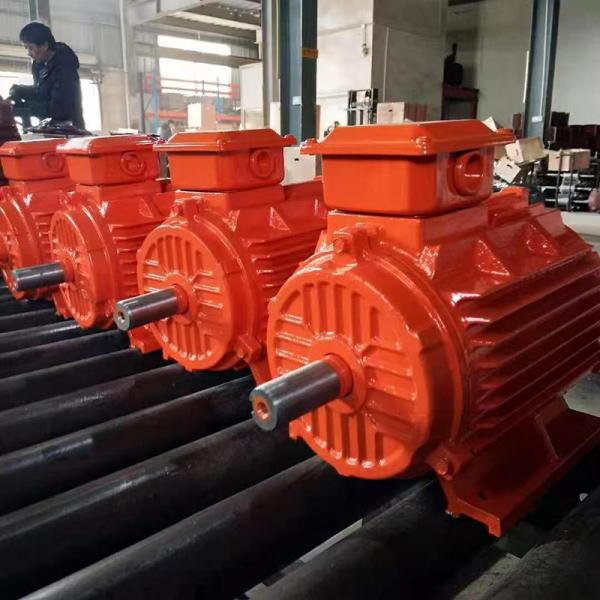

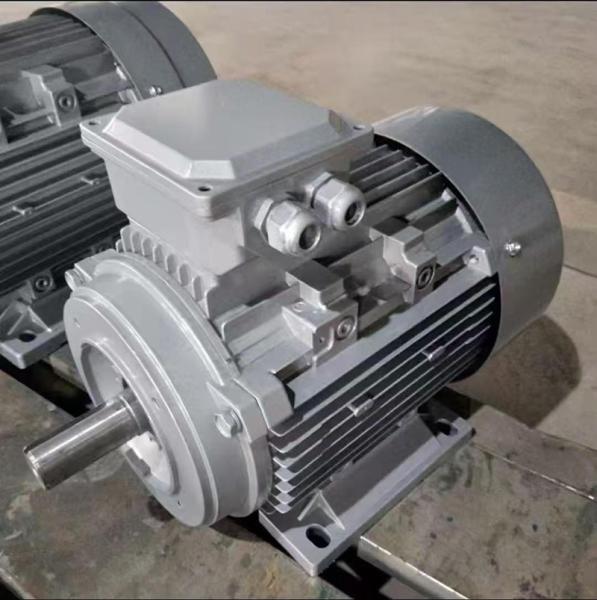

IE4 Three Phase AC Motor 0.75kw-315kw High Efficiency AC Motor 1000rpm 1500rpm 3000rpm
IE4 Three Phase AC Motor 0.75kw-315kw High Efficiency AC Motor 1000rpm 1500rpm 3000rpm
IE4 Three Phase AC Motor 0.75kw-315kw High Efficiency AC Motor 1000rpm 1500rpm 3000rpm
IE4 Three Phase AC Motor 0.75kw-315kw High Efficiency AC Motor 1000rpm 1500rpm 3000rpm
IE4 Three Phase AC Motor 0.75kw-315kw High Efficiency AC Motor 1000rpm 1500rpm 3000rpm
IE4 Three Phase AC Motor 0.75kw-315kw High Efficiency AC Motor 1000rpm 1500rpm 3000rpm
Specifications
Brand Name :
BM
Model Number :
YE4-355
Certification :
CE
Place of Origin :
China
MOQ :
10 pcs
Price :
USD38-USD680
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
Usually within 30 days
Packaging Details :
Cartons/Pallet
Name :
Three Phase AC Motor
No. of poles :
8 Pole
Mounting Type :
B3 B5
Frequency :
50Hz
Frame size :
80-355
Power :
0.75~375kW
Description

Good Quality IE4 Three Phase Ac Motor 0.75kw 7.5kw 15kw 22kw 30kw 90kw 110kw 200kw 250kw 315kw High Efficiency AC Motor

The YE4 series motor have large starting torque, low noise , small vibration, high degree of protection, large margin of
temperature rise, safe and reliable operation, ect.

It can drive machine tools , fans, pumps , compressors, mixers, packaging machinery, construction machinery and other mechanical
transmission equipment , widely used in industries such as agriculture, national defense, chemical industry, petroleum ,
transportation, food and beverages, medicine and other fields.

Rated Voltage: 380V,415V,or customerized.
Rated Frequency: 50Hz or 60Hz
Protection Level: IP55

Cooling Method: IC411
Insulation Class: F
Operation Mode: S1
Altitude: ≤ 1000M
Ambient Temperature: -15℃~+40℃

Output power range
0.75kw-315kw
Speed
1000rpm/1500rpm/3000rpm
rated voltage
220/380V,230/400V,380V/660V,400/690V
Rated frequency
50hz,60hz
Insulation class
class F or H
Protection class
IP54/IP55
Housing Material
Aluminum/cast iron
Frame size
80mm-355mm

IE4 Three Phase AC Motor 0.75kw-315kw High Efficiency AC Motor 1000rpm 1500rpm 3000rpmIE4 Three Phase AC Motor 0.75kw-315kw High Efficiency AC Motor 1000rpm 1500rpm 3000rpm

IE4 Three Phase AC Motor 0.75kw-315kw High Efficiency AC Motor 1000rpm 1500rpm 3000rpm

IE4 Three Phase AC Motor 0.75kw-315kw High Efficiency AC Motor 1000rpm 1500rpm 3000rpm

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
