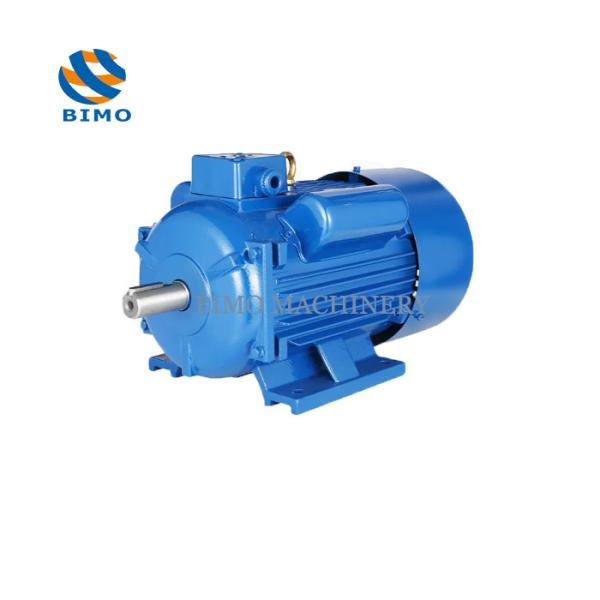

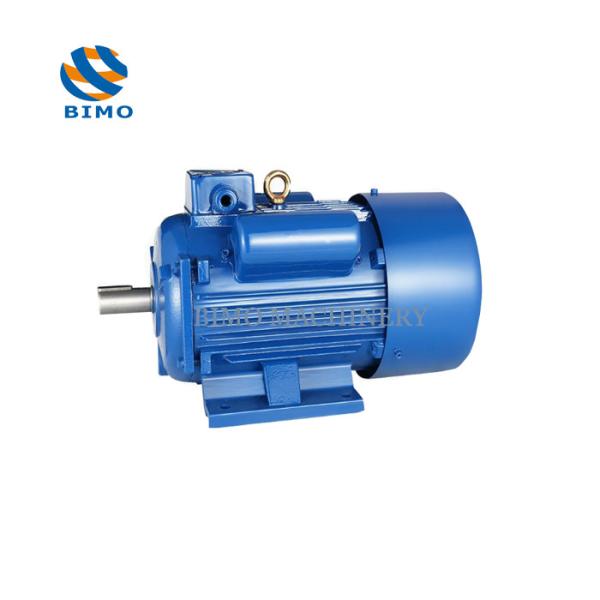

YC80B-2 0.55kw 0.75HP 110V 220V Single Phase Electric Motor For Air Compressor
YC80B-2 0.55kw 0.75HP 110V 220V Single Phase Electric Motor For Air Compressor
YC80B-2 0.55kw 0.75HP 110V 220V Single Phase Electric Motor For Air Compressor
YC80B-2 0.55kw 0.75HP 110V 220V Single Phase Electric Motor For Air Compressor
YC80B-2 0.55kw 0.75HP 110V 220V Single Phase Electric Motor For Air Compressor
YC80B-2 0.55kw 0.75HP 110V 220V Single Phase Electric Motor For Air Compressor
YC80B-2 0.55kw 0.75HP 110V 220V Single Phase Electric Motor For Air Compressor
YC80B-2 0.55kw 0.75HP 110V 220V Single Phase Electric Motor For Air Compressor
Specifications
Brand Name :
BM
Model Number :
YC 80B-2
Certification :
CE
Place of Origin :
China
MOQ :
10PCS
Price :
USD35-USD120
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
25 days
Packaging Details :
Cartons/Pallets
Name :
Air compressor motor
Protect Feature :
IP54
Frequency :
50/60Hz
Efficiency :
IE2
Voltage :
115/230,220V
Power :
0.55kw
Description

YC80B-2 0.55kw 0.75HP 110/220V Single Phase Electric Motor for Air Compressor, Pump and other Equipment

1, YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.


2, The series motor features by high start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.

Model Power Current Power Factor Eff Speed
(A) (cos垄) (%) (r/min) locked torque locked current Tmax/
Rated torque Rated current Tn
Hp kW Tst/Tn Ist/In
YC7112 1/4 0.18 1.89 0.72 60 2800 3 7 1.8
YC7122 1/3 0.25 2.4 0.74 64 2800 3 7 1.8
YC8012 1/2 0.37 3.4 0.77 65 2800 2.8 6.5 1.8
YC8022 3/4 0.55 4.7 0.79 68 2800 2.8 6.5 1.8
YC90S-2 1 0.75 6.1 0.8 70 2800 3 6.5 1.8
YC90L-2 1.5 1.1 8.7 0.8 72 2800 2.5 7 1.8
YC90L-2 2 1.5 11.4 0.81 74 2800 2.5 7 1.8
YC100L-2 3 2.2 16.5 0.81 75 2800 2.2 7 1.8
YC100L1-2 4 3 21.88 0.82 76 2800 2.2 6.8 1.8
YC100L-2 5 3.7 26.64 0.82 77 2800 2.2 6.4 1.8
YC112M-2 4 3 21.4 0.82 76 2800 2.2 7 1.8
YC7114 1/6 0.12 1.88 0.58 50 1400 3 9 1.8
YC7124 1/4 0.18 2.49 0.62 53 1400 2.8 7 1.8
YC8014 1/3 0.25 3.11 0.63 58 1400 2.8 6 1.8
YC8024 1/2 0.37 4.24 0.64 62 1400 2.5 6 1.8
YC90S-4 3/4 0.55 5.5 0.69 66 1400 2.5 6 1.8
YC90L-4 1 0.75 6.9 0.73 68 1400 2.5 6.5 1.8
YC90L-4 1.5 1.1 9.6 0.74 71 1400 2.5 6.5 1.8
YC100L-4 2 1.5 12.5 0.75 73 1400 2.5 6.5 1.8
YC112M-4 3 2.2 17.8 0.76 74 1400 2.2 6.5 1.8
YC132S-4 4 3 23.6 0.77 75 1400 2.1 6.5 1.8
YC132S-4 5 3.7 28 0.79 76 1400 2.1 6.5 1.8
YC132M-4 7.5 5.5 32.5 0.95 81 1400 2.1 6.5 1.8

YC80B-2 0.55kw 0.75HP 110V 220V Single Phase Electric Motor For Air Compressor

YC80B-2 0.55kw 0.75HP 110V 220V Single Phase Electric Motor For Air Compressor

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
