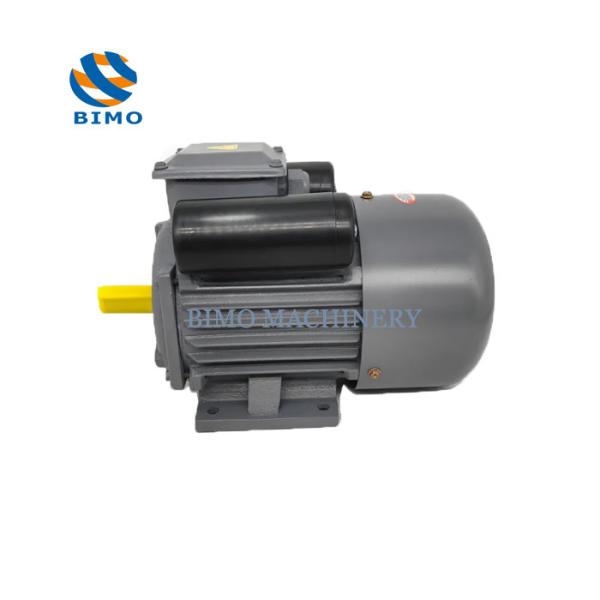

YC YL Single Phase Motor 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kw
YC YL Single Phase Motor 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kw
YC YL Single Phase Motor 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kw
YC YL Single Phase Motor 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kw
YC YL Single Phase Motor 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kw
YC YL Single Phase Motor 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kw
Specifications
Brand Name :
BM
Model Number :
YC 80B-2
Certification :
CE
Place of Origin :
China
MOQ :
10PCS
Price :
USD35-USD120
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
25 days
Packaging Details :
Cartons/Pallets
Name :
Single phase motor
Protect Feature :
IP54 IP55
Frequency :
50/60Hz
Efficiency :
IE2
Voltage :
115/230,220V
Power :
0.18kw-0.55kw
Description

YC YL 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kw Single Phase AC Asynchronous Hot Sale Electrical Electric Motor

1, YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.


2, The series motor features by high start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.

3, YL series single-phase dual-capacitor asynchronous motor is designed and manufactured in according with national standard, newly developed by our company with low noise, compact construction, light weight, easy maintenance etc.

4, These motors are widely used on air compressors, pumps, fans, refrigerator, medical instruments, small-size machine etc. especially for occasion where only single-phase power supply is available

Model Power Current Power Factor Eff Speed
(A) (cos垄) (%) (r/min) locked torque locked current Tmax/
Rated torque Rated current Tn
Hp kW Tst/Tn Ist/In
YC7112 1/4 0.18 1.89 0.72 60 2800 3 7 1.8
YC7122 1/3 0.25 2.4 0.74 64 2800 3 7 1.8
YC8012 1/2 0.37 3.4 0.77 65 2800 2.8 6.5 1.8
YC8022 3/4 0.55 4.7 0.79 68 2800 2.8 6.5 1.8
YC90S-2 1 0.75 6.1 0.8 70 2800 3 6.5 1.8
YC90L-2 1.5 1.1 8.7 0.8 72 2800 2.5 7 1.8
YC90L-2 2 1.5 11.4 0.81 74 2800 2.5 7 1.8
YC100L-2 3 2.2 16.5 0.81 75 2800 2.2 7 1.8
YC100L1-2 4 3 21.88 0.82 76 2800 2.2 6.8 1.8
YC100L-2 5 3.7 26.64 0.82 77 2800 2.2 6.4 1.8
YC112M-2 4 3 21.4 0.82 76 2800 2.2 7 1.8
YC7114 1/6 0.12 1.88 0.58 50 1400 3 9 1.8
YC7124 1/4 0.18 2.49 0.62 53 1400 2.8 7 1.8
YC8014 1/3 0.25 3.11 0.63 58 1400 2.8 6 1.8
YC8024 1/2 0.37 4.24 0.64 62 1400 2.5 6 1.8
YC90S-4 3/4 0.55 5.5 0.69 66 1400 2.5 6 1.8
YC90L-4 1 0.75 6.9 0.73 68 1400 2.5 6.5 1.8
YC90L-4 1.5 1.1 9.6 0.74 71 1400 2.5 6.5 1.8
YC100L-4 2 1.5 12.5 0.75 73 1400 2.5 6.5 1.8
YC112M-4 3 2.2 17.8 0.76 74 1400 2.2 6.5 1.8
YC132S-4 4 3 23.6 0.77 75 1400 2.1 6.5 1.8
YC132S-4 5 3.7 28 0.79 76 1400 2.1 6.5 1.8
YC132M-4 7.5 5.5 32.5 0.95 81 1400 2.1 6.5 1.8

YC YL Single Phase Motor 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kwYC YL Single Phase Motor 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kwYC YL Single Phase Motor 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kw

YC YL Single Phase Motor 220V 380V ML Ms Copper 2 Pole 4 Pole 2.2kw 1.5kw 1.1kw 0.75kw 3kw

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
