Specifications
Brand Name :
BIMO
Model Number :
Yej Series
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
25days
Packaging Details :
Cartons
Frequency :
50HZ/60HZ
Protect Feature :
IP55
Phase :
Three-phase
Rated Power :
0.12KW-22KW
Poles :
2/4/6/8
Center height :
63-355mm
Description

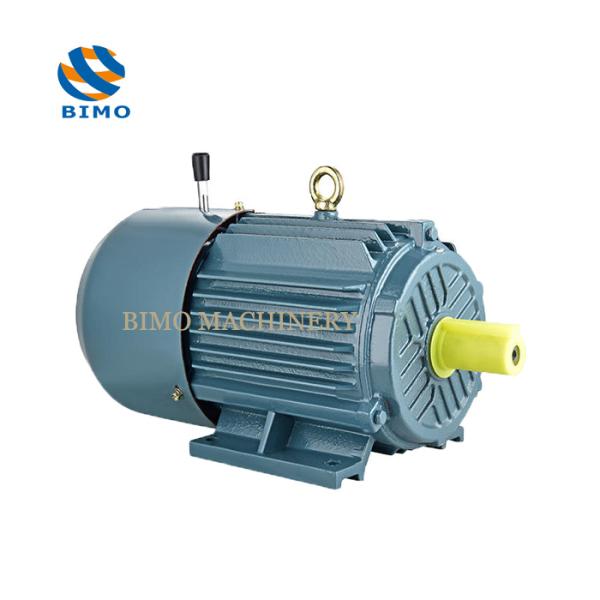

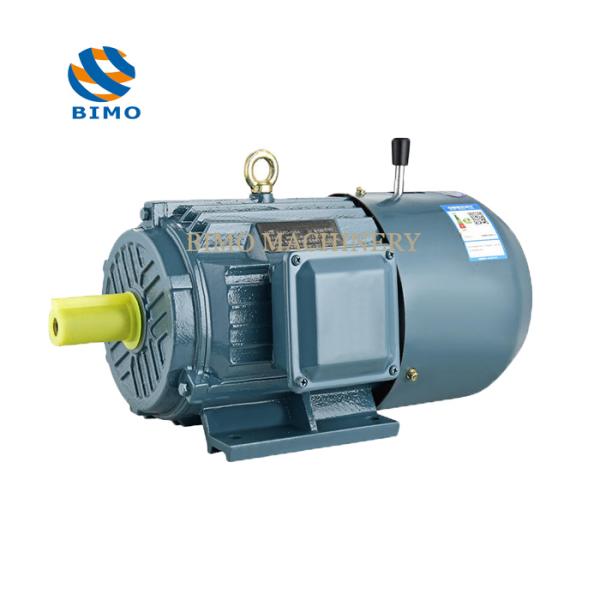

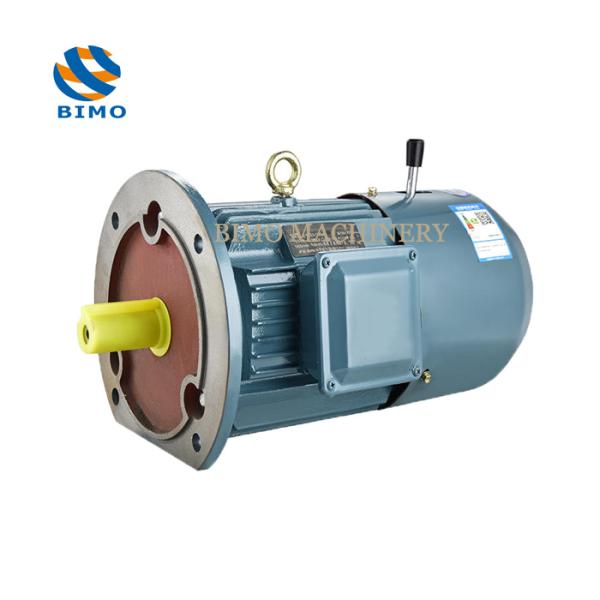

Hot Quality Electromagnet Brake Motor Three phase Asynchronous Explosion-proof Motor Electric Ac Induction Motor for Elevator

1,The electromagnetic brake motor is commonly used in applications that require precise motion control, safe parking, or emergency stops. Examples include elevators, electric vehicles, and mechanical transmission systems.

2, Advantages: Electromagnetic brake motors offer rapid response, adjustable braking force, and a long lifespan. Additionally, they contribute to enhancing the safety and reliability of systems.
Technical data-YEJ series motor-2 poles -380v/50HZ
type Rated output Full Load Static braking torque Max.braking time at No-load

Brake power
Speed Input Current Efficiency PowTypeer factor
KW HP RPM Amp Eff.% P.F N.m S

W
YEJ132S1-2 5.5 7.5 2900 11.10 85.5 0.88 75 0.25 130
YEJ132S2-2 7.5 10.0 2900 15.00 86.2 0.88 75 0.25 130
YEJ160M1-2 11 15 2930 21.80 87.2 0.88 150 0.35 150
YEJ160M2-2 15 20 2930 29.40 88.2 0.88 150 0.35 150
YEJ160L-2 18.5 25 2930 35.50 89.0 0.89 150 0.35 150
YEJ180M-2 22 30 2940 42.20 89.0 0.89 200
