YKK Series 400V 6000V High Voltage Electric Motor
YKK Series 400V 6000V High Voltage Electric Motor
YKK Series 400V 6000V High Voltage Electric Motor
YKK Series 400V 6000V High Voltage Electric Motor
YKK Series 400V 6000V High Voltage Electric Motor
YKK Series 400V 6000V High Voltage Electric Motor
YKK Series 400V 6000V High Voltage Electric Motor
YKK Series 400V 6000V High Voltage Electric Motor
Specifications
Brand Name :
BM
Model Number :
YKK560-2-800kW
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100PC per month
Delivery Time :
30 days
Packaging Details :
Wooden Case
Name :
400V Electric Motor
Speed :
3000 rpm
Frequency :
50 Hz
Motor Type :
AC Induction Motor
Voltage Rating :
400V
Power Rating :
800kw
Description

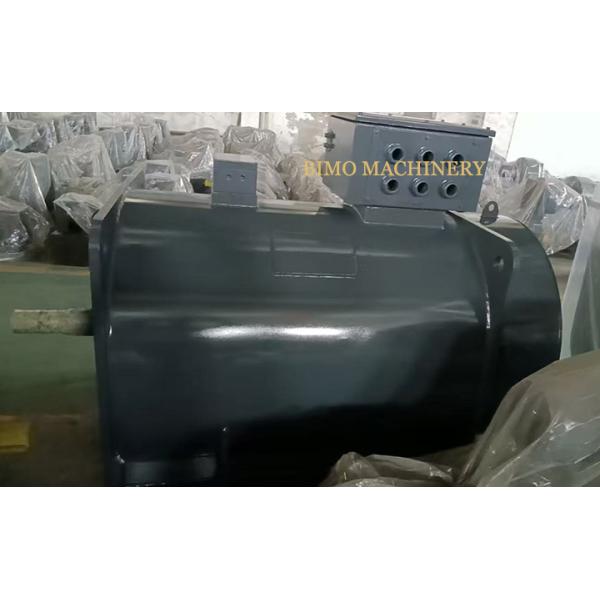

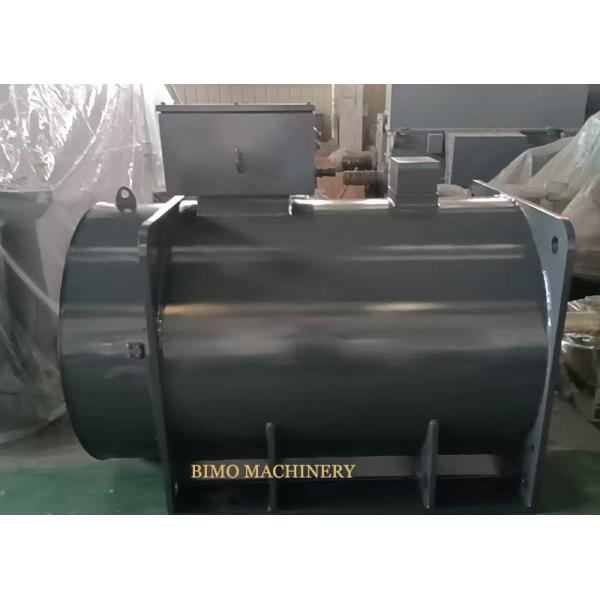

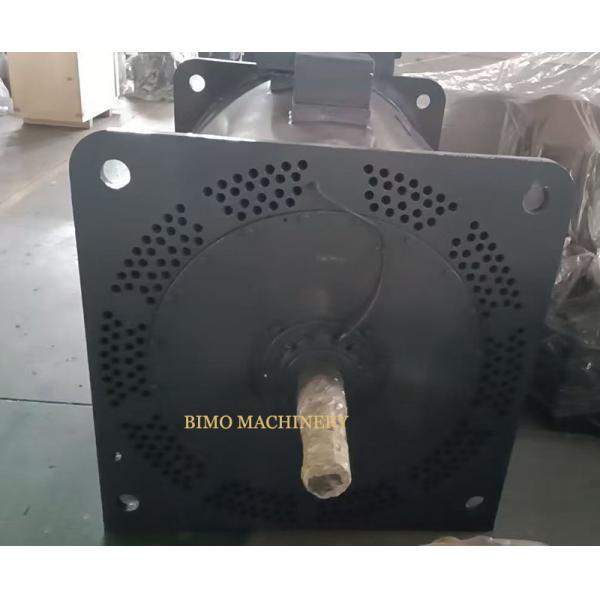

YKK Series 400V 6000V High Voltage Electric Motor

1, Three phase asynchronous motors generally adopt the following protection degree: IP23, IP44, IP54 and 1P24.

2, The motor with special climate protection symbol (for example, adding W, WF, F, etc.) is suitable for outdoor installation.

3, IEC34-6 rules specifies various cooling circuits and cooling method of rotating electric motors. usually adopts the following cooling methods.:IC01,IC11,IC21, IC31,1C37,IC81W, IC141,IC151,IC611.

TYPE
KK560-2
Rated Power
800kW
Speed
2983RPM
protection level
IP55
Rated Voltage
400V
Rated Current
1348A
Rated Frequency
50HZ
Efficiency
95.2%
Insulation Class

F
Cooling Method
IC51
Mounting Type
IMB3
Duty
S1
Max Torque Multiple

2.2
Power factor
cosφ0.9
otation Direction
CCW

YKK Series 400V 6000V High Voltage Electric MotorYKK Series 400V 6000V High Voltage Electric MotorYKK Series 400V 6000V High Voltage Electric Motor

YKK Series 400V 6000V High Voltage Electric Motor

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
