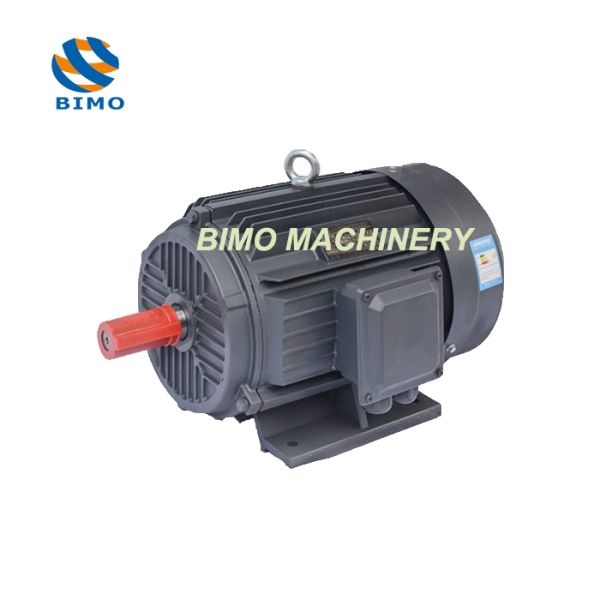

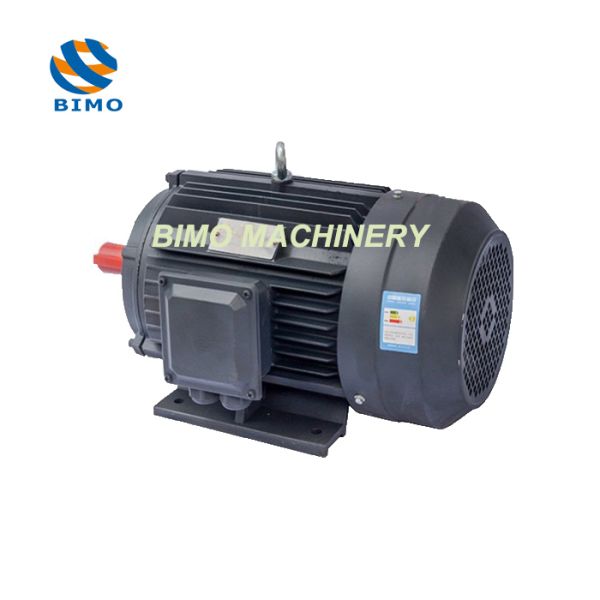

YD Series 0.35KW-82KW Pole-Changing Multi-Speed Three Phase Asynchronous Electric Motor
YD Series 0.35KW-82KW Pole-Changing Multi-Speed Three Phase Asynchronous Electric Motor
YD Series 0.35KW-82KW Pole-Changing Multi-Speed Three Phase Asynchronous Electric Motor
YD Series 0.35KW-82KW Pole-Changing Multi-Speed Three Phase Asynchronous Electric Motor
YD Series 0.35KW-82KW Pole-Changing Multi-Speed Three Phase Asynchronous Electric Motor
YD Series 0.35KW-82KW Pole-Changing Multi-Speed Three Phase Asynchronous Electric Motor
YD Series 0.35KW-82KW Pole-Changing Multi-Speed Three Phase Asynchronous Electric Motor
YD Series 0.35KW-82KW Pole-Changing Multi-Speed Three Phase Asynchronous Electric Motor
Specifications
Brand Name :
BiMo
Model Number :
YD100L2-4/2
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
USD100-USD5000
Payment Terms :
T/T
Delivery Time :
Within 30 dyas
Packaging Details :
Carton
Frame sizes :
H80-280
Rated power :
0.35KW-82KW; 0.5HP-110HP
Rated voltage :
380V or any voltage between 220-760V
Frequency :
50Hz, 60Hz
Protection Class :
IP55, IP54
Pole :
2, 4, 6, 8, 10, 12
Description

YD Series 0.35KW-82KW Pole-Changing Multi-Speed Three Phase Asynchronous Electric Motor

1, YD series designed according to IEC standard, are double speed, three speed and four speed motors, ac motors, induction motors.

2, The electric motorsare totally-enclosed fan-cooled squirrel-cage asynchronous three phase motors.T

3, he electric motor is mainly derived products of IE1 series motor. The electrical motor is connected by changing winding(change poles), achieve to obtain different output and speed, let motor match the mechanical equipment load.

4, The YD series pole-changing multi-speed three-phase asynchronous electric motor is a derived series of the Y series electric motor in China, with the advantages including: excellent performance, elegant shape, good interchangeability with the overseas similar products. Its protective grade is IP44.

1). Frame: 80 – 280 mm
2). Power: 0.35 – 82 kW
3). Voltage: 380 V , or Customized
4). Frequency: 50/60HZ
5). Shell: cast iron body, aluminum body
6). Pole: 2, 4, 6, 8, 10, 12
7). Protection degree: IP55, IP54
8). Insulation class: F
9). Cooling method: IC411
10). Duty Type: S1
11). Bearing: SKF/NSK
12). Efficiency Standard: EFF2, EFF1
13). Mounting arrangement: B3/B5/B14/B35/B34 or other
14). Certificates: CE, CCC, ISO9001, SGS and so on
15). Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Working Condition: ambient temperature is -15oC to 40oC, and below 1000 meters above sea level

Model Synchronous Speed r / min Output kw Rated Current A Eff.% Power Factor Cosø Locked Rotor Current Locked Rotor Torque Max. Torque Weight kg
Full Load Current Full Load Torque Full Load Torque
YD80(1)-4/2 1500/3000 0.45/0.55 1.40/1.51 66/65 0.74/0.85 6.5/7 1.5/1.7 1.8 23
YD80(2)-4/2 1500/3000 0.55/0.75 1.66/2.03 68/66 0.74/0.85 6.5/7 1.6/1.8 1.8 25
YD90S-4/2 1500/3000 0.85/1.1 3.93/2.77 74/71 0.77/0.85 6.5/7 1.8/1.9 1.8 38
YD90L-4/2 1500/3000 1.3/1.8 3.33/4.41 76/73 0.78/0.85 6.5/7 1.8/2 1.8 38
YD100L1-4/2 1500/3000 2/2.4 4.81/5.58 78/76 0.81/0.86 6.5/7 1.0/1.9 1.8 44
YD100L2-4/2 1500/3000 2.4/3 5.56/5.91 79/77 0.83/0.89 6.5/7 1.6/1.7 1.8 48
YD11M-4/2 1500/3000 3.3/4 12.76/8.64 82/79 0.83/0.89 6.5/7 1.9/2 1.8 55
YD132S-4/2 1500/3000 4.5/5.5 9.81/11.89 83/79 0.84/0.89 6.5/7 1.7/1.8 1.8 80
YD132M-4/2 1500/3000 6.5/8 13.83/17.07 84/80 0.85/0.89 6.5/7 1.7/1.8 1.8 88
YD160M-4/2 1500/3000 9/11 18.49/22.90 87/82 0.85/0.89 6.5/7 1.6/1.8 1.8 155
YD160L-4/2 1500/3000 11/14 20.03/28.82 87/82 0.86/0.90 6.5/7 1.7/1.9 1.8 168
YD180M-4/2 1500/3000 15/18.5 29.43/36.74 89/85 0.87/0.90 6.5/7 1.8/1.9 1.8 210
YD180L-4/2 1500/3000 18.5/22 35.89/42.71 89/86 0.88/0.91 6.5/7 1.6/1.8 1.8 290
YD200L-4/2 1500/3000 26/30 49.87/58.29 89/85 0.89/0.92 6.5/7 1.4/1.6 1.8 305
YD225S-4/2 1500/3000 32/37 60.70/71.05 90/86 0.89/0.92 6.5/7 1.4/1.6 1.8 360
YD225M-4/2 1500/3000 37/45 69.41/86.41 91/86 0.89/0.92 6.5/7 1.6/1.6 1.8 380
YD250M-4/2 1500/3000 45/52 84.42/98.70 91/87 0.89/0.92 6.5/7 1.6/1.6 1.8 450
YD280S-4/2 1500/3000 60/72 111.31/135.12 91/88 0.90/0.92 6.5/7 1.4/1.5 1.8 640
YD280M-4/2 1500/3000 72/82 133.57/152.23 91/88 0.90/0.93 6.5/7 1.4/1.5 1.8 710
YD90S-6/4 1000/1500 0.65/0.85 2.27/2.34 64/70 0.68/0.79 6/6.5 1.6/1.4 1.8 24
YD90L-6/4 1000/1500 0.85/1.1 2.80/2.98 66/71 0.70/0.70 6/6.5 1.6/1.5 1.8 38
YD100L1-6/4 1000/1500 1.3/1.8 3.81/4.44 74/77 0.70/0.80 6/6.5 1.7/1.4 1.8 43
YD100L2-6/4 1000/1500 1.5/2.2 4.34/5.43 75/77 0.70/0.80 6/6.5 1.6/1.4 1.8 48
YD112M-6/4 1000/1500 2.2/2.8 5.71/6.74 78/77 0.75/0.82 6/6.5 1.8/1.5 1.8 58
YD132S-6/4 1000/1500 3/4 7.70/9.50 79/78 0.75/0.82 6/6.5 1.8/1.7 1.8 80
YD132M-6/4 1000/1500 4/5.5 9.75/12.29 82/80 0.76/0.85 6/6.5 1.6/1.4 1.8 95
YD160M-6/4 1000/1500 6.5/8 15.07/17.60 84/82 0.78/0.84 6/6.5 1.5/1.5 1.8 148
YD160L-6/4 1000/1500 9/11 19.92/23.96 85/83 0.78/0.85 6/6.5 1.6/1.7 1.8 166
YD180M-6/4 1000/1500 11/14 25.87/29.79 85/84 0.76/0.85 6/6.5 1.6/1.7 1.8 210
YD180L-6/4 1000/1500 13/16 29.44/33.65 86/85 0.78/0.85 6/6.5 1.7/1.7 1.8 234
YD200L-6/4 1000/1500 18.5/22 41.42/44.93 87/86.5 0.78/0.86 6/6.5 1.6/1.5 1.8 320
YD225S-6/5 1000/1500 22/28 44.17/56.53 88/86.5 0.86/0.87 6/6.5 1.8/1.8 1.8 360
YD225M-6/4 1000/1500 26/32 52.20/63.18 88/86.5 0.86/0.90 6/6.5 1.8/1.8 1.8 388
YD250M-6/4 1000/1500 32/42 62.09/81.07 90/86.5 0.87/0.91 6/6.5 1.5/1.3 1.8 530
YD280S-6/4 1000/1500 42/55 81.50/106.72 90/87 0.87/0.90 6/6.5 1.5/1.3 1.8 650
YD280M-6/4 1000/1500 55/67 106.72/131.74 90/87 0.87/0.89 6/6.5 1.6/1.3 1.8 760
YD90L-8/4 750/1500 0.45/0.75 1.87/1.82 58/72 0.63/0.87 5.5/6.5 1.6/1.4 1.8 34
YD100L-8/4 750/1500 0.85/1.5 3.06/3.50 67/74 0.63/0.88 5.5/6.5 1.6/1.4 1.8 43
YD112M-8/4 750/1500 1.5/2.4 5.02/5.31 72/78 0.63/0.88 5.5/6.5 1.7/1.7 1.8 55
YD132S-8/4 750/1500 2.2/2.3 6.96/7.12 75/80 0.64/0.// 5.5/6.5 1.5/1.7 1.8 85
YD132M-8/4 750/1500 3/4.5 8.99/9.37 78/82 0.65/0.89 5.5/6.5 1.5/1.6 1.8 100
YD160M-8/4 750/1500 5/7.5 13.87/15.24 83/84 0.66/0.89 5.5/6.5 1.5/1.6 1.8 145
YD160L-8/4 750/1500 7/11 18.96/21.78 85/86 0.66/0.89 5.5/6.5 1.5/1.6 1.8 170
YD180L-8/4 750/1500 11/17 26.68/32.25 87/88 0.72/091 6/7 1.5/1.5 1.8 250
YD200L1-8/4 750/1500 14/22 33.04/41.29 87/88 0.74/0.92 6/7 1.8/1.7 1.8 300
YD200L2-8/4 750/1500 17/26 40.12/48.80 87/88 0.74/0.92 6/7 1.5/1.7 1.8 360
YD225M-8/4 750/1500 24/34 53.21/66.71 89/88 0.77/088 6/7 1.5/1.5 1.8 510
YD250M-8/4 750/1500 30/42 64.93/78.80 90/89 0.78/0.91 6/7 1.6/1.7 1.8 615
YD280S-8/4 750/1500 40/55 83.48/102.03 91/90 0.80/0.91 6/7 1.6/1.7 1.8 680
YD280M-8/4 750/1500 47/67 96.88/138.10 91/90 0.81/0.92 6/7 1.6/1.7 1.8 710
YD90S-8/6 750/1000 0.35/0.45 1.58/1.36 56/70 0.60/0.72 5/6 1.8/2 1.8 28
YD90L-8/6 750/1000 0.45/0.65 1.93/1.91 59/71 0.60/0.73 5/6 1.7/1.8 1.8 35
YD100L-8/6 750/1000 0.75/1.1 2.92/3.05 65/75 0.60/0.73 5/6 1.8/1.9 1.8 40
YD112M-8/6 750/1000 1.3/1.8 4.50/4.81 72/78 0.61/0.73 5/6 1.7/1.9 1.8 48
YD132S-8/6 750/1000 1.8/2.4 5.80/6.24 76/80 0.62/0.73 5/6 1.5/1.9 1.8 67
YD132M-8/6 750/1000 2.6/3.7 8.17/79.40 78/82 0.62/0.73 5/6 1.9/1.9 1.8 90
YD160M-8/6 750/1000 4.5/6 13.29/14.69 83/85 0.62/0.73 5/6 1.6/1.9 1.8 125
YD160L-8/6 750/1000 6/8 17.50/19.36 84/86 0.62/0.73 5/6 1.6/1.9 1.8 145
YD180M-8/6 750/1000 7.5/10 21.88/24.20 84/86 0.62/0.73 5/6 1.9/1.9 1.8 165
YD180L-8/6 750/1000 9/12 24.75/28.27 85/86 0.65/0.75 5/6 1.8/1.8 1.8 200
YD200L1-8/6 750/1000 12/17 32.62/39.06 86/87 0.65/0.76 5/6 1.8/2 1.8 275
YD200L2-8/6 750/1000 15/20 40.30/45.43 87/88 0.65/0.76 5/6 1.2/1.4 1.8 300
YD160M-12/6 500/1000 2.6/5 11.60/8.96 74/84 0.46/0.76 5/6 1.2/1.4 1.8 100
YD160L-12/6 500/1000 3.7/7 16.08/15.84 76/85 0.46/0.79 5/6 1.3/1.3 1.8 140
YD180L-12/6 500/1000 5.5/10 19.59/20.54 79/86 0.54/0.86 5/6 1.5/1.5 1.8 165
YD200L1-12/6 500/1000 7.5/13 24.52/26.40 83/87 0.56/0.86 5/6 1.5/1.5 1.8 210
YD200L2-12/6 500/1000 9/15 28.90/30.11 83/87 0.57/0.87 5/6 1.5/1.5 1.8 220
YD225M-12/6 500/1000 12/20 35.16/39.69 85/88 0.61/0.87 5/6 1.5/1.5 1.8 290
YD250M-12/6 500/1000 15/24 42.06/47.09 86/89 0.63/0.87 5/6 1.5/1.5 1.8 320
YD280S-12/6 500/1000 20/30 54.81/58.87 88/89 0.63/0.87 5/6 1.5/1.5 1.8 370
YD280M-12/6 500/1000 24/37 63.74/72.60 88/89 0.65/0.87 4/6 1.5/1.5 1.8 320
YD100L-6/4/2 1000/1500/3000 0.75/1.3/1.8 2.62/3.66/4.53 67/72/71 0.65/0.75/0.85 5.5/6/7 1.8/1.6/1.6 1.8/1.8/1.8 48
YD112M-6/4/2 1000/1500/3000 1.1/2/2.4 3.52/5.07/5.80 73/74/74 0.65/0.81/0.85 5.5/6/7 1.7/1.4/1.6 1.81.8/1.8/ 58
YD132S-6/4/2 1000/1500/3000 1.8/2.6/3 5.14/7.04/7.38 75/78/71 0.71/0.83/0.87 5.5/6/7 1.4/1.3/1.7 1.8/1.8/1.8 73
YD132M1-6/4/2 1000/1500/3000 2.2/3.3/4 6.03/7.46/8.79 77/80/76 0.72/0.84/0.91 5.5/6/7 1.3/1.3/1.7 1.8/1.8/1.8 78
YD132M2-6/4/2 1000/1500/3000 2.6/4/5 6.86/9.04/11.30 80/80/77 0.72/0.84/0.91 5.5/6/7 1.5/1.4/1.7 1.8/1.8/1.8 85
YD160M-6/4/2 1000/1500/3000 3.7/5/6 9.52/11.17/13.18 81/81/76 0.72/0.84/0.91 5.5/6/7 1.5/1.3/1.4 1.8/1.8/1.8 125
YD160L-6/4/2 1000/1500/3000 4.5/7/9 11.44/15.07/18.81 83/83/79 0.72/0.85/0.92 5.5/6/7 1.5/1.2/1.3 1.8/1.8/1.8
