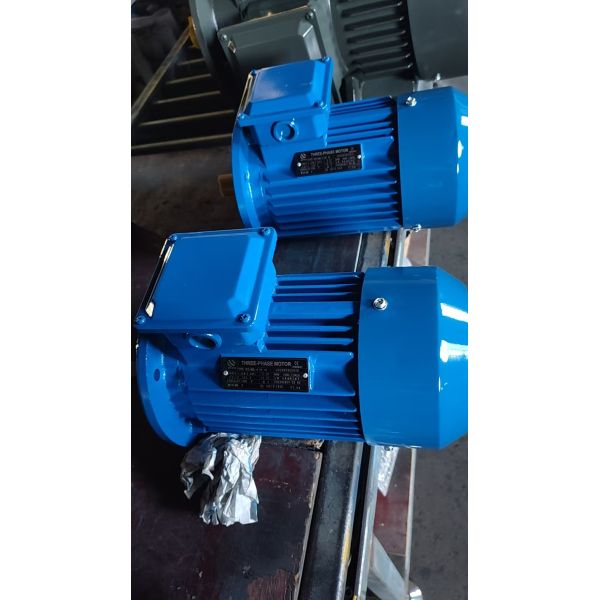

YE2-90L-4 380V 50/60Hz 1500Rpm 1.5KW 2HP 4Pole IE2 Efficiency Three-Phase Induction Motor Drip-proof Enclosed Foot Mount
YE2-90L-4 380V 50/60Hz 1500Rpm 1.5KW 2HP 4Pole IE2 Efficiency Three-Phase Induction Motor Drip-proof Enclosed Foot Mount
YE2-90L-4 380V 50/60Hz 1500Rpm 1.5KW 2HP 4Pole IE2 Efficiency Three-Phase Induction Motor Drip-proof Enclosed Foot Mount
YE2-90L-4 380V 50/60Hz 1500Rpm 1.5KW 2HP 4Pole IE2 Efficiency Three-Phase Induction Motor Drip-proof Enclosed Foot Mount
Specifications
Brand Name :
BM
Model Number :
YE2-90L-4
Certification :
CE
Place of Origin :
China
MOQ :
10 pcs
Price :
USD38-USD680
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
Usually within 30 days
Packaging Details :
Cartons/Pallet
Name :
IE2 AC motor
Voltage :
380V
Mounting Type :
B5
Frequency :
50Hz/60Hz
Enclosure :
IP55
Power :
1.5KW
Description

YE2-90L-4 380V 50/60Hz 1500Rpm 1.5KW 2HP 4Pole IE2 Efficiency Three-Phase Induction Motor Drip-proof Enclosed Foot Mount

  1. High efficiency, low energy consumption, stable running performance;
  2. Drip-proof enclosure, good dust and splash water resistance, suitable for normal factory environment;
  3. Foot mounting design, easy installation and maintenance;
  4. Low vibration, low noise, reliable continuous operation.

1. Basic Model & Type

  • Model: YE2-90L-4
  • Type: Three-Phase Induction Motor, Drip-proof, Foot-mounted (B3 installation)
  • Poles: 4 Pole

2. Electrical Data

  • Rated Power: 1.5 kW (2 HP)
  • Rated Voltage: 380 V
  • Frequency: 50 / 60 Hz
  • Efficiency Class: IE2 (IEC standard high efficiency)

3. Rotation Speed

  • Synchronous Speed: 1500 rpm

4. Mechanical & Structure

  • Frame size: 90L (center height:90mm)
  • Protection: Drip-proof enclosed
  • Mounting: Foot Mount (B3)

1,100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding

production of enameled wire,high thermal conductivity,good heat dissipation effect.

2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.

3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.

YE2-90L-4 380V 50/60Hz 1500Rpm 1.5KW 2HP 4Pole IE2 Efficiency Three-Phase Induction Motor Drip-proof Enclosed Foot Mount

YE2-90L-4 380V 50/60Hz 1500Rpm 1.5KW 2HP 4Pole IE2 Efficiency Three-Phase Induction Motor Drip-proof Enclosed Foot Mount

YE2-90L-4 380V 50/60Hz 1500Rpm 1.5KW 2HP 4Pole IE2 Efficiency Three-Phase Induction Motor Drip-proof Enclosed Foot Mount

YE2-90L-4 380V 50/60Hz 1500Rpm 1.5KW 2HP 4Pole IE2 Efficiency Three-Phase Induction Motor Drip-proof Enclosed Foot Mount

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
