JUTAI RVP42-7M 24GHz Industrial Doppler Radar Motion Sensor

Precision Vehicle & Pedestrian Detection for Industrial Doors, Gates & Access Control Systems​

Product Overview

Engineered for demanding industrial environments, the JUTAI RVP42-7M leverages 24.125GHz Doppler radar with advanced digital signal processing to deliver accurate detection of moving vehicles, pedestrians, and forklifts. Its intelligent filtering algorithms minimize false triggers, while an IP65-rated enclosure and wide temperature tolerance (-30℃ to +60℃) ensure reliability in outdoor, cold storage, and factory settings. Flexible configuration options make it ideal for automating doors, gates, and access points in logistics, manufacturing, and security applications.

Core Competitive Advantages

• Intelligent Target Discrimination: Achieves 95% accuracy in distinguishing vehicles and pedestrians using a planar Doppler radar module, supporting forward/backward/bidirectional movement detection and rejecting static interference.

• Ultra-Low False Alarms: Features 4-level lateral motion filtering (blocks sideways-moving targets) and 2-level electromagnetic interference suppression (counteracts fluorescent lights, motors, inverters), keeping false triggers under 1%.

• Rugged Industrial Design: IP65-sealed housing withstands dust, water, and extreme temperatures (-30℃ to +60℃) with 0–95% non-condensing humidity tolerance—perfect for harsh environments.

• Adaptable Configuration: 5 sensitivity levels, 0.2–5s relay hold times, 7 mounting height presets, and multiple detection modes enable tailored setups for diverse scenarios.

• Rapid & Stable Operation: Triggers in <50ms, offers NO/NC relay outputs, and uses 12–36V DC power (<100mA current) for long-term, energy-efficient performance.

Detailed Technical Specifications

Key Functional Highlights

1. Multi-Mode Detection & Direction Recognition: Supports 9 modes (e.g., vehicle/pedestrian forward/backward/bidirectional) to tailor triggering for specific targets and workflows.

2. Adjustable Lateral Filtering: Blocks sideways-moving pedestrians/vehicles (critical for roadside gates or factory entrances) to reduce false alarms.

3. Flexible Relay Control: Customize hold times (0.2–5s) or enable continuous/off output; choose NO/NC contacts to integrate with any door/gate controller.

4. Robust Interference Resistance: Activate anti-interference mode to counteract EM noise from motors, wireless systems, or lighting—ensuring stability in noisy industrial spaces.

5. Easy Installation & Maintenance: Includes a mounting bracket, 7m cable, and LED status indicator; supports factory reset for quick on-site debugging.

Performance vs. Traditional Sensors

Typical Applications

• Industrial Doors: Automate rolling/sliding/fast doors in factories to detect forklifts and workers.

• Cold Storage: Reliable operation at -30℃ to prevent cold air loss in freezer doors.

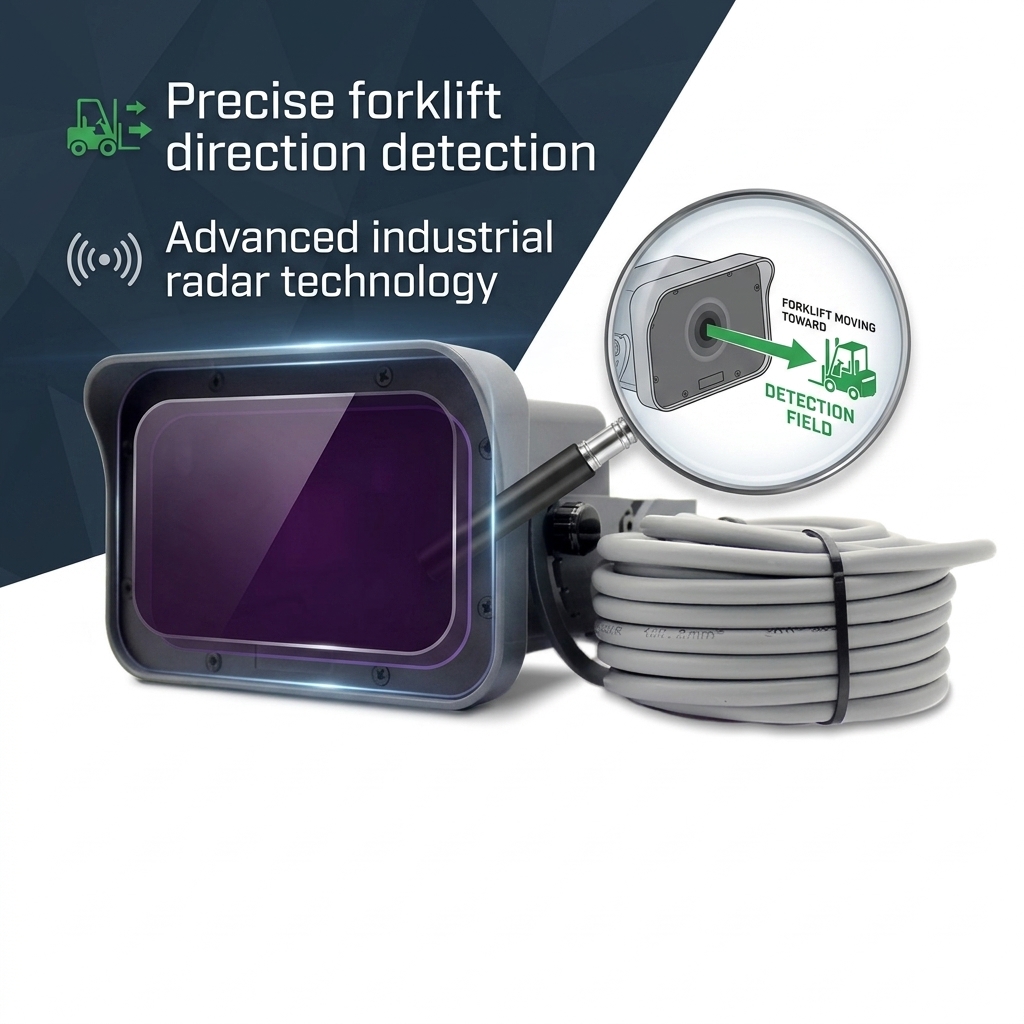

• Warehouse Docks: High-speed forklift detection and direction recognition for efficient loading/unloading.

• Parking Systems: Manage barriers/gates with vehicle/pedestrian counting and access control.

• Garage Doors: Enable auto-opening and anti-pinch protection for residential/commercial garages.

• Access Control: Integrate with community/office/factory gates for automated entry management.

Installation Guidelines

• Mount on a flat, stable surface (avoid vibration).

• Keep the detection area clear of swaying objects (banners, plants).

• Do not block the sensor’s front cover with metal (impairs radar performance).

• Avoid strong EM sources (fluorescent lights) or enable anti-interference mode.

• Select the correct mounting height preset (2–7m) for optimal detection.

Packaging & Support

• Standard Package: Sensor unit, mounting bracket, screws, 7m pre-wired cable, user manual.

• Customization: OEM/ODM packaging with branded logos/labels available.

• Warranty & Service: 2-year standard warranty (3-year extension optional); 48-hour email/24-hour hotline support; remote debugging; custom firmware development for unique needs.
