180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier
180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier
Specifications
Model Number :
IPS-20R
Detection Technology :
Infrared Through-Beam Detection
MOQ :
1
Delivery Time :
5 - 8 working days
Operating Distance :
30m
Price :
Negotiation
Output Contact :
N.O. / N.C. / COM Potential-Free Relay
Certification :
CE, FCC
Size :
113*46.79*47.72mm
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,Paypal
Place of Origin :
China
Power Consumption :
30mA @ 12V DC
Supply Ability :
1000 pieces per month
Brand Name :
JUTAI
Receiver Power :
12 - 24V AC 12 - 30V DC
Packaging Details :
Carton
Description
180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier
Product Overview

The IPS-20R is a professional infrared through-beam safety photocell designed for automatic gates, parking barriers, garage doors, industrial doors and access control systems.

Unlike conventional fixed-angle photocells, the IPS-20R features a 180° adjustable mounting structure, allowing the transmitter and receiver to be aligned more easily when installation surfaces are not directly facing each other.

This makes the sensor especially suitable for gate posts, walls, angled entrances and retrofit projects where conventional photocell alignment may be difficult.

180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier
Key Features
  • 180° Adjustable Installation: Flexible beam alignment for offset gate posts, angled walls, and various gate types
  • 20m Infrared Detection: Maximum detection range suitable for residential and commercial applications
  • IP66 Outdoor Protection: Weather-resistant housing for outdoor gate, parking and industrial environments
  • Fail-Safe Relay Output: N.O., N.C., and COM potential-free relay contacts for flexible integration

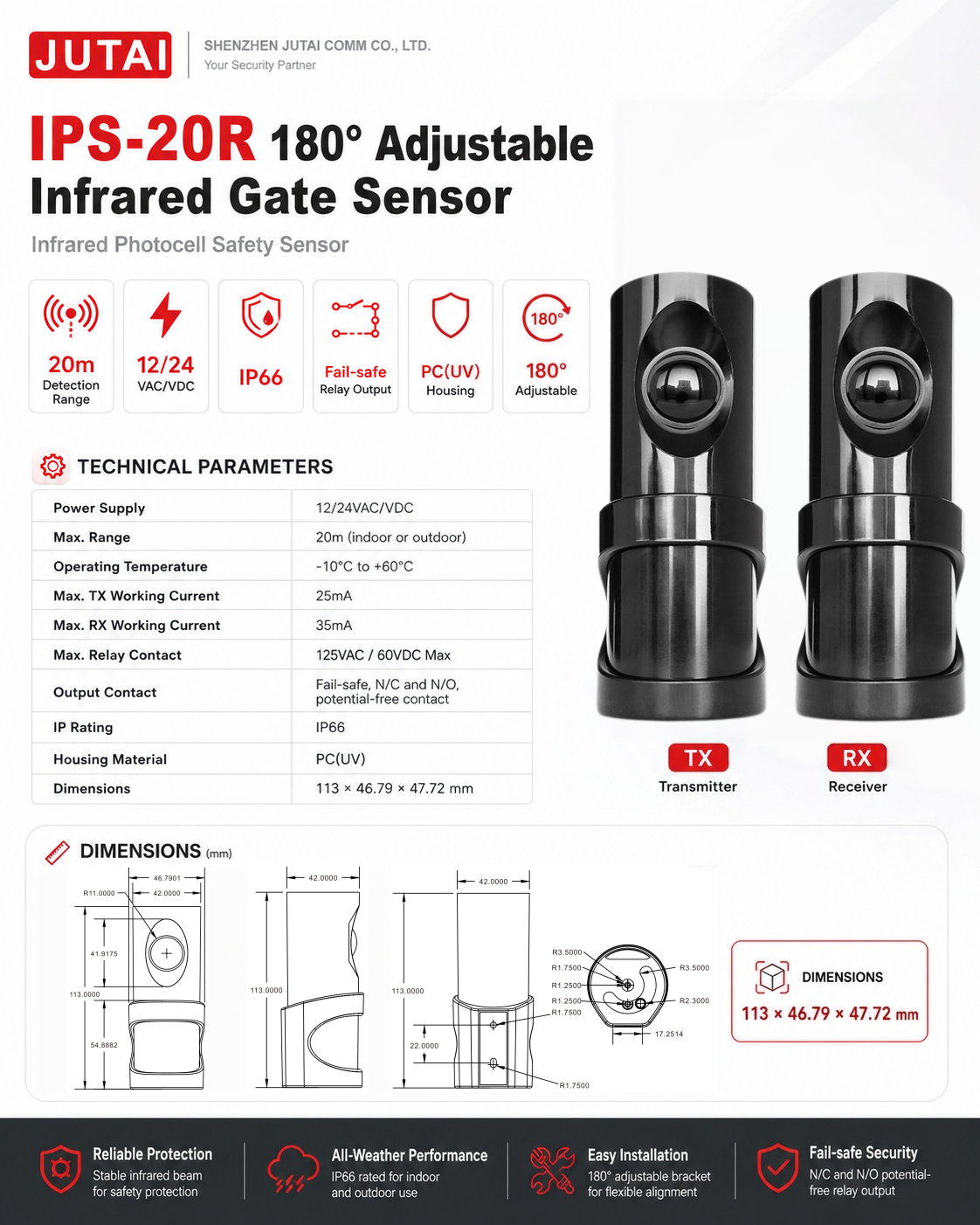

Technical Specifications
Parameter Specification
Model IPS-20R
Product Type Infrared Gate Safety Photocell
Detection Principle Infrared Through-Beam
Adjustable Angle 180°
Detection Distance Up to 20m
Power Supply 12/24VAC/VDC
Operating Temperature -10°C to +60°C
TX Working Current Max. 25mA
RX Working Current Max. 35mA
Relay Contact Max. 125VAC / 60VDC
Output N.O. / N.C. / COM Potential-Free Relay
Protection Rating IP66
Housing Material PC (UV)
Dimensions 113 * 46.79 * 47.72mm
Configuration TX + RX

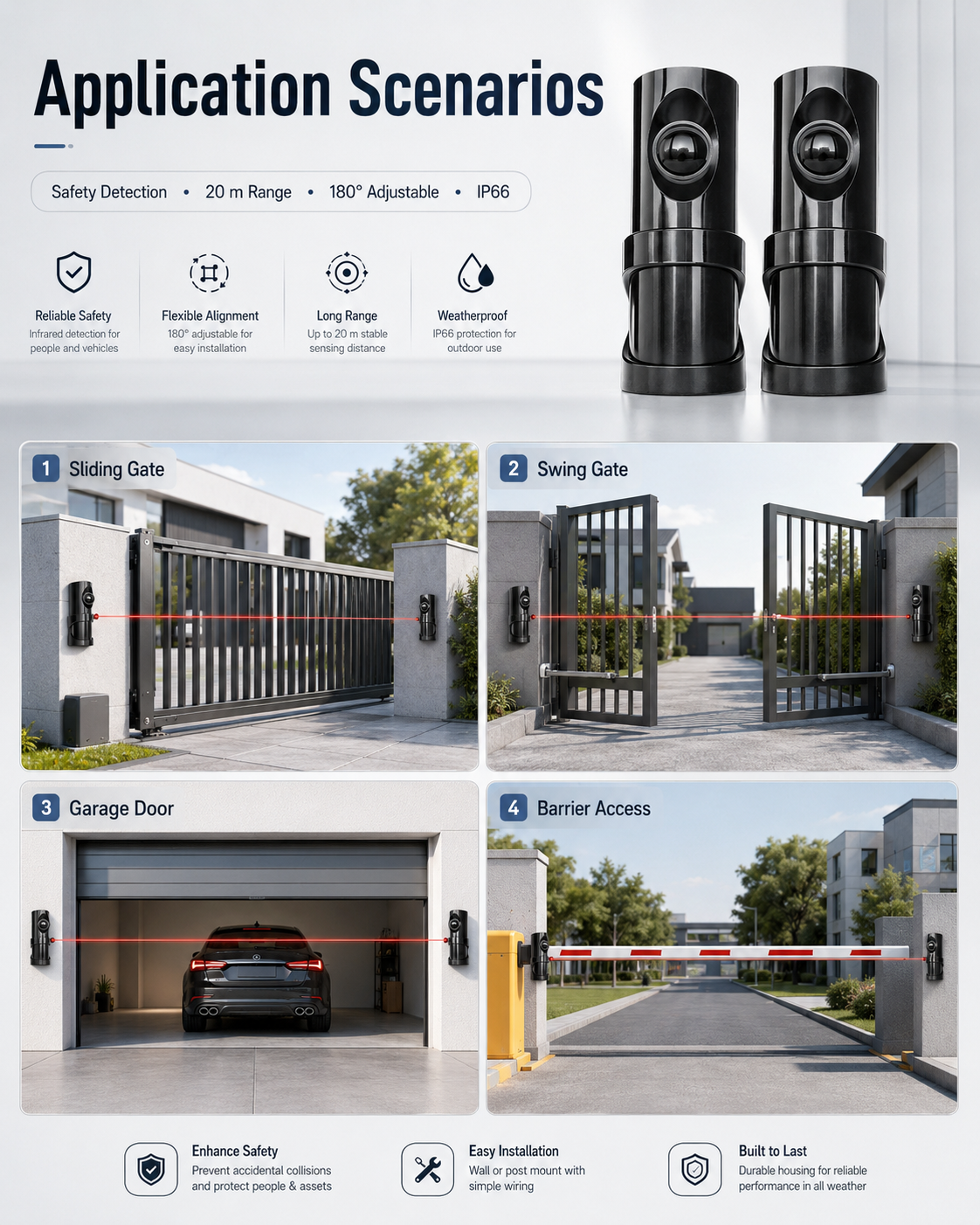

Applications
Automatic Sliding Gate
Swing Gate
Parking Barrier Gate
Garage Door
Industrial Door
Roller Shutter Door
Automatic Entrance Gate
Residential Gate Automation
Commercial Parking Entrance
Vehicle Access Control
Pedestrian Access Safety
Warehouse Entrance

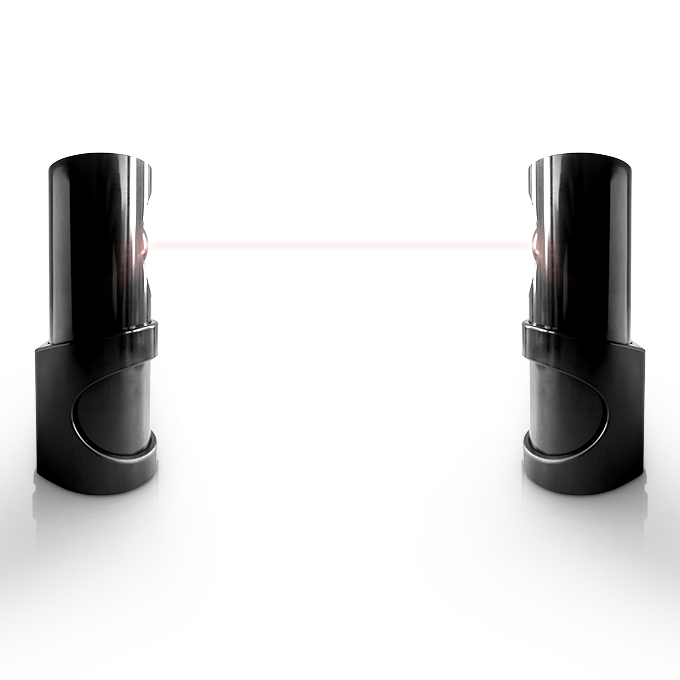

Product Images
180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier 180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier 180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier 180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier 180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier
Installation Instructions
180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier 180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier
Connection Diagram
180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier 180° Adjustable Gate Safety Photocell IPS-20R 20m Infrared Beam Sensor with NO NC Relay for Automatic Gate and Parking Barrier
