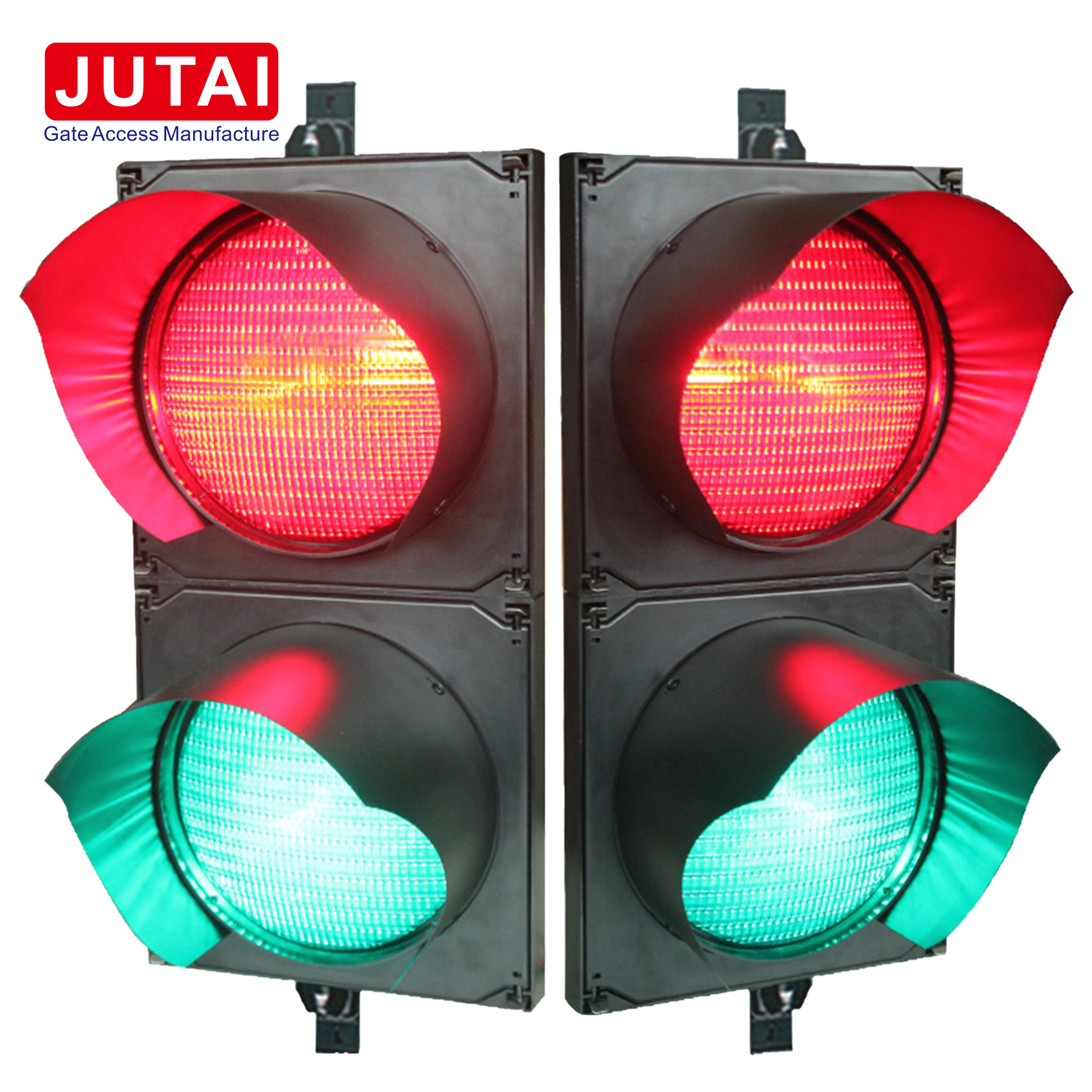

JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
Specifications
Housing Material :
UV-Stabilized Polycarbonate
Response Time :
under 75 ms
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,Paypal,Alipay
LED Technology :
High Flux LED
Model Number :
JD112HF-C
Input Voltage :
12-24V DC / 110-220V AC
Green Luminance :
>100 cd
MOQ :
1
Delivery Time :
5 - 8 working days
Signal Colors :
Red and Green
Price :
Negotiation
IP Level :
IP65
Certification :
CE
Signal Diameter :
100mm / 4 Inch
Place of Origin :
China
Red Luminance :
>100 cd
Power Factor :
>0.9
Supply Ability :
1000 pieces per month
Operating Temperature :
-40°C to +60°C
Brand Name :
JUTAI
Power Consumption :
<5W per module
Packaging Details :
Carton
Description
100mm LED Red Green Traffic Light IP65 for Parking Lot Entrance Exit Barrier Gate and Vehicle Management System
Product Overview

JUTAI JD112HF-C is a 100mm red and green LED traffic indicator designed for parking barrier gates, vehicle entrances, access control lanes and traffic warning applications. It combines high-brightness LED signal modules with a UV-stabilized polycarbonate housing and IP65 protection for reliable outdoor operation.

Key Features
  • 100mm Red + Green LED Signal Modules
  • High Luminance: more than 100 cd for both red and green modules
  • IP65 Protection: suitable for outdoor parking and gate applications
  • Wide Power Options: 12-24V DC or 110-220V AC
  • Fast Switching: turn-on and turn-off response under 75 ms
  • UV-Stabilized PC Housing: designed to withstand outdoor sunlight exposure
  • Anti-Sun Phantom Design: optical structure helps reduce false visual appearance caused by strong sunlight
  • Low Power Consumption: less than 5W per signal module
  • High Power Factor: greater than 0.9
  • 5-Year Warranty
  • CE Compliant
  • Simple R / G / COM Wiring: convenient integration with compatible barrier and gate controllers
  • Easy Retrofit Installation: designed for installation into existing traffic signal enclosures
Typical Applications
  • Parking barrier gate entrances and exits
  • Parking lot vehicle guidance
  • Access control lanes
  • Residential and commercial gate entrances
  • Vehicle traffic warning systems
  • Barrier controller signal indication
Technical Specifications
Parameter Specification
Model JD112HF-C
Signal Colors Red / Green
Signal Diameter 100mm / 4 inch
Module Shape Round
LED Quantity 1 LED module per color
Red Luminance >100 cd
Green Luminance >100 cd
Red Dominant Wavelength 625 nm
Green Dominant Wavelength 502 nm
Power Supply 12-24V DC / 110-220V AC
Power Consumption <5W per module
Power Factor >0.9
Operating Temperature -40°C to +60°C
Insulation Resistance ≥2MΩ
Total Harmonic Distortion <20%
Protection Rating IP65
Housing Material UV-Stabilized Polycarbonate
Lens Type Tinted Cobweb Lens
Wiring Red / Green / COM
Warranty 5 Years
Certification CE
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
Key Benefits
Reduce Overall Operating & Maintenance Costs

Energy saving: 90% reduction in power consumption compared to incandescent lights

Reliability & Traffic Safety

Improved visibility over the life of the product. Reduces emergency lamp outs. Design minimizes sun phantom effects.

Easy Installation

Can be easily installed into existing signal enclosures

Experience the benefits of our high-quality Warning Signal Vehicle LED Traffic Light from Shenzhen Jutai Comm Co., Ltd.

JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
Additional Specifications
Parameter Specification
Shape 100mm (4")
LED High brightness LEDs with integrated optics
Moisture and dust-tight seal IP65
Total Harmonic Distortion <20%
Operating Temperature Range -20°C to 60°C
Angle Avg.≥30° Down≥30°
Operating voltage range 85~265VAC
Insulation resistance ≥2M
Life 100,000H
Housing material PC
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
JUTAI JD112HF-C 100mm Red and Green LED Traffic Light IP65 for Parking Barrier Gates and Vehicle Management Systems
Manufacturer Information

Shenzhen Jutai Comm Co., Ltd. is a high-tech private enterprise specializing in the research, development, production, and sale of security products. We focus on RFID system solutions, including door access control, parking management systems, and elevator control systems.

Our Commitment

We not only provide high-quality products, but we also offer the latest application concepts, comprehensive system solutions, and unmatched technology support. Our dedicated after-sales service ensures that our customers have everything they need to succeed.

Our Vision

Our philosophy is rooted in the belief that technology is ever-evolving. We constantly strive for innovation, relentlessly seeking improvement in all that we do. Our goal is to provide a safer and more convenient living space for our customers, surpassing their expectations and delivering excellence.
