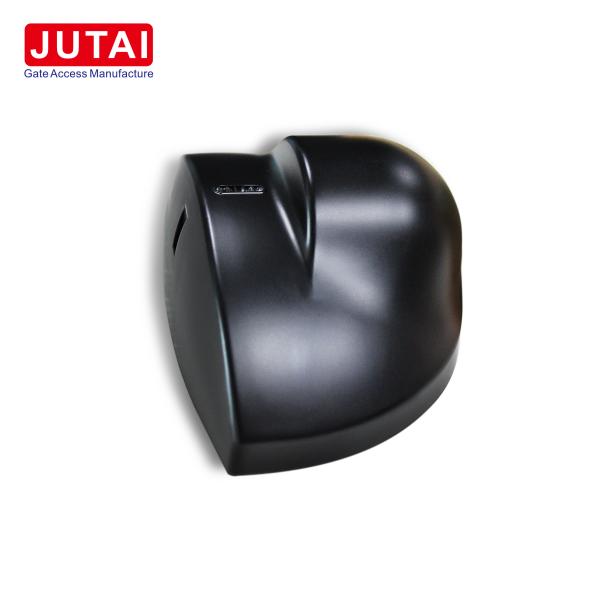

24.125GHz Dual Channel Microwave Motion Sensor for Automatic Sliding Doors with 5m Detection Range
24.125GHz Dual Channel Microwave Motion Sensor for Automatic Sliding Doors with 5m Detection Range
Specifications
Center Frequency :
24.125GHz
Power Supply Voltage :
12-24VAC/DC±10%
Temperature Range :
-25℃~+80℃
Warranty :
3 Years
Maximum Installation Height :
Below 5m
Minimum Detection Speed :
5cm/S
Detection Mode :
One-Way Detection and Two-Way Detection, Pin Switch
Working Principle :
Doppler Effect
Brand Name :
JUTAI
Model Number :
RD24-4
Certification :
FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
Cartoon
Description
Motion Sensor Automatic Door Opening System Sliding Door Motion Sensor 24.125GHz
24GHz Dual Channel Microwave Motion Sensor For Glass Sliding Door Opening
Product Features
  • Direction-detecting microwave sensor based on 24G integrated chips
  • Detects approaching signals and ignores away-away signals to prevent unnecessary door-opening actions
  • Switchable to bi-directional detection mode for enhanced versatility
  • Accurate object moving direction recognition - knows whether a person or object is approaching or moving away
  • Superior shock resistance - eliminates reciprocating vibration within a certain range
  • Ultra-long detection distance - detects vehicles up to 8m away and adults up to 5m away
  • Excellent product consistency - each unit has extremely close receiving sensitivity thanks to the MMIC monolithic microwave integrated antenna
With our Sliding Door Automatic Swing Door Accessory Microwave Motion Sensor Radar, you can enjoy the convenience of automatic door opening without any hassle. It ensures that only the right signals trigger the door to open, preventing any unnecessary interruptions. Plus, its advanced algorithm eliminates vibrations, providing a smooth and reliable experience.
24.125GHz Dual Channel Microwave Motion Sensor for Automatic Sliding Doors with 5m Detection Range 24.125GHz Dual Channel Microwave Motion Sensor for Automatic Sliding Doors with 5m Detection Range
Attributes: After-sales Service: Online Technical Support, Warranty Period: 3 Years, Structure: Other
24.125GHz Dual Channel Microwave Motion Sensor for Automatic Sliding Doors with 5m Detection Range
Technical Specifications
Working principle Doppler effect
Center frequency 24.125GHz
Maximum installation height Below 5m
Detection mode One-way detection and two-way detection, pin switch
Minimum detection speed 5cm/s
Relay output COM, NO
Hold time 0.5 s
Wire length 2.5M
Experience the future of door automation with our Sliding Door Automatic Swing Door Accessory Microwave Motion Sensor Radar. Trust in Shenzhen Jutai Comm Co., Ltd. for top-quality products and excellent customer service.
