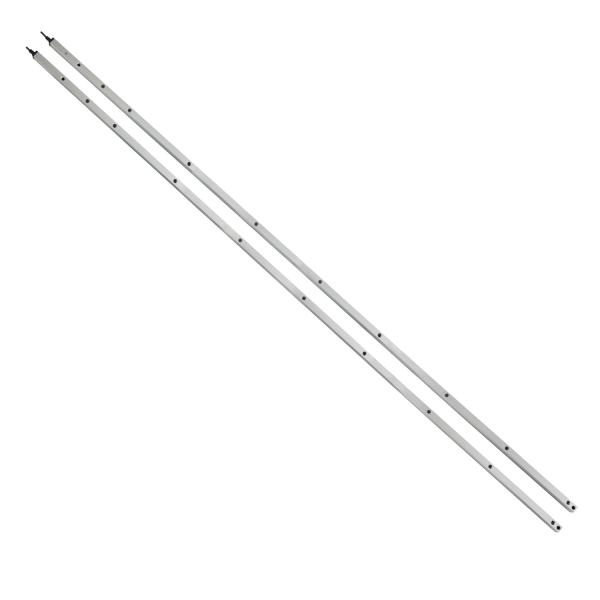

DC12-24V Blanking Infrared Light Curtain Sensor Corrosion Resistant
DC12-24V Blanking Infrared Light Curtain Sensor Corrosion Resistant
Specifications
Brand Name :
JUTAI
Model Number :
CL15-8L8
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay
Supply Ability :
1000 pieces per month
Delivery Time :
5 - 8 working days
Packaging Details :
Cartoon
Feature :
Corrosion Resistant
Operating Current :
<50mA
Operating Temperature :
-20~60℃
Output :
No/Nc, COM
IP Rating :
IP67
Material :
Aluminum Alloy
Sensing Distance :
8m
Working Current :
<20mA@DC12V
Supply Voltage :
DC12-24V
Specification :
150*2.1*1.5cm
Description
DC12-24V Blanking Infrared Light Curtain Sensor Corrosion Resistant
Product Overview

Safety Light Curtain Aluminum Waterproof IP67 8 Beams 8m Range Blanking Function

Product Description

The Blanking Infrared Light Curtain Sensor by Shenzhen Jutai Comm Co., Ltd. is meticulously designed to ensure robust industrial door safety with its Strong Light Resistance Security Active Infrared Sensor. Featuring an impressive 8-meter detection range and rapid response time, this sensor guarantees maximum safety for industrial doors, even in challenging lighting conditions.

Key Features & Advantages
  • Versatile Integration: Seamlessly integrates with all types of door control systems
  • Flexible Mounting Options: Direct integration into the door edge with door blanking
  • Automatic Door Safety: Specifically designed for automatic doors and gates
  • Wide Application Range: Suitable for high-speed doors, sectional doors, rolling doors, and freight elevators
  • Accurate Detection: Through-beam safety light curtains detect people or objects passing through
  • Output Options: NO/NC and COM output methods for flexible integration
  • Efficient Operation: Low working current of <20mA at DC12V
  • Blanking Functionality: Prevents false triggers during normal door closing
  • IP67 Waterproof Rating: Built to withstand harsh environments
DC12-24V Blanking Infrared Light Curtain Sensor Corrosion Resistant
Technical Specifications
Feature Specification
Mounting Type Direct integration into the door edge due to door blanking
Model Number CL15-8L8 (8-beams, 150cm height)
Type Safety light curtain
Usage High-speed doors, Sectional doors, Rolling doors, Vertical closing telescopic doors, Freight elevators
Working Principle Through-beam safety light curtains for fast doors and rolling shutter doors to prevent clipping
Output NO/NC, COM
Working Current <20mA@DC12V
Working Voltage DC12-24V
Detection Range Maximum 8m
Protective Height Maximum 1225mm (concealing mode), 1305mm (normal mode)
Beams 8-beams
LED Status Receiver: red light (object blocked), blue light (unblocked), blue light flash (not aligned)
Transmitter: blue light constant (normal), red light flash (voltage below 9v, above 28v)
Operating Temperature -20°C to +70°C
Protection Level IP67
Shell Material Aluminum alloy
Enhance industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for fast-speed doors with an 8m detecting range.
