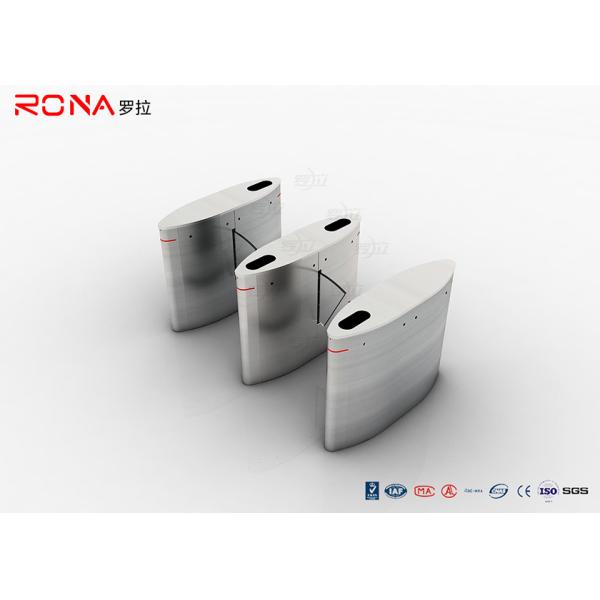

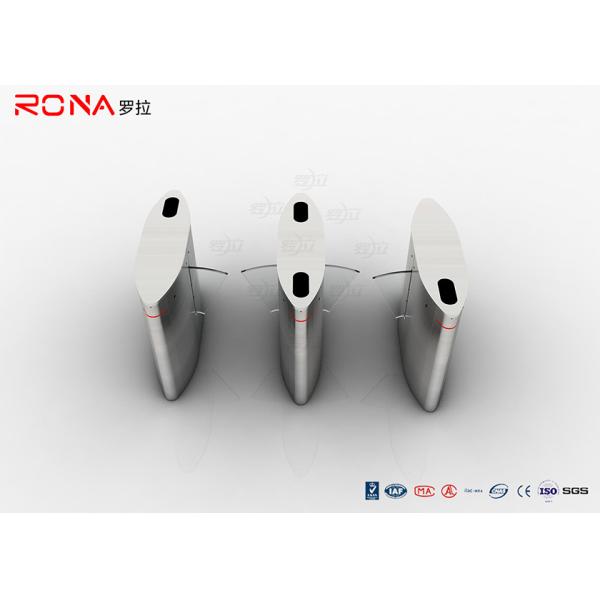

304 Stainless Steel Flap Barrier Gate Automatic Pedestrian Access Control System
304 Stainless Steel Flap Barrier Gate Automatic Pedestrian Access Control System
304 Stainless Steel Flap Barrier Gate Automatic Pedestrian Access Control System
304 Stainless Steel Flap Barrier Gate Automatic Pedestrian Access Control System
304 Stainless Steel Flap Barrier Gate Automatic Pedestrian Access Control System
304 Stainless Steel Flap Barrier Gate Automatic Pedestrian Access Control System
Specifications
Brand Name :
RONA
Model Number :
RNCF H1088
Certification :
CE / ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
T/T,
Supply Ability :
2000 units Per Month
Delivery Time :
7-15 working days
Packaging Details :
carton and wooden packing
Product Name :
Automatic pedestrian access control system 304 stainless steel flap barrier gate with RFID card/fingerprint
Standar Size :
L1200*W300*H990mm
Material of flap :
Acrylic/soft PU
Mean time to failure :
5 millions
Materials :
304 Stainless Steel & Stoving Varnish
Direction :
Single and bi-directional
Pass speed :
40 persons/min
Tine to opean and close gate :
0.6 seconds
Description

Automatic pedestrian access control system 304 stainless steel flap barrier gate with RFID card/fingerprint

Product Description

Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.

Tenical Parameters

Description Parameters
Item / Model RNCF H1088
Running life 5 millions
Drive voltage DC24V 20W
Pass Speed 40 persons/minute
Open direction Unidirectional and bidirectional (optional)
Opening time 0.6S/It is adjustable
Material 304 Stainless steel&stoning varnish
Swing arm material PU soft barrier model&Acrylic
Input port relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Standard functions & features of Flap Turnstiles Gate

1) On-line or off –line mode(optional)

2) DC Brushless Motor, Maintenance Free

3) With direction indication, guiding passenger to entry and exit.

4) Self automatic locking to prevent forcedly passing without the card

5) Light and sound alarm indication function, preventing illegal entry or irregular passing

6) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000

Extend Functions

The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.

1. access control system
2. bar-code scanner
3. Token /ID/IC card reader
4. time & attendance system
5. coin collector
6. card collector
7. consumption system
8. ESD system and fare collection system
9. biometric systems (fingerprint & face recognition)

304 Stainless Steel Flap Barrier Gate Automatic Pedestrian Access Control System

304 Stainless Steel Flap Barrier Gate Automatic Pedestrian Access Control System
