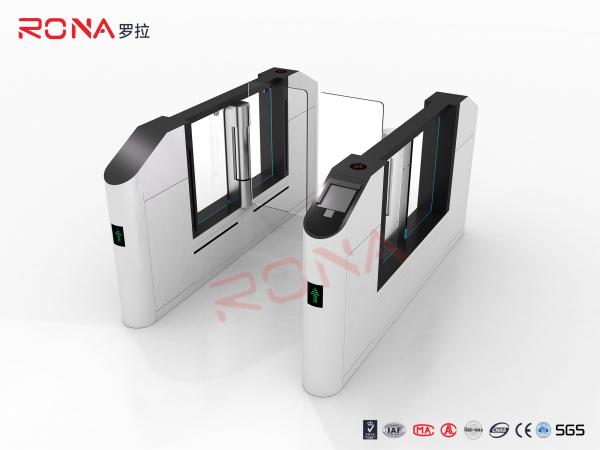

Dual Channel Automation Speed Gate Turnstile Fast Lane Gate Access Control Systems
Dual Channel Automation Speed Gate Turnstile Fast Lane Gate Access Control Systems
Dual Channel Automation Speed Gate Turnstile Fast Lane Gate Access Control Systems
Dual Channel Automation Speed Gate Turnstile Fast Lane Gate Access Control Systems
Dual Channel Automation Speed Gate Turnstile Fast Lane Gate Access Control Systems
Dual Channel Automation Speed Gate Turnstile Fast Lane Gate Access Control Systems
Specifications
Brand Name :
RONA
Model Number :
RNCFH 8008-9
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, T/T
Supply Ability :
2000 unit per month
Delivery Time :
7-15 work days
Packaging Details :
carton and wooden packing
Housing material :
304 Stailess Steel
Working voltage :
AC100-220V,50/60HZ
Driving motor :
Servo motro
Dimension :
1600mm*200mm*980mm
Passage width :
550-1100mm
Direction :
Single/bi-direction
Description

Dual Channel Automation Speed Gate Turnstile Fast Lane Gate Access Control Systems

Brief Introduction

  • Tailgating detection
  • Smooth, swinging-motion glass barriers
  • Slim, V-shaped, tapered cabinets with ergonomic design and small footprint
  • Flexible lane configurations

Features

  • High secure level and widely applications. They are widely used in Supermarket, shopping malls, Library,Hospital ,Goverment authority,etc.
  • Anti-bump, Anti clip,anti-tailgating,anti-intrusion.During operation if the swing arm meets any resistance, it will stop immediately. After pre set time, the arm will return to close position.This function effectively prevents pedestrian especially children from bumping, clipping,striking,etc. Illegal pass like intrusion, Tailgating,piggyback,etc will be detected and prohibitted.
  • Easy installation and free maintenance.
  • More intelligent. self-examing and pre-set time operations allow our speed gates turnstile more intelligent and convenient in working. If there is no passing through in pre-set time, it will return to close status. When in fire or power failure, the door will open automatically.
  • Multiple access control .Our speed gate turnstile is compatible with international standard RS485 Intereface. This enablles its widely accomodating to all prevailing softwares in industry and supports almost all types of access control like RFID cards,Bar codes, Biometric ,etc.
  • Bi directional passing through and high passing effeciency. Bi-directional passing through reduces the need for more gates. High passing speed and accomodation for wheel Chair, strollers,etc increase the passing effeciency.

Dual Channel Automation Speed Gate Turnstile Fast Lane Gate Access Control Systems

Parameters

Housing Material: 304 stainless steel
Size: 1600mm*200mm*980mm
Swing direction: one-way or two-way(can be set)
Operating voltage: AC220 ±10% V/50 ±10% HZ 50W
Drive motor: Servo motor
Input interface: Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA
Communication interface: RS232 MODBUS protocol
Passing speed: 40 people / minute (normally open), 25-30 people / minute (normally closed)
Gate opening and closing time: 1-2 seconds
Time required to enter the traffic state after power-on: 3 seconds
Automatic reset time after failure: 10 seconds
Working 13.environment: indoor, outdoor (shade)

Packaging

Dual Channel Automation Speed Gate Turnstile Fast Lane Gate Access Control Systems
