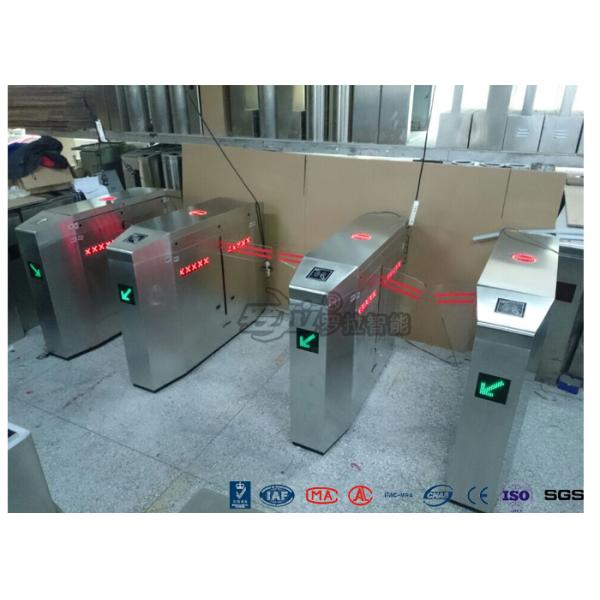

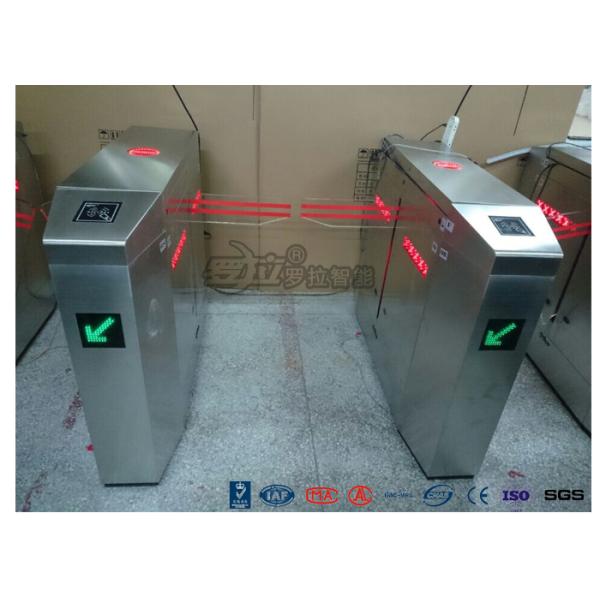

2 Ways Outdoor Flap Barrier Gate Barcode System Controlled Access Turnstile
2 Ways Outdoor Flap Barrier Gate Barcode System Controlled Access Turnstile
2 Ways Outdoor Flap Barrier Gate Barcode System Controlled Access Turnstile
2 Ways Outdoor Flap Barrier Gate Barcode System Controlled Access Turnstile
2 Ways Outdoor Flap Barrier Gate Barcode System Controlled Access Turnstile
2 Ways Outdoor Flap Barrier Gate Barcode System Controlled Access Turnstile
Specifications
Brand Name :
RONA
Model Number :
RNCF6088 / RNCF6088S
Certification :
CE / ISO9001
Place of Origin :
China
MOQ :
1 pair
Price :
negotiation
Payment Terms :
, T/T, L/C
Supply Ability :
2000 units Per Month
Delivery Time :
7-15 working days
Packaging Details :
Export Wooden Packing
Material :
304 stainless steel
Size :
1200mm (L) * 300mm (W) * 990mm (H)
Drive motor :
Stepper motor
Working environment :
indoor/outdoor
Direction plate :
Arrow & cross
Normal running life :
More than 5 millions
waterproofing grade :
IP54
Packing :
Export Wooden Packing
Description

2 Ways Outdoor Flap Barrier Gate Barcode System Controlled Access Turnstile



Flap barrier gates introduce

The product is a high-tech product aimed at the pedestrian access intelligent management, which is a upgraded product based on intelligent tri-turnstile, swing barrier, average wing barrier. This product is well-processed and newly-designed with full functions, high grade, and mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway, port, club etc. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and management.

Feature & Advantages

1. working method can be set by the buttons on the main panel

2. This model is double wing flap gate, low noise, smaller casing, save space

3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.

4. Anti-illegal in, anti-intrusion, auto close for reverse direction.

5. Anti-collision, gate closes when no valid signal is given.

6. Gates can be synchronous

7. auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.

8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)

9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.

10. One way or two way control

11 Unit can be controlled and administered by remote control

2 Ways Outdoor Flap Barrier Gate Barcode System Controlled Access Turnstile

Technical parameters

1 Power AC220C±10V,50HZ
2 Operating Temperature -10°C-70°C
3 Passing Speed 30~35 persons/min(IC Card)
4 Access Width 550mm ~580mm
5 Running Life morn than 5 Millions
6 Motor 140W/24V
7 Motor Speed 1600R/Min
8 Communication Distance ≤1200M
9 Input Connection +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
10 Communication Connection RS485
11 Material SUS304,thickness 2.0mm
12 Colour SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional)
13 Applications Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area

Application

Flap turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!

2 Ways Outdoor Flap Barrier Gate Barcode System Controlled Access Turnstile
