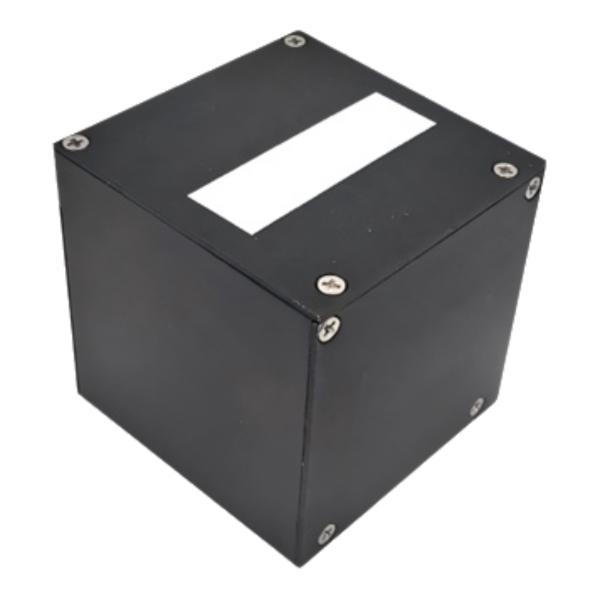

Stable and Accurate Anti-vibration 3-Axis Gyro with High Precision Design
Stable and Accurate Anti-vibration 3-Axis Gyro with High Precision Design
Stable and Accurate Anti-vibration 3-Axis Gyro with High Precision Design
Stable and Accurate Anti-vibration 3-Axis Gyro with High Precision Design
Specifications
Brand Name :
Firepower
Model Number :
3OG-50
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500/month
Delivery Time :
10 days
Packaging Details :
sponge and carton
Measuring range :
-500~+500°/s
Zero bias stability :
≤1°/h
Random walk coefficient :
≤0.08°/√h
Bandwidth :
≥200Hz
Resolution :
≤0.2°/h
Zero bias repeatability :
≤0.8°/h
Zero position :
≤1°/h
Start time :
3s
Working temperature :
-45~+70℃
Storage temperature :
-55~+80℃
Description

1. Structure Composition
The fiber optic gyro core sensor is the core component of the fiber optic gyroscope, responsible for measuring the angular velocity based on the Sagnac effect; the signal processing and control module modulates, demodulates, amplifies and digitizes the optical signals and outputs high-precision angular velocity data.

2. Overall dimension

Stable and Accurate Anti-vibration 3-Axis Gyro with High Precision Design

3. Parameters

Serial number Test item Unit Technical requirements
1 Overall dimensions mm 52×51×52
2 Start-up time s 3
3 Zero position (°)/h ≤1
4 Zero bias stability at normal temperature (constant temperature) (10 s smooth) (°)/h ≤1
5 Zero bias stability at variable temperature (1 ℃/min variable temperature, 100 s smooth) (°)/h ≤1
6 Zero-bias repeatability (°)/h ≤0.8
7 Zero bias sensitivity (°)/h/Gs ≤0.2
8 Random walk coefficient (º)/h1/2 ≤0.08
9 Scale factor nonlinearity ppm ≤20
10 Scale factor asymmetry ppm ≤10
11 Scale factor repeatability ppm ≤20
12 Threshold (°)/h ≤0.2
13 Resolution (°)/h ≤0.2
14 Bandwidth Hz ≥200
15 Operating temperature ℃ -45～+70
16 Storage temperature ℃ -55～+80
17 Dynamic range (°)/s ±500
18 Supply voltage V +5
19 Steady-state power consumption W ≤4
20 Full temperature steady state power consumption W ≤8
21 Start the instantaneous current A ＜2

4. Production environments
