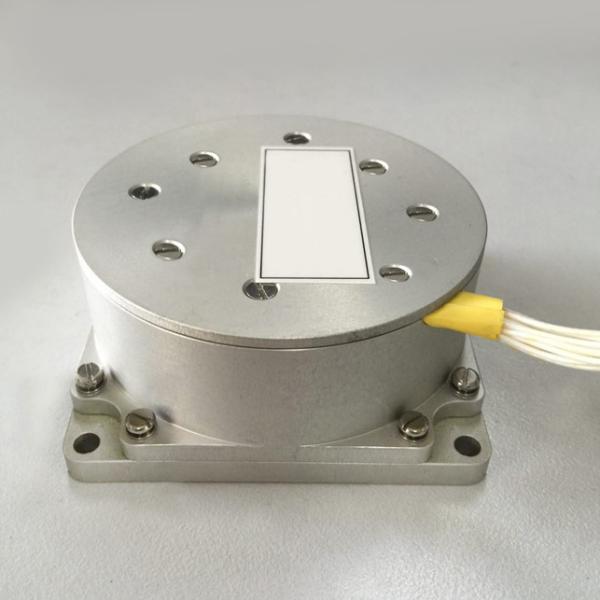

500hz Fiber Optic Gyro Transducer Meter Selection Fog Gyro Sensor
500hz Fiber Optic Gyro Transducer Meter Selection Fog Gyro Sensor
500hz Fiber Optic Gyro Transducer Meter Selection Fog Gyro Sensor
500hz Fiber Optic Gyro Transducer Meter Selection Fog Gyro Sensor
Specifications
Brand Name :
A-VIC
Model Number :
F98-01
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
50/month
Delivery Time :
20 days for sample
Packaging Details :
sponge+ box
Product name :
gyro
Baud rate :
115200~921600
Data refresh rate :
200~500Hz
Shock :
30,11
bandwidth :
>200Hz
Zero bias repeatability :
≤0.008º/√h
Description

Fiber Optic Gyro Transducer, Fiber optic gyro meter, Selection fog fiber optic gyro sensor

Applications

●UAV/AUV/Helicopter ●Tactical nuclear weapons ●Aeronautics and astronautics

●Integrated navigation system ●inertial platform stabilizing ●Vehicle navigation

Performance Characteristics

No. Parameter F98-400 Unit Remarks
1 Maximum angular rate ±400 °/s
2 Scale factor

1650000×

(1±10%)

 SP/°/s
3 Scale factor nonlinearity in room temperature ≤20 ppm
@25℃
4 Scale factor repeatability in room temperature ≤20 ppm @25℃
5

Scale factor repeatability in full

temperature

 ≤50 ppm -40℃~+70℃
6 Bias stability in room temperature ≤0.02

10s

1σ,°/h

 @25℃
7 Bias repeatability in room temperature ≤0.01 1σ,°/h Bias
8 Bias repeatability in tull temperature ≤0.03 1σ,°/h -40℃~+70℃
9 Bias stability in changing temperature ≤0.015

100s

1σ,°/h

 0.3℃/min,-40℃~+70℃
10 Random walk ≤0.003 °/
11 Activation time 0 min
12 Bias value during vibration/before vibration/after vibration ≤0.05 °/h
13 Bias value before/after vibration) ≤0.05 °/h
14 Magnetic sensitivity ≤0.01 °/h/Gs
15 Threshold value ≤0.02 °/h
16 Vibration

20Hz～2000Hz

 Hz/10min
X Y Z

Vibration

spectrum
17 Impact 15g(3times) Half sine wave/11ms
±X ±Y ±Z

Dimensions

500hz Fiber Optic Gyro Transducer Meter Selection Fog Gyro Sensor

Features

● All-fiber design -long lifespan, small package size, high stability and more resistance to interference.

● Integrated fiber polarizer -minimum insertion loss and high extinction ratio, offering more resistance to temperature and mechanical shock, as well as intense vibration.

● Reliable compact package -operationally robust for all kinds of environments, ideal for a wide of applications in both civilian and military areas.

● QuichLaunch technology -minium activation time with no external calibration required.

● Optimal wavelength -improves the sensibility by 50% with the same structure, size and cost.

● Noise isolation and compression -significantly reduces the angle random walk.

● SelfTrack technology -improves the gyro dynamic range
