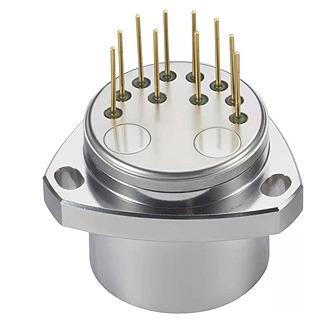

Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Specifications
Brand Name :
FIREPOWER
Model Number :
ACC1-01
Place of Origin :
China
MOQ :
1
Price :
1600$
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500/month
Delivery Time :
1 week for sample
Packaging Details :
sponge+box
Measuring Range :
±50/60/70g
Threshold Value :
5μg
Bias K0/K1 :
≤±3mg
Scale Factor K1 :
1.0~1.30 Ma/G
Class II Nonlinear Coefficient K2 :
≤±10μg /G2
Bias Comprehensive Repeatability σ :
≤10 μg
Scale Factor Comprehensive Repeatability :
≤10ppm
Noise (840 Ω Sampling Resistor) :
≤5mv
Bandwidth :
800~2500 Hz
Size :
Ф25.4X30mm
Description
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Product Specifications
Attribute Value
Measuring Range ±50/60/70g
Threshold Value 5μg
Bias K0/K1 ≤±3mg
Scale Factor K1 1.0~1.30 Ma/G
Class II Nonlinear Coefficient K2 ≤±10μg /G2
Bias Comprehensive Repeatability σ ≤10 μg
Scale Factor Comprehensive Repeatability ≤10ppm
Noise (840 Ω Sampling Resistor) ≤5mv
Bandwidth 800~2500 Hz
Size Ф25.4X30mm
Product Description

The ACC1 series vibration acceleration sensor is a high-precision accelerometer featuring exceptional long-term stability, repeatability, start-up performance, environmental adaptability, and reliability. Suitable for both static and dynamic testing applications, it serves as a standard vibration and tilt sensor.

The product's output current maintains a linear relationship with force or acceleration. Users can select appropriate sampling resistance through calculation to achieve high-precision output. An integrated temperature sensor enables bias and scale factor compensation, reducing the impact of ambient temperature variations as required.

Technical Parameters
Serial number Parameter ACC1-01 ACC1-02 ACC1-03
1 Range ±50g,±60g,±70g ±50g,±60g,±70g ±50g,±60g,±70g
2 Threshold 5μg 5μg 5μg
3 Bias K0/K1 ≤±3mg ≤±3mg ≤±5 mg
4 Scale factor K1 1.0~1.30 mA/g 1.0~1.30 mA/g 1.0~1.30 mA/g
5 Class II nonlinear coefficient K2 ≤±10μg /g2 ≤±15μg /g2 ≤±20μg /g2
6 0 g 4 hour short term stability ≤10 μg ≤10μg ≤10 μg
7 1g 4-hour short-term stability ≤10 ppm ≤10 ppm ≤10 ppm
8 Bias comprehensive repeatability σK0 (1σ, 1 month) ≤10 μg ≤15μg ≤25 μg
9 Scale factor comprehensive repeatability σ K1/K1 (1σ, 1 month) ≤10ppm ≤20 ppm ≤30 ppm
10 Nonlinear coefficient comprehensive repeatability K2/K1 (1σ, 1 month) ≤±10 μg /g2 ≤±15 μg /g2 ≤±20 μg /g2
11 Bias temperature coefficient (full temperature average) ≤±10 μg /℃ ≤±20 μg /℃ ≤±30 μg /℃
12 Scale Factor Temperature Coefficient (Averaged Over Temperature) ≤±10 ppm /℃ ≤±30 ppm /℃ ≤±50 ppm /℃
13 Noise (840 Ω sampling resistor) ≤5mv ≤8.4mv ≤8.4mv
14 Natural frequency 400~800 Hz 400~800 Hz 400~800 Hz
15 Bandwidth 800~2500 Hz 800~2500 Hz 800~2500 Hz
16 Random vibration 6g(20-2000Hz) 6g(20-2000Hz) 6g(20-2000Hz)
17 Impact 100g,8ms,1/2sin 100g,8ms,1/2sin 100g,8ms,1/2sin
18 Operating temperature range -55~+85℃ -55~+85℃ -55~+85℃
19 Storage temperature range -60~+120℃ -60~+120℃ -60~+120℃
20 Power supply ±12~±15V ±12~±15V ±12~±15V
21 Current consumption ≤±20mA ≤±20mA ≤±20mA
22 Temperature sensor Option Option Option
23 Size Ф25.4X30mm Ф25.4X30mm Ф25.4X30mm
24 Weight ≤80g ≤80g ≤80g
Outline Drawing
Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
