Specifications
Brand Name :
Firepower
Model Number :
MGC150- P05
Place of Origin :
China
MOQ :
1
Price :
1500$
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500/month
Delivery Time :
1 Week for sample
Packaging Details :
BOX+Sponge
Range :
150°/s
Bias Stability (10 s smoothing) :
0 .5°/h
Bias @ 25℃ :
15°/h
Angle Random Walk :
0.06°/√ h
Bias Repeatability :
2°/h
Scale Factor Repeatability :
30ppmx
Non - linearity @ Full Scale (FS) :
100ppm
Bandwidth :
30Hz
Description
Tactical-grade Single-axis MEMS Gyroscope Chips for Unmanned Systems
Key Specifications
Attribute Value
Range 150°/s
Bias Stability (10 s smoothing) 0.5°/h
Bias @ 25℃ 15°/h
Angle Random Walk 0.06°/√h
Bias Repeatability 2°/h
Scale Factor Repeatability 30ppmx
Non-linearity @ Full Scale (FS) 100ppm
Bandwidth 30Hz
Product Overview

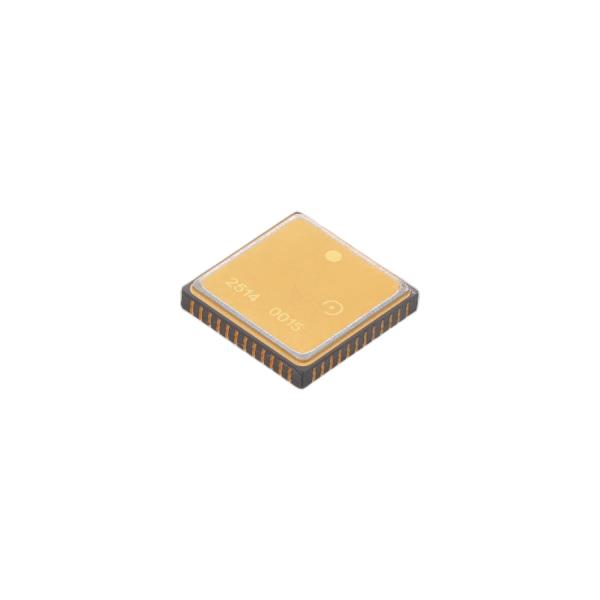

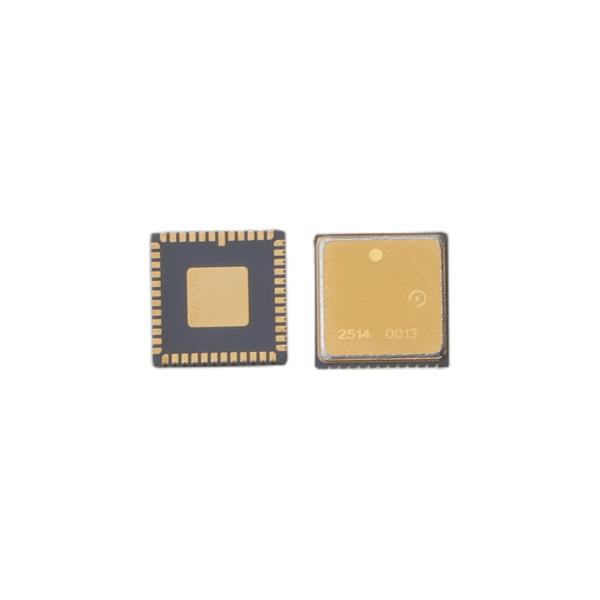

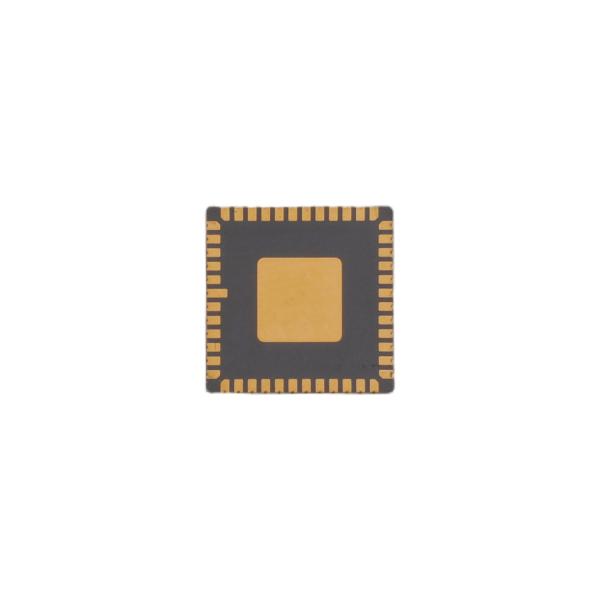

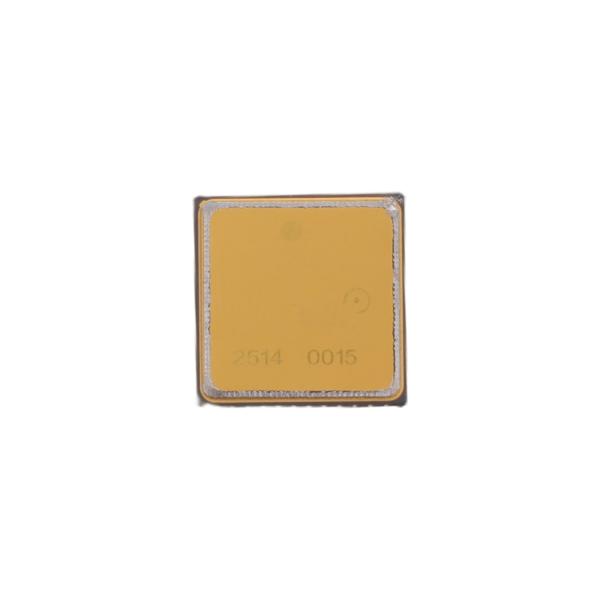

The MGC series single-axis MEMS gyroscopes deliver highly stable and low-noise angular velocity outputs in a compact ceramic package with fully digital interface. With bias stability as low as 0.5 dph, angle random walk down to 0.06°/√h, and wide bandwidth up to ≥100 Hz, these sensors are ideal for demanding applications requiring high precision and long-term repeatability.

Technical Parameters
Parameter MGC150-P05 MGC500-P1 MGC500-P2 MGC500-P3 Unit
Range 150 500 500 500 dps
Bias @ 25℃ 15 45 45 45 dph
Noise @ 10Hz 0.001 0.0012 0.0012 0.0012 mdps/√Hz
Bias Stability (10 s smoothing) 0.5 1.0 2.0 3.0 dph
Angle Random Walk 0.06 0.08 0.08 0.08 °/√h
Bias Repeatability (Weekly) 2 2 2 2 dph
Scale Factor 38550 11185 11185 11185 LSB/dps
Scale Factor Repeatability (Weekly) 30 30 30 30 ppm
Non-linearity @ Full Scale (FS) 100 100 100 100 ppm
Non-linearity @ 200 dps 50 50 50 50 ppm
Bandwidth 30 ≥100 ≥100 ≥100 Hz
G-Sensitivity 2 3 3 3 dph/g
Typical Applications
  • Inertial Navigation Systems
  • Platform Stabilization
  • Attitude and Heading Reference System
  • Precision Agriculture and Industrial Automation
  • UAV and Autonomous Vehicle Systems

Ideal for drone and unmanned systems' orientation and attitude control, as well as for integration into advanced navigation systems such as IMU and INS.
