Specifications
Brand Name :
FIREPOWER
Model Number :
MFOG-095
Place of Origin :
CHINA
MOQ :
1
Price :
500$
Payment Terms :
L/C,T/T
Supply Ability :
500/month
Delivery Time :
1 week for sample
Packaging Details :
sponge +carton
Gyro Range :
±150deg/s
Size :
60mm × 35mm × 25.5mm
Random Walk Coefficient :
≤0.02°/Vh
Weight :
≤70g.
Bias Stability :
≤2°/h
Bias Repeatability :
≤2°/h
Description

Product Overview

MFOG-095 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.


Composition

The product is mainly composed of the following components:

A) an optical path assembly;

B) Detection and control signal circuit board;

C) Optical fiber coil skeleton, shell and other structural parts;

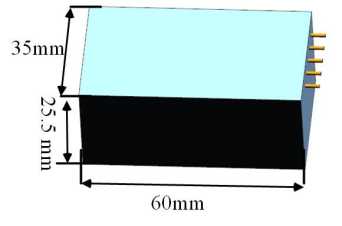

Appearance and dimension

The overall dimension of the product is 60mm × 35mm × 25.5mm (without plug).

Low Drift Fiber Optic Gyroscope for Industrial Motion Control & Antenna Stabilization

Weight

≤70g.


Main Performance Parameters

Serial number

Project

Performance indicators

1

Range (°/s)

±150

2

Scale factor (mV/ o /s)

≥10

3

Zero-bias stability (10s, 1σ, o /H)

≤2

4

Zero-bias repeatability (1σ, o /H)

≤2

5

Zero bias (°/s)

≤0.05

6

3dB Bandwidth (Hz)

≥1000

7

Random walk ( o /√ H)

≤0.02

8

Start-up Time (s)

≤1

9

Power supply (V)

5+0.15

10

Power Consumption (W)

≤0.7

Mechanical interfac
