Specifications
Brand Name :
FIREPOWER
Model Number :
MFOG103
Place of Origin :
China
MOQ :
1
Price :
500$
Payment Terms :
L/C,T/T
Supply Ability :
500/month
Delivery Time :
1 week for sample
Packaging Details :
sponge +carton
Measurement Range :
350°/s
Bias Repeatability :
1°/h
Zero Bias Stability :
1°/h
Dimension :
60 mm × 60 mm × 17 mm
Weight :
≤80g.
Impact :
≥1500g
Description

Product Overview

The MFOG-103 micro-nano fiber optic gyroscope (hereinafter referred to as the product) is a high-performance angular rate sensor integrating optical, mechanical, and electronic technologies. Based on the Sagnac effect, it incorporates multiple micro-nano fiber optic devices and realizes angular rate measurement by detecting, processing, and feedback-controlling the phase difference generated by two counter-propagating light beams within the fiber coil.

The product mainly consists of optical path components, electronic circuits, and mechanical structural parts. Featuring a simple and robust structure with no moving or wearing parts, it offers fast start-up, compact size, light weight, and high reliability. The MFOG-103 is suitable for attitude measurement and control applications of various carriers.


Composition

The product is mainly composed of the following components:

A) Optical path assembly
B) Detection and control signal circuit board
C) Fiber optic coil skeleton, housing, and other mechanical structural components


Performance Parameter

Serial number

Project

Performance indicators

1

Range (°/s)

±350

2

Scale factor (mV/ o /s)

6±0.6

3

Zero-bias stability (10s, 1σ, o /H)

≤1

4

Zero-bias repeatability (1σ, o /H)

≤1

6

3dB Bandwidth (Hz)

≥1000

7

Random walk ( o /√ H)

≤0.02

8

Power supply (V)

5+0.25

9

Power Consumption (W)

≤1

10

Impact (g)

≥1500

11

Acceleration (g)

≥70

12

Service Life (years) (calculated assessment)

≥15

13

MTBF (Calculated Assessment)

≥100000

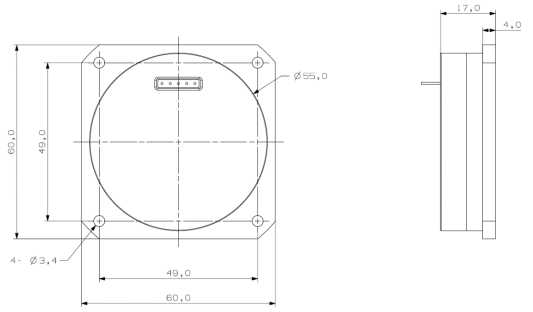

Outline Drawing


Customized FOG Fiber Optic Angular Rate Sensor for Inertial Measurement Unit
