Specifications
Brand Name :
FIREPOWER
Model Number :
MFOG-40
Place of Origin :
China
MOQ :
1
Price :
500$
Payment Terms :
L/C,T/T
Supply Ability :
500/month
Delivery Time :
1 week for sample
Packaging Details :
sponge +carton
Measurement Range :
150°/s
Size :
ф40mm x 20mm
Dynamic Accuracy :
<1°/h
Bias Repeatability :
2°/h
Scale factor :
12±1.2mV/ ° /s
3dB Bandwidth :
≥450Hz
Description

MFOG-1703 Micro-Nano Fiber Optic Gyroscope

The MFOG-1703 micro-nano fiber optic gyroscope is a high-precision angular rate sensor integrating optical, mechanical, and electronic technologies. Based on the Sagnac effect, the product incorporates multiple micro-nano fiber optic devices and realizes angular rate measurement by detecting, processing, and feedback-controlling the phase difference generated by two counter-propagating light beams.

The product mainly consists of optical path components, electronic circuits, and mechanical structural components. Featuring a simple structure with no moving or wearing parts, it offers fast start-up, small size, light weight, and high reliability. The MFOG-1703 is suitable for attitude measurement and control applications of various carriers.


Composition

The product is mainly composed of the following components:

A) Optical path assembly
B) Detection and control signal circuit board
C) Fiber coil skeleton, housing, and other mechanical structural parts


Main Performance Parameters

Serial

number

Project

Performance

indicators

1

Range (°/s)

±150

2

Scale factor (mV/ o /s)

12±1.2

3

Zero-bias stability (10s, 1σ, °/h)

≤1

4

Zero-bias repeatability (1σ, °/h)

≤1

5

Angular random walk (°/h 1/2 )

≤0.02

6

Zero-bias temperature sensitivity (uV/° C)

≤1

7

Scale Factor Temperature Sensitivity

(ppm/° C)

≤300

8

3dB Bandwidth (Hz)

≥450


9

Impact (g)

1200, 1ms, half

sine

10

Power supply (V)

5+0.25

11

Power Consumption (W)

≤1

12

Dimension (mm)

φ40 × 20

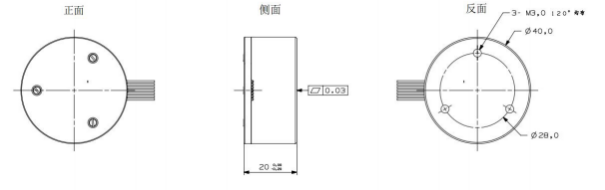

Outlne Drawing
