Specifications
Certification :
CE, RoHS
Supply Ability :
1000/month
Best Accuracy :
<0.02° (Full Range)
Shock Impact :
10grms. 10～100Hz
Payment Terms :
L/C,T/T,Western Union
Repeatability :
0.004°
Delivery Time :
1 week
Angle Measurement Resolution :
0.001°
Model Number :
FMI610
Price :
300$
Packaging Details :
Sponge + Carton
Place of Origin :
C
Angle Measurement Range :
±90°
LCD Visible Area :
L60.5 × W45mm
MOQ :
1
Description
FMI610 High Precision Digital Inclinometer
MEMS Tilt Meter for Industrial Measurement & Machinery Alignment
General Description
The FMI610 is a digital display inclinometer designed for various industrial angle control and measurement applications. Utilizing micro mechanical control principles with patented interleaved temperature compensation model algorithms, this instrument leverages micro-electro-mechanical system (MEMS) technology to ensure long-term stability and repeatability.
With a maximum measurement range of ±90°, resolution of 0.001°, and best accuracy of <0.02° across the full measuring range, the FMI610 delivers fast response speeds and stable data. The unit features strong magnetic adsorption installation on both sides and bottom, enabling measurement from three datum points for enhanced convenience. Additional features include data storage functionality, three selectable measurement modes (Angle, Degree/Minute/Second, Mm/m), strong expandability, industrial reliability, and competitive international pricing.
Key Features
  • Best accuracy: <0.02°
  • Data storage function
  • Repeatability: 0.004°
  • Maximum measurement range: ±90°
  • Angle resolution: 0.001°
  • Absolute/Relative measurement switching
  • Measurement capability from both sides and bottom
  • Three surface datum strong magnetic installation
  • Working temperature: -10° to +70℃
  • Auto-angle interleaved compensation function
  • Auto temperature drift compensation
  • User-calibratable ZERO function
  • Night vision four-color screen
  • Three measurement modes: Angle, Degree/Minute/Second, Mm/m
Applications
  • Building construction
  • Automobile four-wheel testing
  • Road slope measurement
  • Machinery installation
  • Piping installation
  • Industrial platform leveling
  • Turntable testing
  • Pan unit angle detection
  • Production jig alignment
Technical Specifications
Parameter FMI610
Angle measurement range ±90° | ±30°
Measurement axis Single axis | Dual axis
Best accuracy (RMS) <0.02° (Full range) | <0.005° (Full range)
Angle measurement resolution 0.001°
Repeatability 0.004°
Measurement mode Angle, Degree/Minute/Second, Mm/m (Three modes selectable)
LCD Display 64 true colors night vision display screen
LCD visible area size L60.5 × W45mm
Working temperature -10℃ to +70℃
Working humidity 85% RH
Power supply One 2A AA battery or AA NiMH rechargeable battery
Ideal working time 6 Hours
Shock resistance 10g @ 11ms, 3 Axial Direction (Half Sinusoid)
Shock impact 10grms, 10～100Hz
Weight 600g
Waterproof grade IP65
Material Anodic oxidation of aluminum alloy
Size L115 × W95 × H32mm
For highest measurement accuracy, please set the latitude information of your local city. This setting will be automatically saved after configuration.

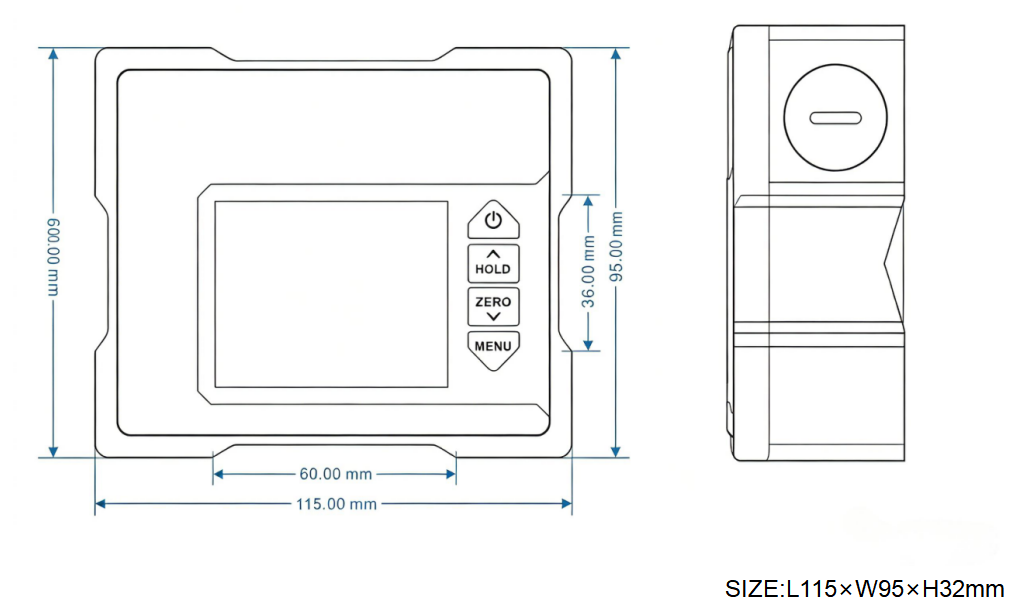

Product Dimension Diagram
FMI610 High Precision Digital Inclinometer with ±90° Measurement Range and Magnetic Installation for Industrial Use

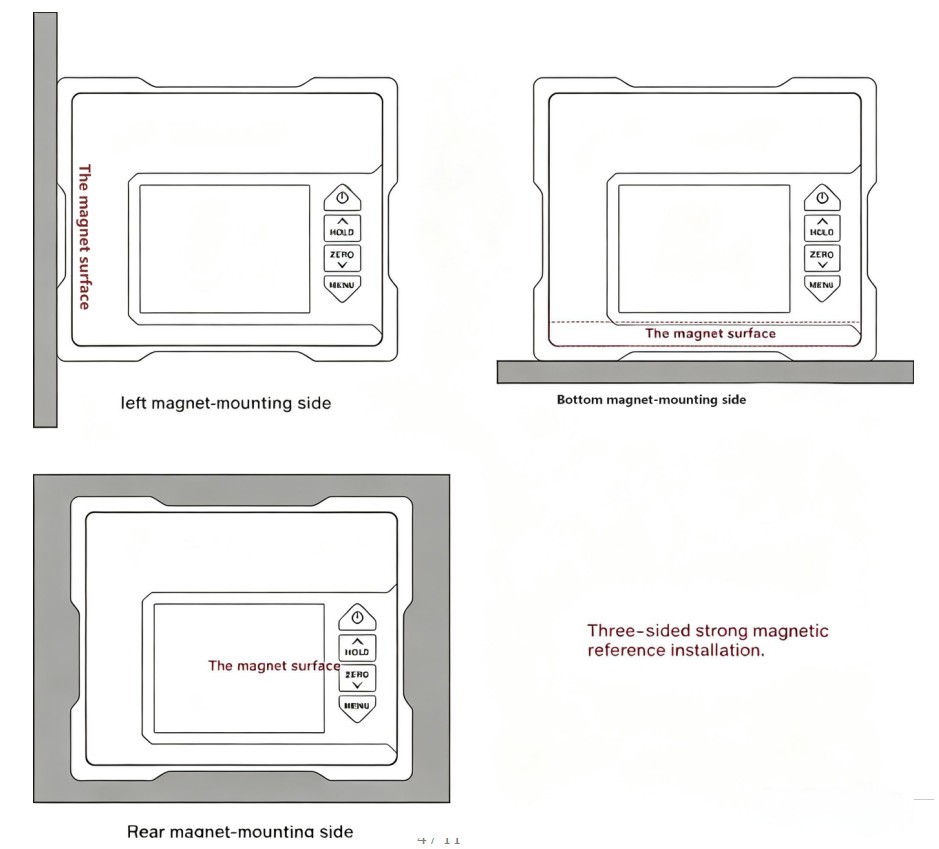

Magnetic Measuring Surface
FMI610 High Precision Digital Inclinometer with ±90° Measurement Range and Magnetic Installation for Industrial Use

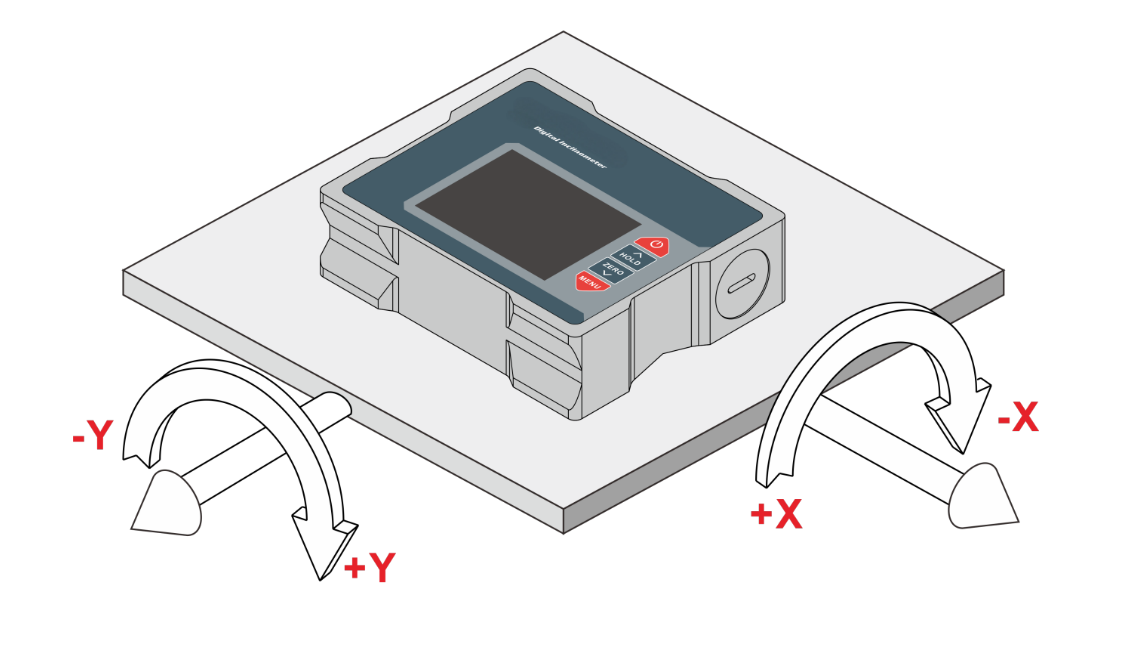

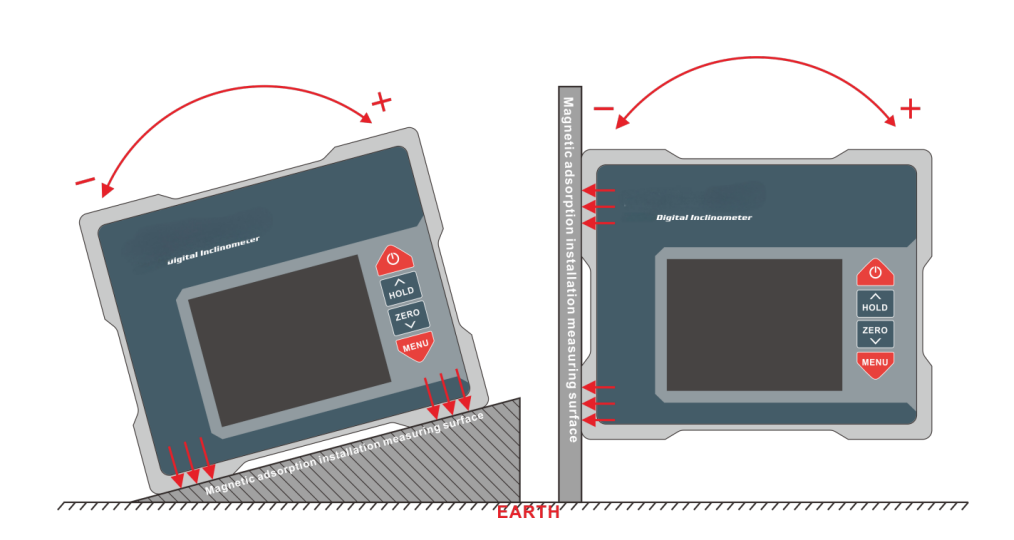

Installation Measurement Chart
FMI610 High Precision Digital Inclinometer with ±90° Measurement Range and Magnetic Installation for Industrial Use FMI610 High Precision Digital Inclinometer with ±90° Measurement Range and Magnetic Installation for Industrial Use
