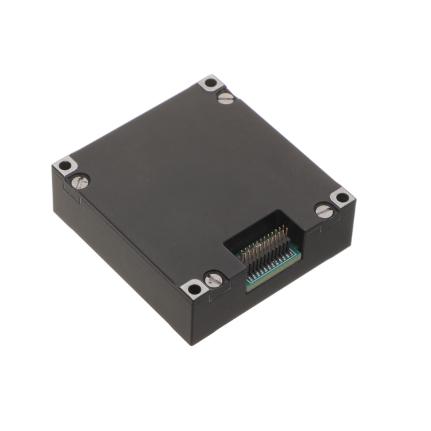

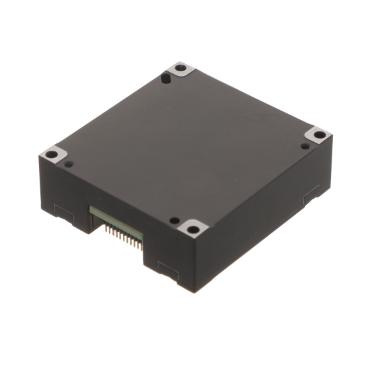

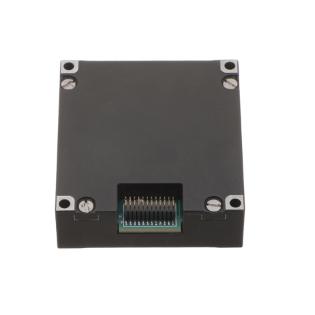

Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Specifications
Brand Name :
Firepower
Model Number :
16488C
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
670 USD
Packaging Details :
Box with sponge
Delivery Time :
1 week
Payment Terms :
100% in advance
Supply Ability :
1000/month
Power Supply Voltage :
3V~3.6V
Gyrp scale factor accuracy :
0.3%
MTBF :
> 20000h
Size :
47×44×14
Power Consumption :
1.5w
Accelerometer zero-bias stability :
0.03mg
Gyro scale factor nonlinearity :
0.01%FS
Accelerometer measure range :
16g
Description
Integrated Motion IMU Accelerometer Gyro 0.015mg Allan Variance 20000h MTBF
Product Attributes
Attribute Value
Power Supply Voltage 3V~3.6V
Gyrp scale factor accuracy 0.3%
MTBF > 20000h
Size 47×44×14
Power Consumption 1.5w
Accelerometer zero-bias stability 0.03mg
Gyro scale factor nonlinearity 0.01%FS
Accelerometer measure range 16g
Product Description

The Institute of Motion (IMU) Accelerometer Gyro is a high precision integrated motion accelerometer designed to accurately measure motion and orientation in space. The accelerometer features a baud rate of 15MHz and zero-bias stability of 0.8°/h. It has a power supply voltage of 3V-3.6V and a measure range of 16g. Furthermore, the IMU Accelerometer Gyro is designed with a wide temperature range, from -40℃ to 70℃. This allows it to be used in a variety of applications and environments. Its accuracy and reliability make it an ideal choice for inertial measurement applications, such as in automotive, aerospace, medical and industrial applications.

Features
  • Product Name: Integrated Motion Accelerometer Inertial Measurement Accelerometer Gyro Integrated Measurement Accelerometer Gyro
  • Gyro measure range: 450deg/s
  • Power Consumption: 1.5w
  • Accelerometer zero-bias stability: 0.03mg
  • Power Supply Voltage: 3V~3.6V
  • Accelerometer allan variance: 0.015mg
Technical Parameters
Parameter IMU Accelerometer Gyro
Gyro scale factor nonlinearity 0.01%FS
Accelerometer allan variance 0.015mg
MTBF > 20000h
Power Consumption 1.5w
Zero-bias stability 0.8 °/h
Power Supply Voltage 3V~3.6V
Baud rate 15MHz
Weight 50g
Size 47×44×14
Accelerometer measure range 16g
