Application area

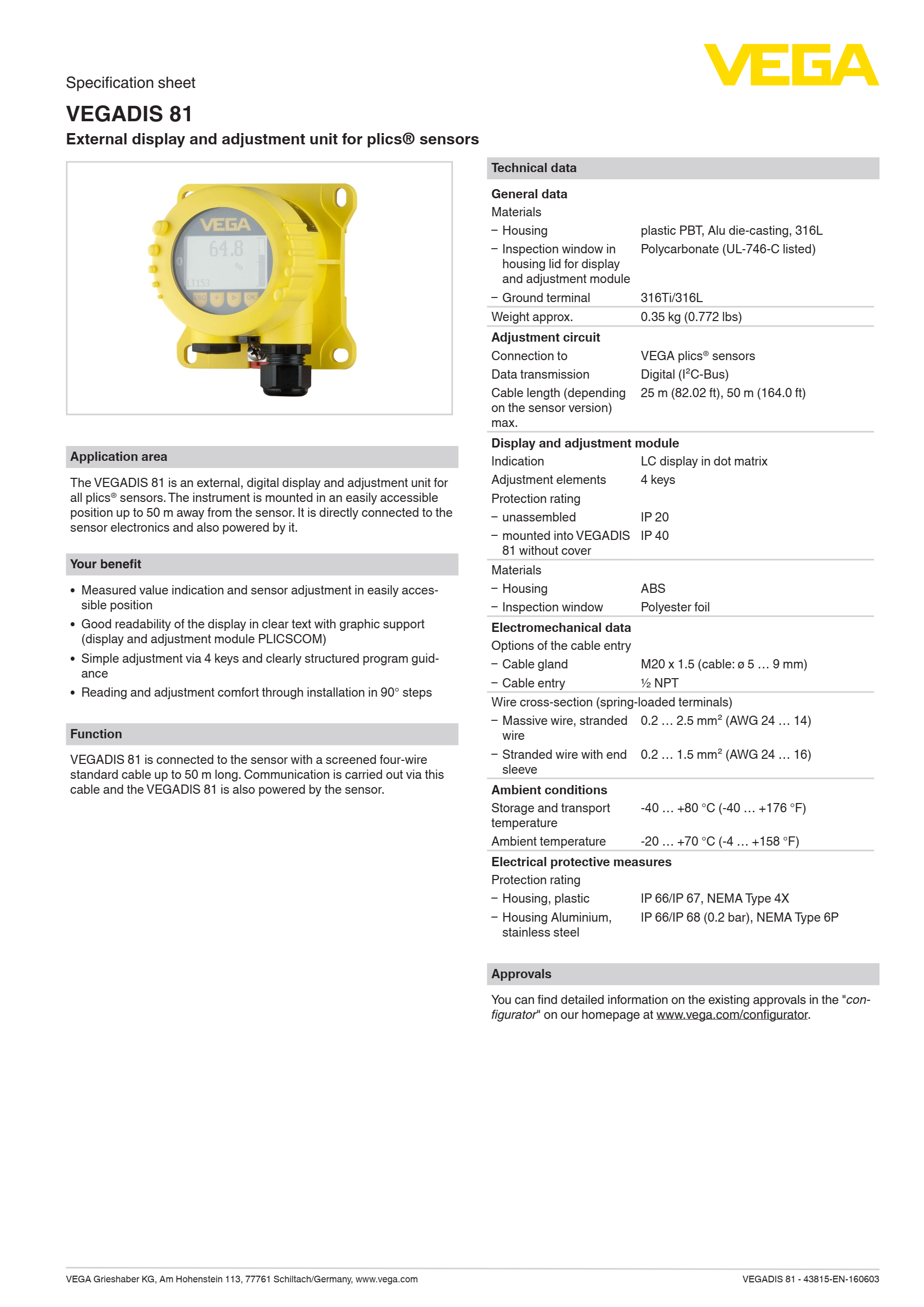

The VEGADIS 81 is an external, digital display and adjustment unit for all plics® sensors. The instrument is mounted in an easily accessible position up to 50 m away from the sensor. It is directly connected to the sensor electronics and also powered by it.
Your benefit
• Measured value indication and sensor adjustment in easily accessible position
• Good readability of the display in clear text with graphic support
(display and adjustment module PLICSCOM)
• Simple adjustment via 4 keys and clearly structured program guidance
• Reading and adjustment comfort through installation in 90° steps
Function
VEGADIS 81 is connected to the sensor with a screened four-wire standard cable up to 50 m long. Communication is carried out via this cable and the VEGADIS 81 is also powered by the sensor.
