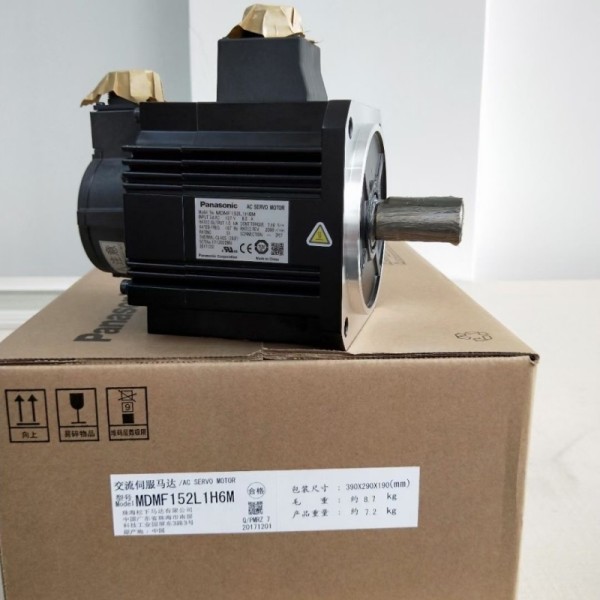

Panasonic MINAS A6 MHMF152L1G6M Servo Motor 1.5kW 200V AC High Inertia with 23-bit Encoder and IP67 Rating
Panasonic MINAS A6 MHMF152L1G6M Servo Motor 1.5kW 200V AC High Inertia with 23-bit Encoder and IP67 Rating
Panasonic MINAS A6 MHMF152L1G6M Servo Motor 1.5kW 200V AC High Inertia with 23-bit Encoder and IP67 Rating
Panasonic MINAS A6 MHMF152L1G6M Servo Motor 1.5kW 200V AC High Inertia with 23-bit Encoder and IP67 Rating
Specifications
Brand Name :
Panasonic
Model Number :
MHMF152L1G6M
Place of Origin :
Japan
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3 working days
Packaging Details :
original package
Condition :
original brand new
Warranty :
one year
Shipping way :
DHL FedEx express
Application :
Automation Industries, oil, gas, chemical industries
Certificate :
CE ISO TUV
Description
Panasonic MINAS A6 MHMF152L1G6M Servo Motor, 1.5kW 200V AC, High Inertia 23-bit Encoder, IP67 Rated
Panasonic MHMF152L1G6M | MINAS A6 Series 1.5kW High Inertia Servo Motor

The Panasonic MHMF152L1G6M is a high-performance AC servo motor from the industry-leading MINAS A6 Series. Specifically engineered for high inertia applications, this 1.5kW motor provides exceptional motion stability and vibration suppression, making it the premier choice for driving heavy mechanical loads or systems with fluctuating inertia.

Equipped with a 23-bit high-resolution encoder, an integrated electromagnetic brake, and a robust IP67-rated enclosure, the MHMF152L1G6M is built for precision, safety, and durability in demanding industrial environments.

Technical Specifications
Feature Specification
Model Number MHMF152L1G6M
Series MINAS A6 Family (Medium Type)
Rated Output 1.5 kW (1500W)
Voltage 200 V
Inertia Type High Inertia
Rated Torque 7.16 N*m (Peak: 21.5 N*m)
Rated Speed 2000 r/min (Max: 3000 r/min)
Brake Specification Built-in Electromagnetic Brake (24V DC)
Encoder 23-bit Absolute/Incremental (8,388,608 ppr)
Shaft Design Keyway shaft
Protection Rating IP67 (Dust-proof and Waterproof)
Oil Seal Included (with protective lip)
Key Features & Industrial Benefits

1. Superior Stability for Heavy Loads

As a High Inertia motor, the MHMF152L1G6M is optimized for machines with a high load-to-motor inertia ratio. This design prevents mechanical resonance and ensures smooth motion control during rapid acceleration and deceleration, significantly reducing settling time.

2. Integrated Fail-Safe Brake

The "G" in the model code indicates a built-in electromagnetic brake. This is essential for vertical axis (Z-axis) applications, as it holds the load securely in place during power loss or emergency stops, protecting both the operator and the equipment.

3. Ultra-High Precision Feedback

The advanced 23-bit optical encoder provides over 8 million pulses per revolution. This industry-leading resolution allows for sub-micron positioning accuracy and minimizes torque ripple, ensuring the highest surface finish quality in machining applications.

4. Rugged IP67 Protection

Engineered for the factory floor, the IP67 rating ensures the motor is completely dust-tight and can withstand powerful water jets or temporary immersion. The added oil seal makes it perfectly suited for environments containing cutting fluids or lubricants.

Common Industrial Applications
  • CNC Machine Tools: High-torque feed axis and spindle control
  • Vertical Actuators: Z-axis movement in gantry robots and assembly lines
  • Large-scale Packaging: Heavy-duty material handling and palletizing
  • Textile Machinery: Stable tension control for high-speed weaving
  • Industrial Robotics: Primary axis motors for medium-to-heavy payload robots
System Compatibility

To achieve maximum performance, the MHMF152L1G6M is typically paired with the following Panasonic components:

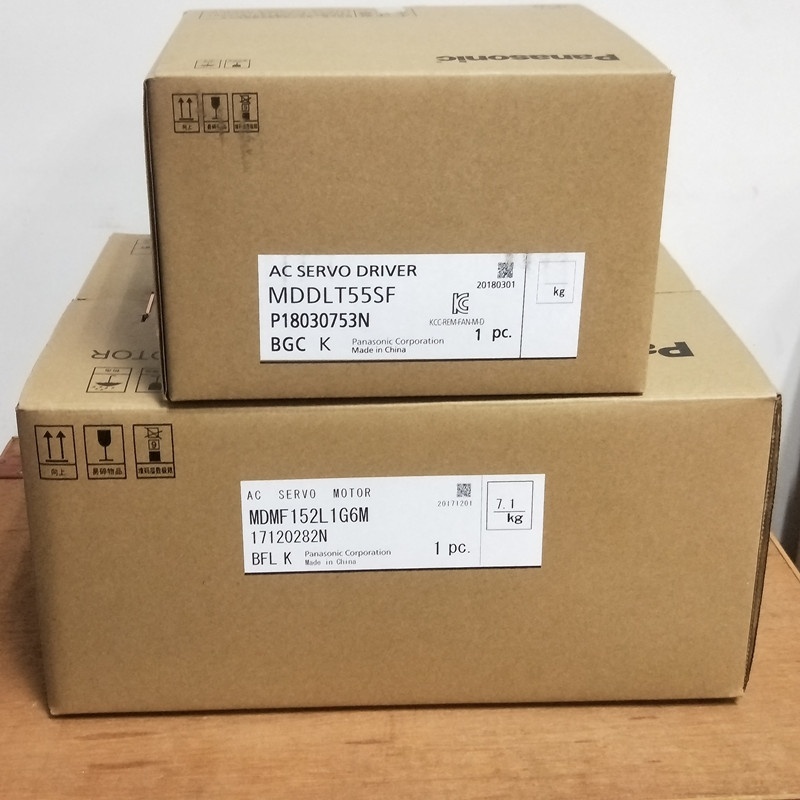

  • Servo Driver: Panasonic MDDLT55SF (MINAS A6 Series, B-Frame)
  • Cables: MFECA series high-flex encoder cables and MFECA power cables
  • Software: PANATERM for Windows for auto-tuning and vibration suppression
