PLT-SEC-T3-24-FM-PT Phoenix Contact Type 3 surge protection device 2907925
PLT-SEC-T3-24-FM-PT Phoenix Contact Type 3 surge protection device 2907925
PLT-SEC-T3-24-FM-PT Phoenix Contact Type 3 surge protection device 2907925
PLT-SEC-T3-24-FM-PT Phoenix Contact Type 3 surge protection device 2907925
PLT-SEC-T3-24-FM-PT Phoenix Contact Type 3 surge protection device 2907925
PLT-SEC-T3-24-FM-PT Phoenix Contact Type 3 surge protection device 2907925
Specifications
Brand Name :
Phoenix Contact
Model Number :
PLT-SEC-T3-24-FM-PT
Place of Origin :
Thailand
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500pcs/month
Delivery Time :
In stock
Packaging Details :
original package
Condition :
original brand new
Warranty :
one year
Application :
automation industry
Shipping way :
DHL FedEx
Description

Type 3 surge protection, consisting of protective plug and base element, with integrated status indicator and remote signaling for single-phase power supply networks. Nominal voltage: 24 V AC/DC

Indicator/remote signaling
Connection name Remote fault indicator contact
Switching function Changeover contact
Operating voltage 250 V AC
125 V DC (200 mA DC)
Operating current 0.5 A AC
0.5 A DC (75 V DC)
Connection method Push-in connection
Conductor cross-section flexible 0.2 mm² ... 2.5 mm²
Conductor cross-section rigid 0.2 mm² ... 4 mm²
Conductor cross-section AWG 24 ... 12

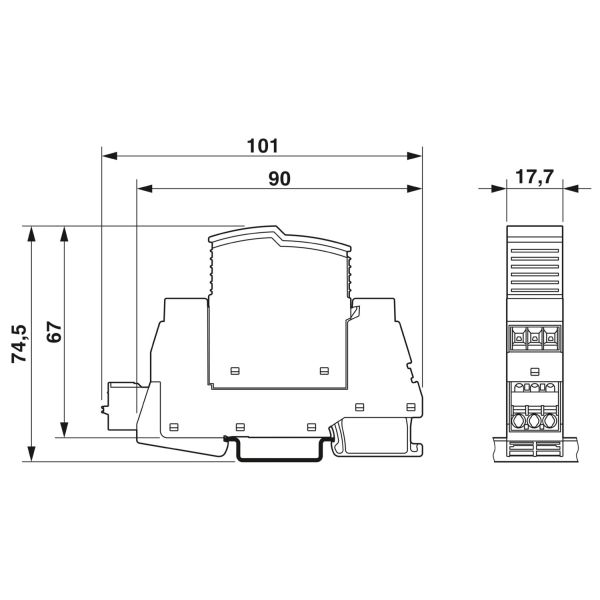

Dimensional drawing PLT-SEC-T3-24-FM-PT Phoenix Contact Type 3 surge protection device 2907925
Width 17.7 mm
Height 101 mm
Depth 74.5 mm (incl. DIN rail 7.5 mm)
Horizontal pitch 1 Div.
