Specifications
Brand Name :
MTL
Model Number :
MTL5541S
Place of Origin :
England
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
ship out immediately after payment received
Packaging Details :
original package
Condition :
original brand new
Warranty :
one year
Shipping way :
DHL FedEx express
Application :
Automation Industries, oil, gas, chemical industries
Certificate :
CE ISO TUV
Description

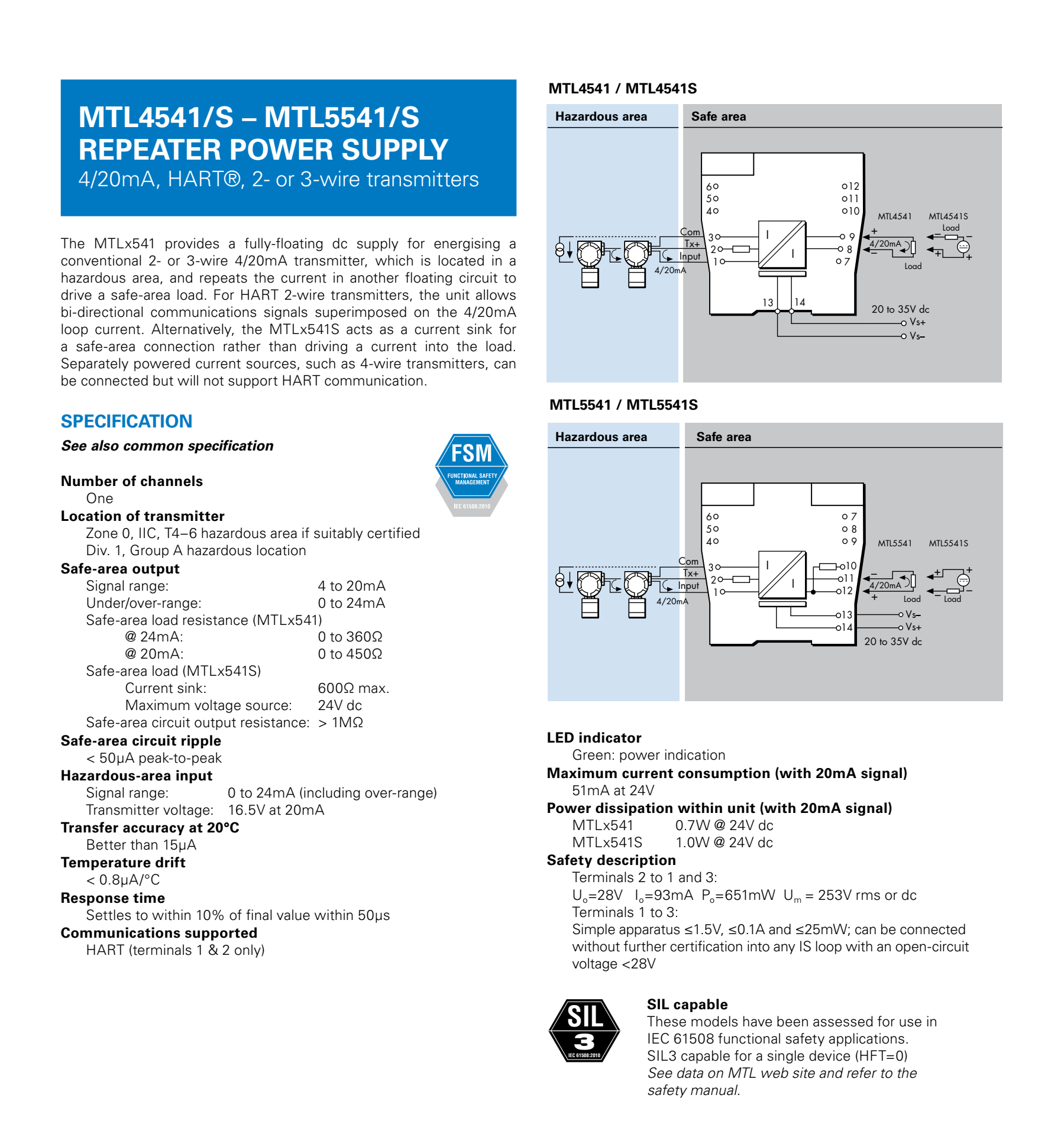

Eaton Crouse-Hinds series MTL5500 repeater power supply, 1 channel, Analogue input, 24 Vdc max., 20-35 Vdc, 1.0W at 24 Vdc dissipation, 51mA at 24V, 4-20mA signal, HART (terminals 1 & 2 only), LED: Green = power, 2- or 3-wire transmitters

Product Name
Eaton Crouse-Hinds series MTL5500 repeater power supply
Catalog Number
MTL5541S - FSM ASSESSED
EAN
3066227675819
Product Length/Depth
109.8 mm
Product Height
118.8 mm
Product Width
15.8 mm
Product Weight
150 g
Global Catalog
MTL5541S
Product Type
Repeater power supply
Type
2- or 3-wire transmitters
Area classification
Hazardous/Classified Locations
Standards type
IEC
IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 0
Minimum Ambient Operating Temperature
-20 °C
Maximum Ambient Operating Temperature
60 °C
Minimum Ambient Storage Temperature
-40 °C
Maximum Ambient Storage Temperature
80 °C
Humidity
5-95% relative humidity
Signal Type
Analogue input
Signal Range
4-20mA
Response Time
Settles to within 10% of final value within 50µs
Number of Channels
1
Terminal Capacity
Accepts conductors of up to 2.5mm2 stranded or single-core
Mounting Method
T-section 35mm DIN rail
EMC
EN61326
Ripple
<50µA peak-to-peak
Safety Integrity Level According to IEC61508
SIL2 and SIL3
Communication Supported
HART (terminals 1 & 2 only)
Electrical Connection
Crimp ferrules
Power Supply
20-35 Vdc
Current Consumption
51mA at 24V
Maximum Safe Voltage
24 Vdc
Galvanic Isolation
250V rms between safe-area circuits and power supply
LED Indication
Yes
LED Color - Power
Green
Power Dissipation
1.0W at 24 Vdc
Transfer Accuracy
Better than 15µA
Temperature Drift
<0.8µA/°C
