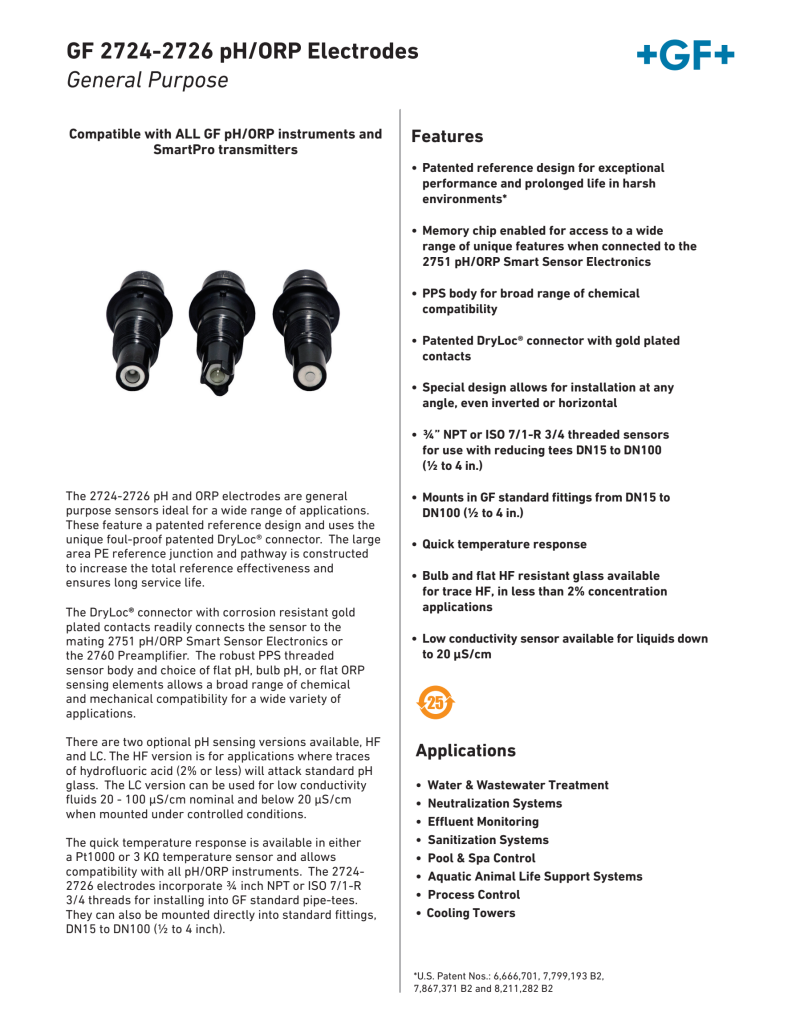

Type 2724-2726 pH/ORP Electrodes

General Purpose

Compatible with ALL pH/ORP instruments and SmartPro transmitters

Product description

The 2724-2726 pH and ORP electrodes are general purpose sensors ideal for a wide range of applications. These feature a patented reference design and uses the unique foul-proof patented DryLoc® connector. The large area PE reference junction and pathway is constructed to increase the total reference effectiveness and ensures long service life.

The DryLoc® connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2751 pH/ORP Smart Sensor Electronics. The robust PPS threaded sensor body and choice of flat pH, bulb pH, or flat ORP sensing elements allows a broad range of chemical and mechanical compatibility for a wide variety of applications.

There are two optional pH sensing versions available, HF and LC. The HF version is for applications where traces of hydrofluoric acid (2% or less) will attack standard pH glass. The LC version can be used for low conductivity fluids 20–100 μS/cm nominal. The 2724-2726 electrodes incorporate o-ring seal for use with ½“ to 4“ GF Installation fittings. They can also be mounted directly into reducing tees, DN20 to DN100 (¾ to 4 inch). Sensor tip must be in flow path.

Features

• Patented reference design for exceptional performance and prolonged life• UHMW polyethylene reference junction

• Memory chip enabled for access to a wide range of unique features when connected tothe 751 pH/ORP Smart Sensor Electronics

• PPS body for broad range of chemical compatibility

• Patented DryLoc® connector with gold plated contacts

• Special design allows for installation at any angle, even inverted or horizontal

• Mounts in GF standard installation fittings from DN15 to DN100 (½ to 4 in.)• ¾” NPT or ISO 7/1-R 3/4 threaded sensors for use with reducing tees DN20 to DN100 (¾to 4 in.)

• Quick temperature response• Bulb and flat HF resistant glass available for trace HF, in less than 2% concentrationapplications• Low conductivity sensor available for liquids from 20–100 μS/cm

* U.S. Patent Nos.: 6,666,701, 7,799,193 B2, 7,867,371 B2 and 8,211,282 B2

Applications

• Monitoring

• Industrial Water Treatment

• Municipal Water Treatment

• Aquaculture

• Aquatic Life Support System

• Agriculture

• Water Parks
