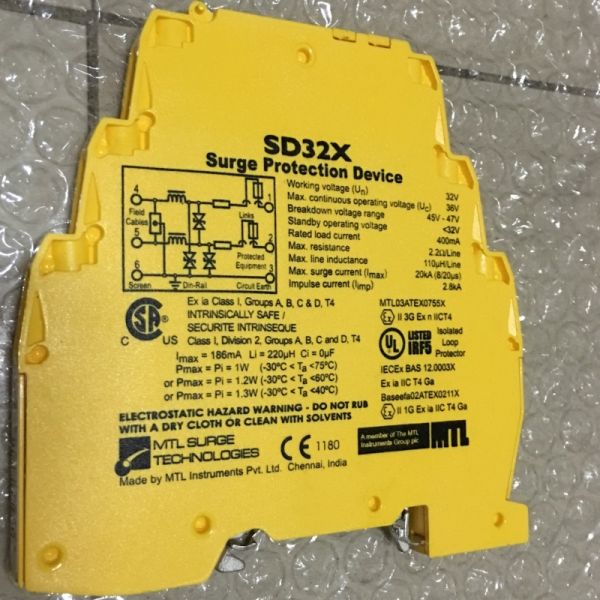

Eaton SD32X DIN Rail Mount Surge Protection Device
Product Overview

The SD32X is a high-performance signal and data line surge protection device (SPD) from Eaton's MTL SD series (Crouse-Hinds series), specifically engineered to safeguard sensitive electronic equipment, PLCs, DCS systems, and field instrumentation from damaging voltage transients and lightning-induced surges on signal and I/O cabling.

With a nominal voltage rating of 32V DC / 22V AC and a compact ultra-slim design, the SD32X is the ideal solution for protecting 4-20mA loops, digital outputs, alarms, LEDs, solenoid valves, and other process control applications requiring reliable signal integrity.

Model Number Decoding: SD32X
Code Segment Meaning
SD Surge Protection Device (SPD) — MTL SD series
32 Nominal voltage rating — 32V DC / 22V AC
X Denotes the low-resistance variant with 400mA nominal current, optimized for higher bandwidth applications
Key Features & Benefits
  • 20kA Maximum Surge Current: Robust protection against lightning strikes and power grid switching transients
  • Optimized for 4-20mA Loops: Specifically engineered for process I/O applications with negligible signal degradation
  • Ultra-Slim DIN Rail Mounting: Compact 7mm width for standard 35mm DIN rail installation
  • Low Series Resistance: Designed for higher bandwidth applications — minimizes signal interference
  • ATEX Certified: Intrinsically safe for Zone 2 hazardous areas
  • Fast Response Time: Responds to overvoltage events in less than 1 nanosecond
  • Auto-Resetting: Self-resets after each surge event — no manual intervention required
  • 10-Year Product Warranty: Backed by Eaton MTL's industry-leading "No Fuss" warranty
Technical Specifications
Parameter Value
Manufacturer Eaton (Crouse-Hinds series MTL) / MTL Surge Technologies
Product Model SD32X
Nominal Voltage DC (Un) 32V DC
Nominal Voltage AC (Un) 22V AC
Max. Continuous Operating Voltage (MCOV) 36V AC
Nominal Current (In) 400mA
Maximum Surge Current (8/20 μs) 20kA
Nominal Discharge Current (8/20 μs) 3kA
Series Resistance Low resistance — optimized for higher bandwidth
Bandwidth 25kHz
Response Time <1ns
Dimensions (W x H x D) 7mm x 101.3mm x 99mm (approximate)
Operating Temperature -40°C to +80°C
Protection Technology Multistage hybrid (GDT + solid-state)
Certifications ATEX certified for Zone 2 hazardous areas
Warranty 10 years
Applications
Industry Application
Process Control Protection of 4-20mA loops, PLCs, DCS systems, and remote I/O
Oil & Gas Offshore platforms, refineries, pipelines — protects fire and gas detectors
Chemical Processing Reactor monitoring, flow measurement with ATEX certification
Industrial Automation Digital outputs, alarms, LEDs, solenoid valves, and control signals
Hazardous Areas ATEX Zone 2 classified locations requiring intrinsically safe protection
Why Choose the SD32X?

Optimized for Signal Integrity — Features low series resistance design for higher bandwidth applications, ensuring accurate 4-20mA measurement and reliable HART communication.

Certified for Hazardous Areas — ATEX certified with IECEx approvals for installations in potentially explosive atmospheres.

Ultra-Slim Footprint — 7mm width enables high-density mounting on DIN rails, saving valuable panel space.

Proven MTL SD Series Reliability — Field-proven globally with multistage hybrid circuitry, 20kA surge capacity, and 10-year warranty.

Model Comparison
SD32 Family Comparison
Model
Voltage (Un)
Nominal Current
Series Resistance
Primary Application
SD32
32V DC / 22V AC
400mA
Standard
General purpose process I/O
SD32X
32V DC / 22V AC
400mA
Low
Higher bandwidth applications
SD32R
32V DC
400mA
Standard
Standard resistance applications
Compliance & Certifications
Certification Status Details
ATEX Certified Intrinsically safe for Zone 2 hazardous areas
IECEx Certified International certification for explosive atmospheres
SIL 3 Suitable Suitable for use in SIL-rated loops per IEC 61508/61511
RoHS Compliant Lead-free / RoHS3 compliant
UL Certified UL E220693
