EATON SLP07D 7V DC Dual Channel 20kA DIN Rail Mount Signal Surge Protection Device for RS485 Analog I/O
EATON SLP07D 7V DC Dual Channel 20kA DIN Rail Mount Signal Surge Protection Device for RS485 Analog I/O
EATON SLP07D 7V DC Dual Channel 20kA DIN Rail Mount Signal Surge Protection Device for RS485 Analog I/O
EATON SLP07D 7V DC Dual Channel 20kA DIN Rail Mount Signal Surge Protection Device for RS485 Analog I/O
EATON SLP07D 7V DC Dual Channel 20kA DIN Rail Mount Signal Surge Protection Device for RS485 Analog I/O
EATON SLP07D 7V DC Dual Channel 20kA DIN Rail Mount Signal Surge Protection Device for RS485 Analog I/O
EATON SLP07D 7V DC Dual Channel 20kA DIN Rail Mount Signal Surge Protection Device for RS485 Analog I/O
EATON SLP07D 7V DC Dual Channel 20kA DIN Rail Mount Signal Surge Protection Device for RS485 Analog I/O
EATON SLP07D 7V DC Dual Channel 20kA DIN Rail Mount Signal Surge Protection Device for RS485 Analog I/O
EATON SLP07D 7V DC Dual Channel 20kA DIN Rail Mount Signal Surge Protection Device for RS485 Analog I/O
Specifications
Brand Name :
MTL
Model Number :
SLP07D
Place of Origin :
India
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
ship out immediately after payment received
Packaging Details :
original package
Certification :
CE SIL3
Condition :
original brand new
Warranty :
one year
Series :
Eaton Crouse-Hinds series
Shipping way :
DHL FedEx express
Application :
Automation Industries, oil, gas, chemical industries
Certificate :
CE ISO TUV
Description

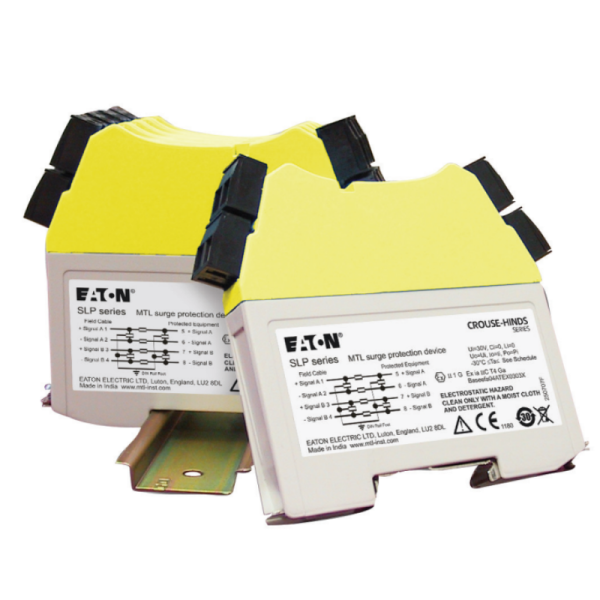

EATON SLP07D 7V DC DIN Rail Mount Surge Protection Device
SLP07D is a high-performance DIN rail mounted signal surge protection device designed for low voltage industrial analog and digital signal circuits. With rated voltage of 7V DC, dual-channel loop structure and ultra-fast response time, this surge arrester provides reliable overvoltage protection for field instrument signals, effectively protecting PLC modules, transmitters, RS485 communication interfaces and process I/O equipment from lightning surge and transient overvoltage damage.
Adopting high bandwidth circuit design and low insertion loss technology, SLP07D ensures stable signal transmission while maintaining excellent surge suppression performance. It supports standard DIN rail installation with compact structure and easy wiring, making it suitable for industrial automation, power monitoring, chemical industry and intrinsically safe industrial sites.
Key Features
  • Model: SLP07D
  • Rated operating voltage: 7V DC
  • Dual channel / dual loop signal protection
  • DIN rail mounting, compact industrial housing
  • Ultra fast response time, low signal attenuation
  • High bandwidth for analog signal & RS485 communication
  • Stable performance for continuous industrial operation
  • Reliable surge suppression for transient overvoltage and lightning induction
Applications
  • Industrial process control I/O signal protection
  • 4-20mA analog transmitter signal circuits
  • RS485 / RS232 communication interface protection
  • PLC input & output module protection
  • Field instrument signal anti-surge protection
  • Automation control cabinet and industrial control system

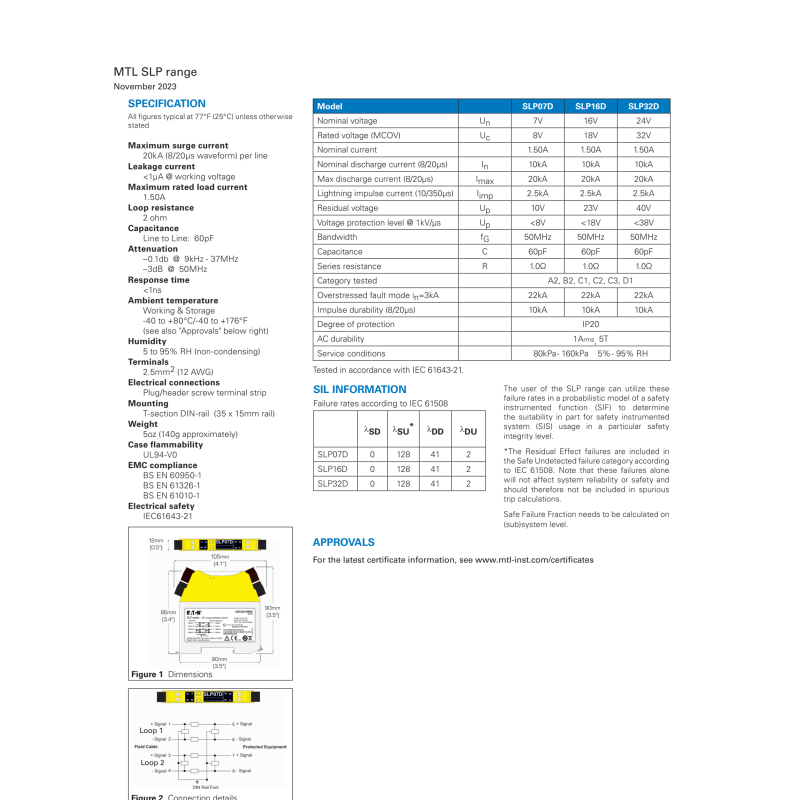

Specification Summary
Protection Type Signal Surge Arrester / SPD
Rated Voltage 7V DC
Channel Dual Loop
Mounting DIN Rail Standard
Response Speed Ultra-fast transient suppression
Insertion Loss Low
Suitable Signal Analog Signal, Digital Signal, RS485
