3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
Specifications
Brand Name :
WEIDE
Model Number :
400W
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
80 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/years
Delivery Time :
15days
Packaging Details :
10.00cm * 6.00cm * 12.00cm 3.5kg
Name :
AC Servo Motor
WDM4 :
High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor
Feedback Units Available :
2500-line incremental encoder; 2500-line line-saving encoder; 17-bit single-turn absolute photoelectric encoder; 17-bit multi-turn absolute photoelectric encoder; 23-bit single-turn absolute photoelectric encoder; 23-bit multi-turn absolute photoelectric e
Compatible Drivers :
German B, B2, B2D, B2E, EH series drivers
Power Range :
0.1~7.5 KW
Motor Frame Sizes :
60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six sizes available)
Motor Components :
Support brake, oil seal
Description
3000rpm High Speed 1.27nm High Torque AC Servo Motor with 2500PPR Incremental Encoder and B Series Universal Servo Drive
60flange 3000rpm 1.27nm High Speed AC Servo with 400W Servo Drive & Motor
Model: 400W
Certification: CCC, ISO 9001, CE
Material: Aluminum Alloy
Control Type: PWM Sine Wave Vector Control

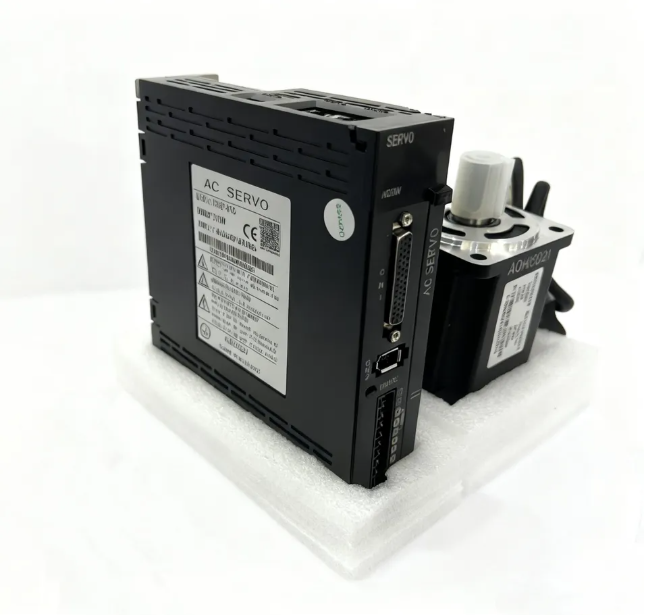

Product Overview
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
B Series Universal Servo Driver & Motor Features:
  • Position Control Mode with adaptive feedback
  • 2500ppr incremental encoder compatibility
  • Advanced IPM (Intelligent Power Module) technology
  • Optimized braking unit for frequent start/stop operations
  • Easy operation with 4-key interface for testing and monitoring
  • Adaptive power range: 0.1~3.8KW

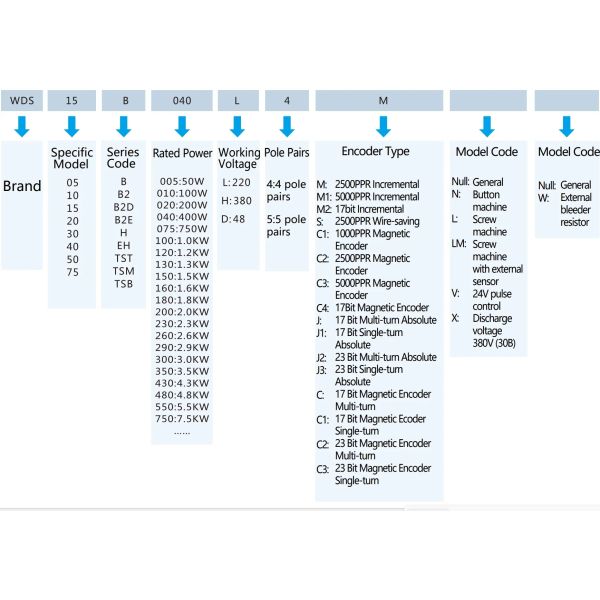

Technical Specifications
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
Model No. Output Power (KW) Rated Torque (N.m)
10B 0.05-0.4 0.01-1.3
15B 0.6-1.0 1.9-4
20B 1.0-1.3 4-10
30B 1.5-3.8 6-15
Operating Conditions
Input Power: Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Temperature Range: Working: 0~40℃; Storing: -40~50℃
Humidity: Working: 40%~80% (no dew); Storing: below 93% (no dew)
IP Grade: IP20

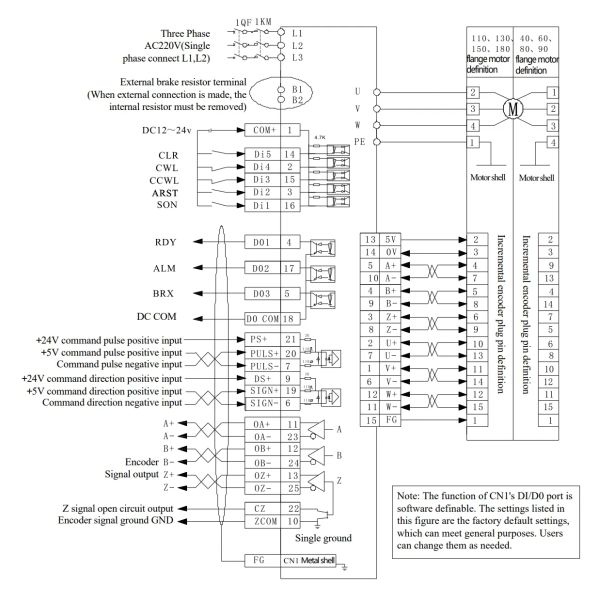

Control & Monitoring
Control Mode: PWM sine wave vector control
Feedback Mode: 2500PPR incremental encoder
Digital Inputs: Servo ON, Alarm Clear, Limit Switches, Emergency Stop
Digital Outputs: Servo Ready, Alarm, Position Completed, Speed Arrival
Monitor Functions: Speed, current position, position deviation, motor torque, current
Performance Features
Speed Frequency Response: >400Hz
Speed Regulation Ratio: 1:5000
Speed Fluctuation: <±0.03% (load 0~100%)

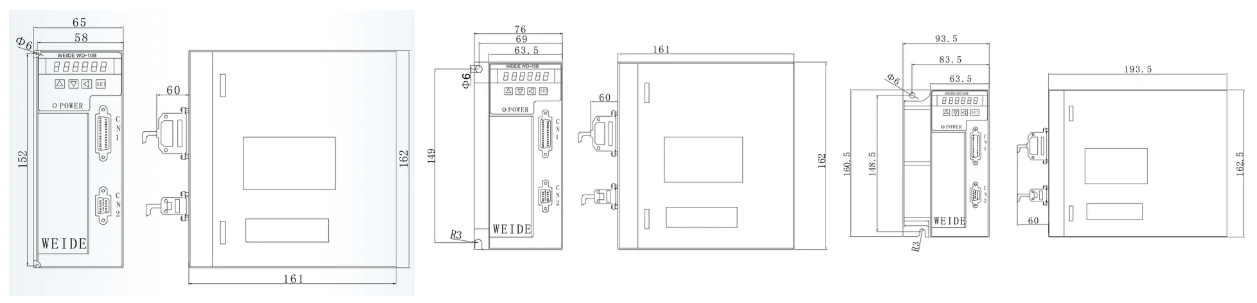

Dimensions & Installation
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors 3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
Certifications & Compliance
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors 3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors

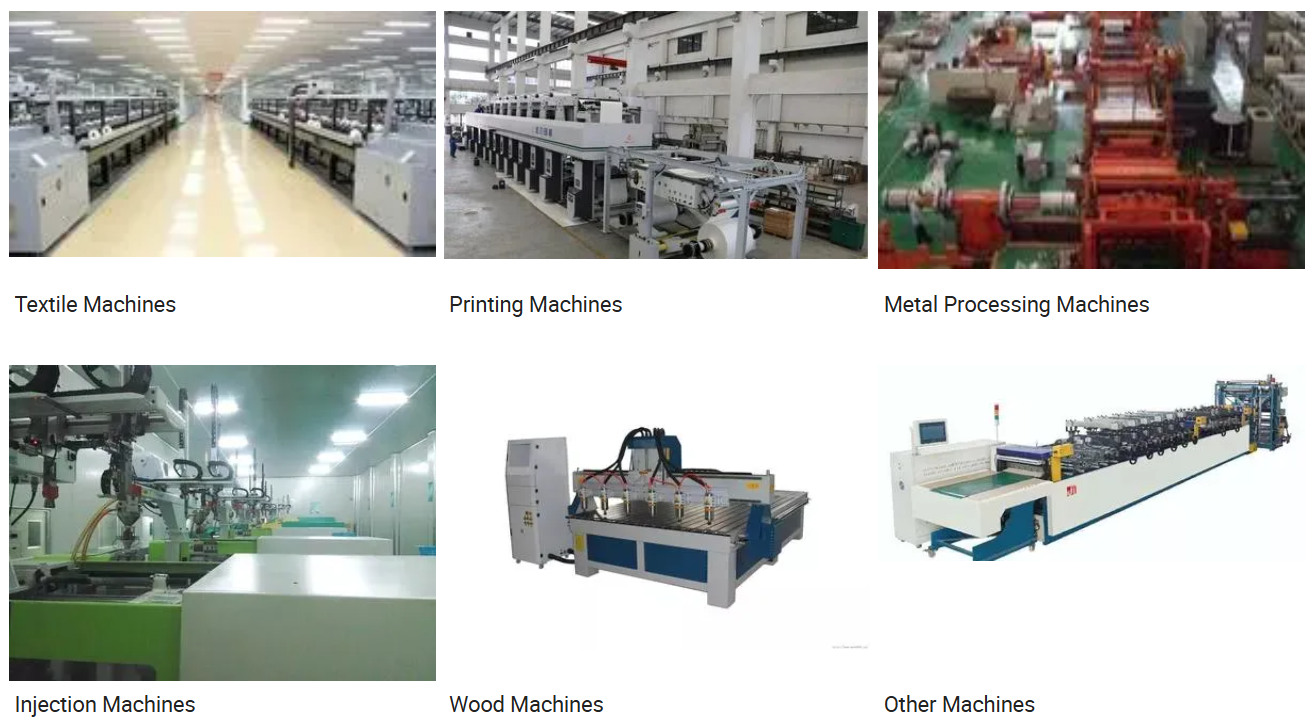

Industry Applications
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
Packaging & Delivery
3000rpm 1.27nm AC Servo Motor 60 Flange High Speed Servo Motors
