High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
Specifications
Brand Name :
WEIDE
Model Number :
130ST-CJ111515L5
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
229 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/years
Delivery Time :
15days
Packaging Details :
10.00cm * 6.00cm * 12.00cm 3.5kg
Name :
OEM Servo Motor
WDM4 :
High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor
Feedback Units Available :
2500-line incremental encoder; 2500-line line-saving encoder; 17-bit single-turn absolute photoelectric encoder; 17-bit multi-turn absolute photoelectric encoder; 23-bit single-turn absolute photoelectric encoder; 23-bit multi-turn absolute photoelectric e
Compatible Drivers :
German B, B2, B2D, B2E, EH series drivers
Power Range :
0.1~7.5 KW
Motor Frame Sizes :
60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six sizes available)
Motor Components :
Support brake, oil seal
Description
High-Precision 1.8kw 1500rpm AC Servo Motor with 2500PPR Incremental Encoder for Textile Machinery
Product Specifications
Model Number 130ST-CJ111515L5
Mathematical Model Linear
Signal Type Continuous
Function Automatic Control, Protection
Certifications CCC, ISO: 9001, CE
Condition New
Material Aluminum Alloy
Input Power Single Phase L1, L2/Three Phase L1, L2, L3 AC220V
Operating Temperature Working: 0~40℃; Storing: -40~50℃
Control Type PWM Sine Wave Vector Control
Feedback Mode 2500PPR Incremental Encoder

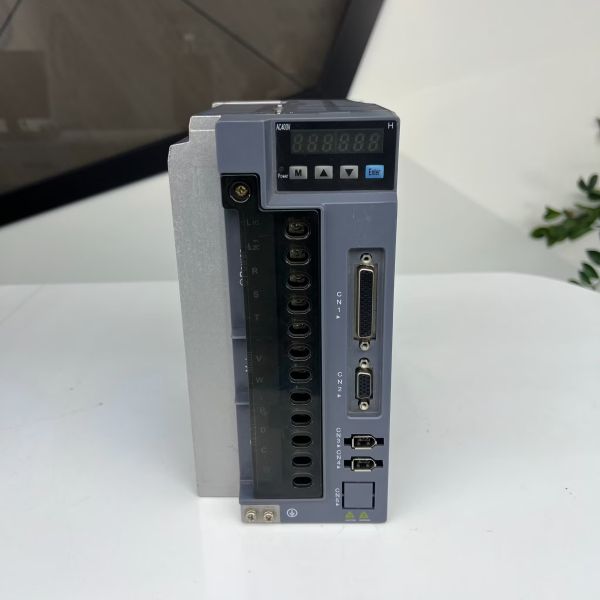

B Series Universal Servo Driver & Motor
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
  • Control Mode: Position Control
  • Adaptive feedback unit: 2500ppr incremental encoder; 2500ppr wire-saving encoder
  • Adopting the newest IPM (intelligent power module) with small size, high over capacity and reliability
  • Optimized braking unit, suitable for frequent start and stop operations
  • Easy to operate with trial operation, monitoring and parameter setting via 4 keys
  • Adaptive power range: 0.1~3.8KW
Model Specifications
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
Model No. 10B 15B 20B 30B
Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Technical Specifications
Input Power Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Temperature Range Working: 0~40℃; Storing: -40~50℃
Humidity Working: 40%~80% (no dew); Storing: below 93% (no dew)
IP Grade IP20
Control Mode PWM sine wave vector control
Regenerative Braking Built-in brake resistor for power above 0.4KW; external resistor for large inertia applications
Driver Dimensions
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
Wiring Diagram
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
Certifications & Compliance
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
Industry Applications
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
Packaging & Delivery
High Precision OEM Servo Motor 1.8kw 1500 Rpm AC Motor For Textile Machinery
