IP30 Industrial PLC Controller 200kHz PLC Programmable Controller Customized

Specifications

Brand Name :

Samkoon

Model Number :

FAT Series PLC

Certification :

Place of Origin :

CHINA

MOQ :

Price :

145 USD

Payment Terms :

L/C,T/T

Supply Ability :

2, 500, 000/Year

Delivery Time :

15days

Packaging Details :

12*9*9 cm

Name :

Industrial PLC Controller

MountingType :

DIN Rail / Panel Mount

Product Family :

Basic Devices

Displaying :

LCD display

Mathematical Model :

Linear

Customized Support :

OEM, ODM, OBM

Thread Type :

M20 x 1.5 1/2" NPT

OutputType :

Relay / Transistor / Analog

Description

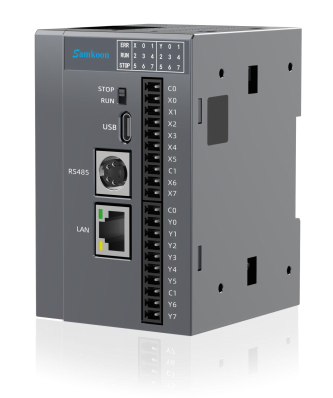

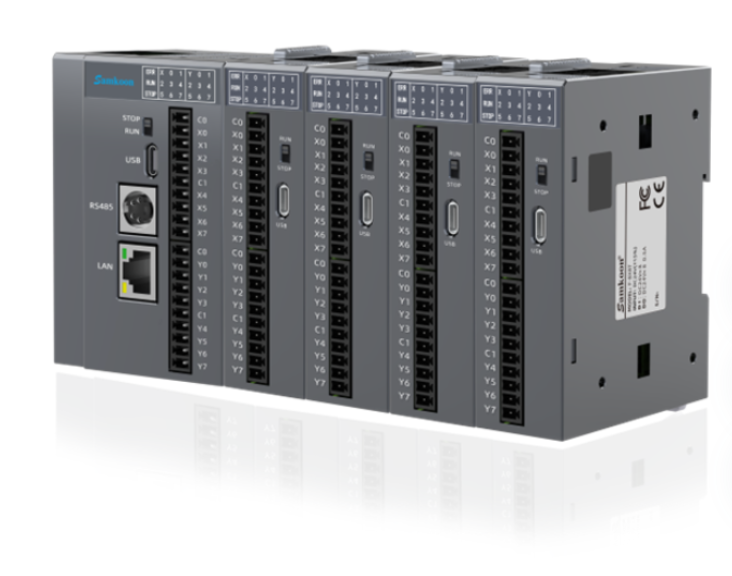

Samkoon FAT Series Industrial PLC with 10x Faster Execution, 64 Expansion Modules, and 200kHz High-Speed Pulse Output

Compact, high-performance programmable logic controller with 10x faster execution and support for 64 expansion modules

Product Overview

The FAT series PLCs offer compact design, reliable performance, and versatile connectivity for various industrial automation applications. Available models include FAT-16MT-DC-E, FAT-16MT-DC-N, and FAT-32MT-DC.

Key Specifications

Parameter	Specification
Model Series	FAT Series PLC
Power Supply	AC 100V ~ 240V
Dimensions	649772mm
Operating Environment	Temperature: -20°C ~ 55°C; Humidity: 5~95% (non-condensing)
Certifications	CCC, ISO 9001, CE, EMC
Digital Inputs	8 points (Supports SINK/SOURCE)
Digital Outputs	8 points (Transistor/NPN)
High-Speed I/O	4-way 200kHz high-speed pulse output; 4-way 200kHz counting input
Communication	Ethernet (Modbus TCP/IP), RS485 (Modbus RTU/Free), USB port
Protection Rating	IP30

Core Features

High-speed processing with compiled architecture executing native code directly (10x faster than interpreted architecture)
4-channel 200kHz high-speed pulse outputs and 4-channel high-speed counting inputs for precise motion control
Supports expansion of up to 64 modules via CAN communication (up to 1Mbps transmission rate)
Comprehensive security features including multi-level password protection and upload/download security
Multiple communication interfaces: Ethernet, RS485, and USB for flexible device networking

High-Speed Motion Control

Supports 4-channel 200kHz high-speed pulse outputs and 4-channel high-speed counting inputs for precise motion control and real-time response.

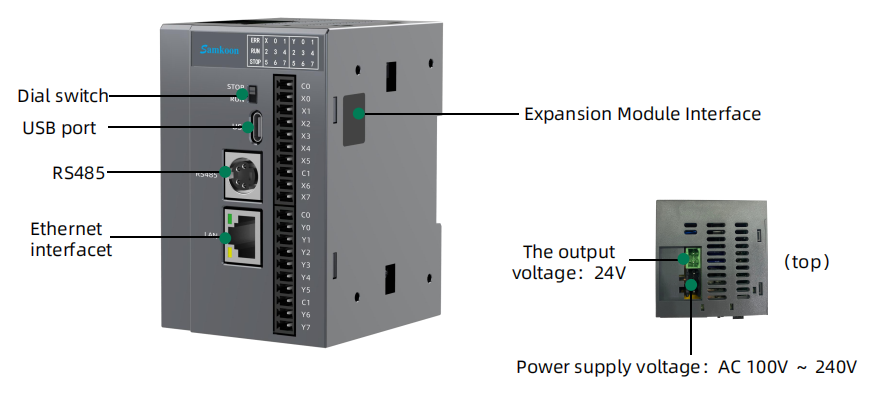

Versatile Communication Interfaces

Equipped with USB port, RS485 (supports Modbus RTU and free protocols), and optional Ethernet port (supports Modbus TCP/IP), enabling flexible device networking.

Flexible Module Expansion

Supports right-side expansion of up to 64 modules via CAN communication, with a transmission rate of up to 1Mbps for scalable system integration.

Robust Industrial Design

Compact size (64*97*72mm), operating temperature from -20°C to 55°C, vibration resistance up to 2G/30 minutes—engineered for harsh industrial conditions.

Model Naming Convention

FAT: FAT series PLC
16/32: Total input/output points (16: 8DI/8DO, 32: 16DI/16DO)
MT: Transistor output
D: DC power supply
C: Compiled type
E: With Ethernet port
N: Without Ethernet port

Detailed Specifications

Parameter	FAT-16MT-DC-E	FAT-16MT-DC-N	FAT-32MT-DC
Weight (g)	239	239	205
High-speed Counter	2 single-phase (X0,X2) 200kHz, 2 single-phase (X1,X3) 20kHz
AB Phase Counter	2 AB phase count (X0X1,X2X3) 200kHz
Digital Input	8	8	16
Digital Output	8	8	16
RS485 Ports	1	2	2
Ethernet Interface	YES	NO	NO

Key Advantages

High-Speed Processing
Powerful Motion Control
Extensive Expandability
Comprehensive Security Features

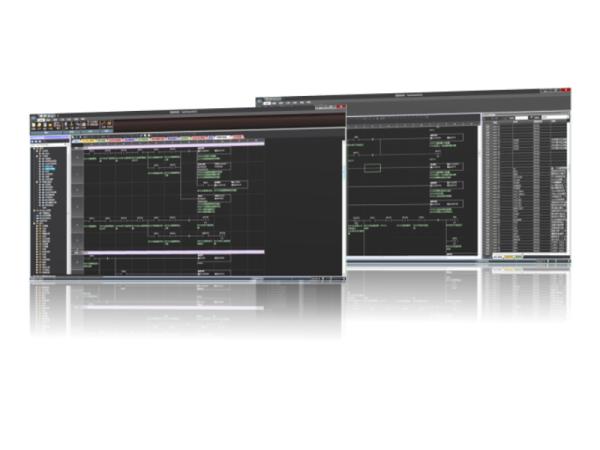

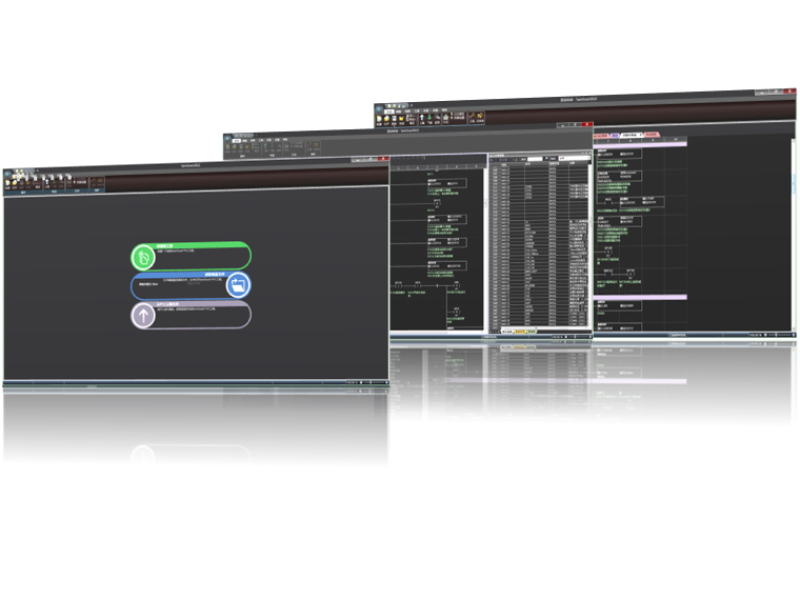

Efficient Programming & Communication

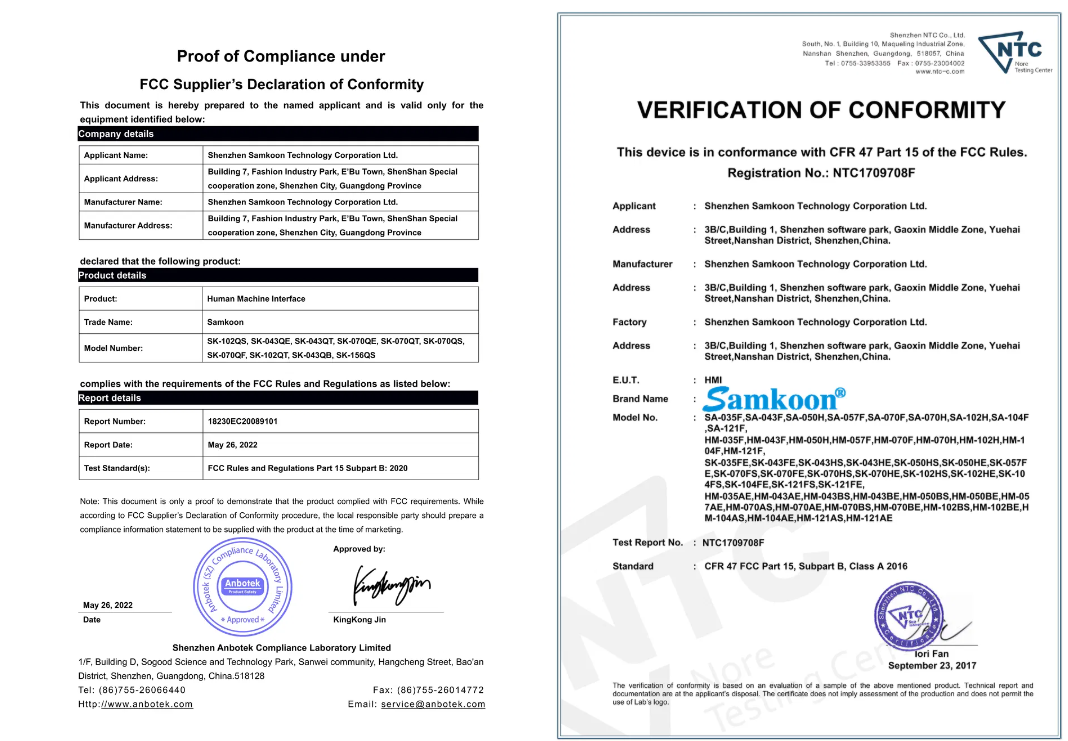

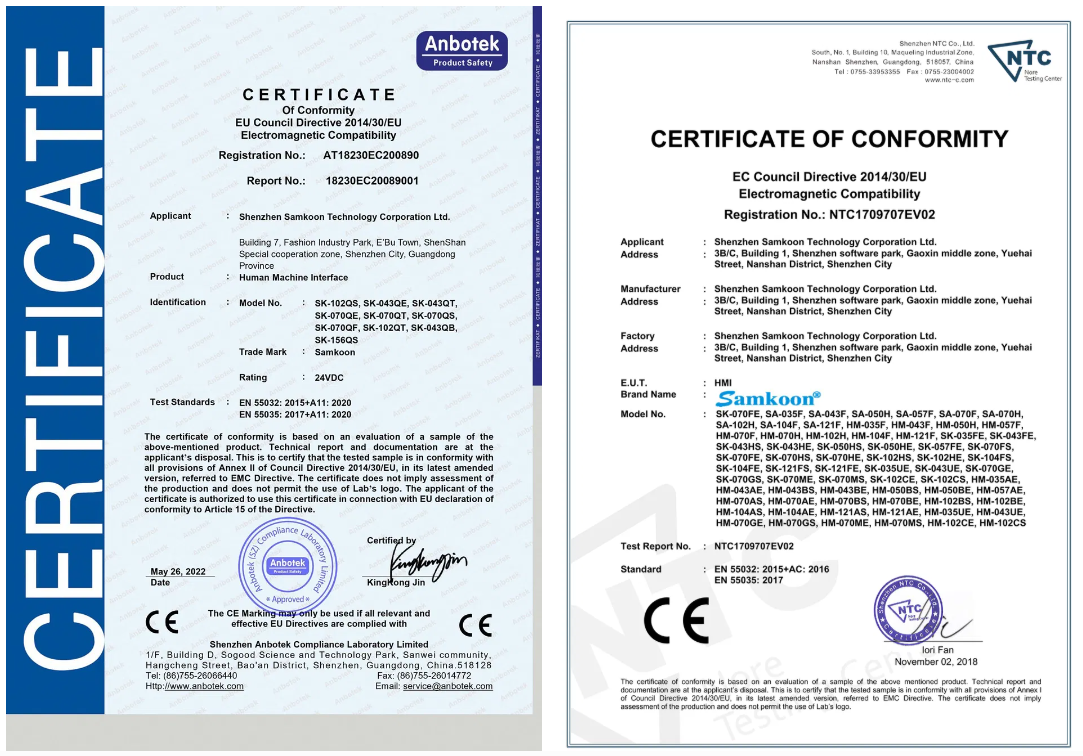

Certifications

CE, CCC, ISO 9001 and other international certificates with domestic honors.

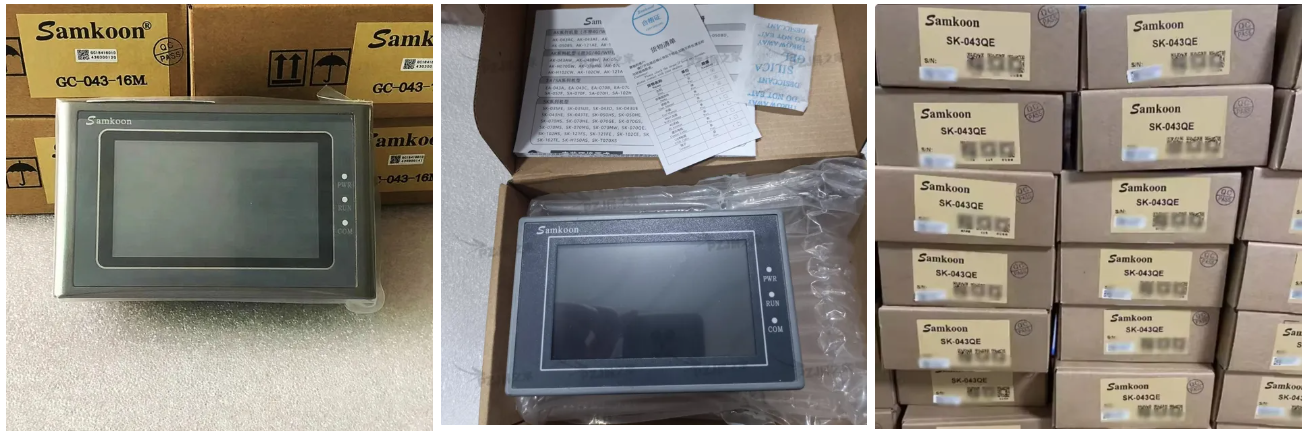

Packaging & Delivery

Frequently Asked Questions

What about the warranty?

We offer 12 months warranty period as the quality guarantee.

Can you do OEM?

Yes, we offer OEM services.

How about your service?

We provide pre-sale, in-sale, and after-sale service. Our principle is customer first for long-term cooperation.

What are your terms of delivery?

Generally we ship FOB, but can offer CNF, CIF, and DDP solutions based on your requirements.

What's the delivery time?

10 to 30 days after receiving your payment in advance.
