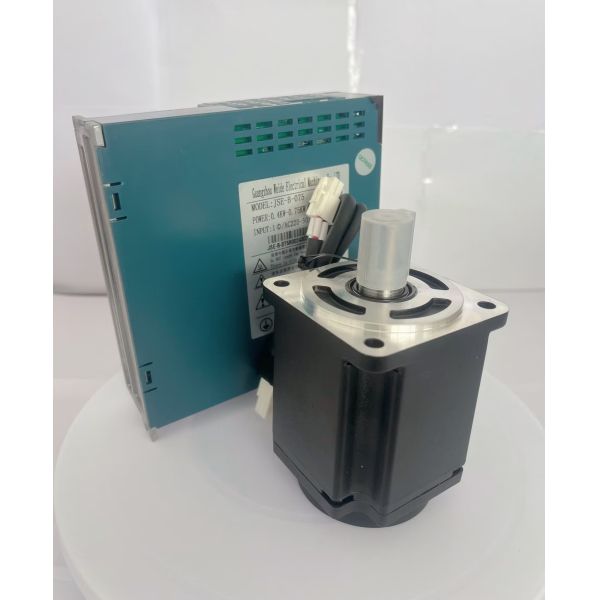

High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
Specifications
Brand Name :
WEIDE
Model Number :
TSE-B-D
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
80-110 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/years
Delivery Time :
15days
Packaging Details :
10.00cm * 6.00cm * 12.00cm 3.5kg
WDM4 :
High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor
Feedback Units Available :
2500-line incremental encoder; 2500-line line-saving encoder; 17-bit single-turn absolute photoelectric encoder; 17-bit multi-turn absolute photoelectric encoder; 23-bit single-turn absolute photoelectric encoder; 23-bit multi-turn absolute photoelectric e
Compatible Drivers :
German B, B2, B2D, B2E, EH series drivers
Power Range :
0.1~7.5 KW
Motor Frame Sizes :
60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six sizes available)
Motor Components :
Support brake, oil seal
Description
High Stability Precision Industrial Servo Motor with Integrated Digital Servo Drive

Advanced automation solution featuring integrated digital servo drive technology for precise motion control applications.

Product Specifications
Model Number
TSE-B-D
Mathematical Model
Linear
Certifications
CCC, ISO 9001, CE
Input Power
Single Phase L1, L2 / Three Phase L1, L2, L3 AC220V
Operating Temperature
Working: 0~40℃; Storing: -40~50℃
Control Type
PWM Sine Wave Vector Control
B Series Universal Servo Driver & Motor
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
  • Position Control Mode with adaptive feedback unit
  • 2500ppr incremental encoder and wire-saving encoder compatibility
  • Advanced IPM (Intelligent Power Module) for high reliability
  • Optimized braking unit for frequent start/stop operations
  • Easy operation with trial operation, monitoring, and parameter setting via 4 keys
  • Adaptive power range: 0.1~3.8KW
Model Specifications
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
Model No. 10B 15B 20B 30B
Output Power (KW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Technical Specifications
Input Power
Single Phase L1,L2 / Three Phase L1,L2,L3 AC220V ±15%
Operating Environment
Temperature: 0~40℃; Humidity: 40%~80% (no dew)
IP Grade
IP20
Control Mode
PWM sine wave vector control
Feedback Mode
2500PPR incremental encoder
Speed Regulation
1:5000 ratio
Driver Dimensions
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
Wiring Diagram
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
Certifications & Compliance
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
Industry Applications
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
Packaging & Delivery
High Stability Precision AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control for Automation
