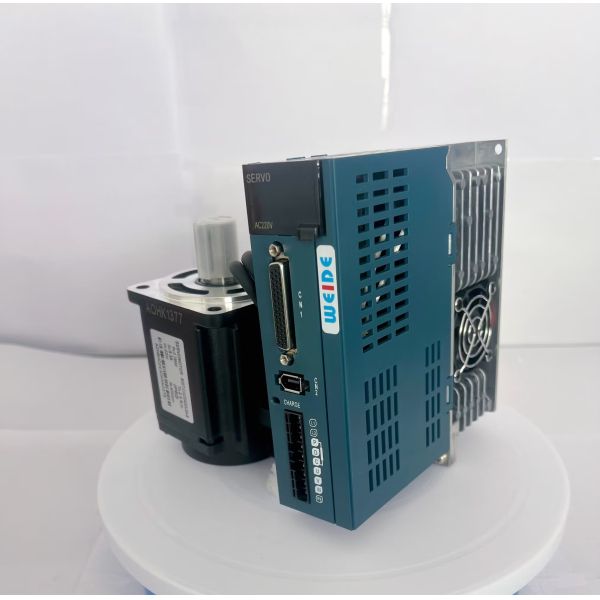

High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
Specifications
Brand Name :
WEIDE
Model Number :
TSE-B-D
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
80-110 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/years
Delivery Time :
15days
Packaging Details :
10.00cm * 6.00cm * 12.00cm 3.5kg
WDM4 :
High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor
Feedback Units Available :
2500-line incremental encoder; 2500-line line-saving encoder; 17-bit single-turn absolute photoelectric encoder; 17-bit multi-turn absolute photoelectric encoder; 23-bit single-turn absolute photoelectric encoder; 23-bit multi-turn absolute photoelectric e
Compatible Drivers :
German B, B2, B2D, B2E, EH series drivers
Power Range :
0.1~7.5 KW
Motor Frame Sizes :
60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six sizes available)
Motor Components :
Support brake, oil seal
Description
High Performance Industrial Precision Servo Motor with Integrated Digital Servo Drive
Advanced automation solution featuring integrated servo drive and motor for precise industrial control applications.
Product Specifications
Model Number: TSE-B-D
Certification: CCC, ISO 9001, CE
Material: Aluminum Alloy
Input Power: Single Phase/Three Phase AC220V
Operating Temperature: 0~40℃
Control Type: PWM Sine Wave Vector Control
B Series Universal Servo Driver & Motor Features
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
  • Position Control Mode with adaptive feedback
  • 2500ppr incremental encoder compatibility
  • Intelligent Power Module (IPM) technology
  • Optimized braking unit for frequent start/stop operations
  • Easy operation with 4-key interface for testing and monitoring
  • Power range: 0.1~3.8KW
Model Specifications
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
Model No. Output Power (KW) Rated Torque (N.m)
10B 0.05-0.4 0.01-1.3
15B 0.6-1.0 1.9-4
20B 1.0-1.3 4-10
30B 1.5-3.8 6-15
Technical Specifications
Input Power: Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Temperature Range: Working: 0~40℃; Storing: -40~50℃
Humidity: Working: 40%~80% (no dew); Storing: below 93% (no dew)
IP Grade: IP20
Control Mode: PWM sine wave vector control
Feedback Mode: 2500PPR incremental encoder
Speed Frequency Response: >400Hz
Speed Regulation Ratio: 1:5000
Driver Dimensions
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
Wiring Diagram
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
Certifications & Compliance
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
Industry Applications
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
Packaging & Delivery
High Performance AC Servo Motor with 2500PPR Incremental Encoder PWM Sine Wave Vector Control and Position Control
