1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
Specifications
Power Range :
0.1~7.5 KW
Brand Name :
WEIDE
Model Number :
1.3kw
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
247 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/years
Delivery Time :
15days
Packaging Details :
10.00cm * 6.00cm * 12.00cm 3.5kg
Motor Frame Sizes :
60mm, 80mm, 90mm, 110mm, 130mm, 180mm (six sizes available)
Motor Components :
Support brake, oil seal
Compatible Drivers :
German B, B2, B2D, B2E, EH series drivers
Name :
Servo AC Motor
WDM4 :
High-Precision Universal Permanent Magnet 8-Pole AC Servo Motor
Feedback Units Available :
2500-line incremental encoder; 2500-line line-saving encoder; 17-bit single-turn absolute photoelectric encoder; 17-bit multi-turn absolute photoelectric encoder; 23-bit single-turn absolute photoelectric encoder; 23-bit multi-turn absolute photoelectric e
Description
1.3kw 1500rpm AC Servo Motor with 2500PPR Incremental Encoder and B2 Series Universal Servo Drive
High-performance AC servo motor featuring 130mm flange, 1500rpm speed, 8.4Nm torque, and 220V operation with integrated brake system.
Product Specifications
Output Power
1.3kW
Rated Torque
8.4Nm
Rated Speed
1500rpm
Input Voltage
AC 220V ±15%
Flange Size
130mm
Encoder
2500PPR Incremental

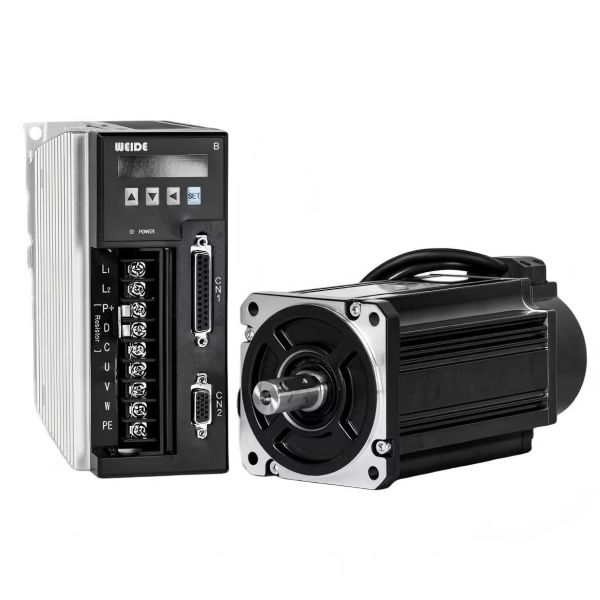

B2 Series Universal Servo Driver & Motor
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
  • Multiple control modes: Position, Speed, Torque, and Internal speed control
  • Adaptive feedback units: 2500PPR incremental encoder, wire-saving encoder, and 17-bit absolute encoder
  • RS485 Modbus communication interface
  • Speed and torque output function (0~5V analog output)
  • Advanced IPM technology for compact size, strong overload capacity, and high reliability
  • Optimized brake unit for frequent start-stop applications
  • User-friendly operation with 4-key interface for trial operation, monitoring, and parameter setting
  • Power range: 0.1~5.5kW
  • Configurable encoder frequency division
Technical Specifications
Parameter 10B 15B 20B 30B
Output Power (kW) 0.05-0.4 0.6-1.0 1.0-1.3 1.5-3.8
Rated Torque (N.m) 0.01-1.3 1.9-4 4-10 6-15
Environmental Specifications:
  • Operating Temperature: 0~40℃
  • Storage Temperature: -40~50℃
  • Operating Humidity: 40%~80% (no condensation)
  • Storage Humidity: Below 93% (no condensation)
  • IP Rating: IP20
Performance Features
  • Speed Frequency Response: >400Hz
  • Speed Fluctuation Ratio: <±0.03% (load 0~100%)
  • Speed Regulation Ratio: 1:5000
  • Control Mode: PWM sine wave vector control
  • Regenerative Braking: Built-in brake resistor for power above 0.4kW
  • Protection Functions: Overspeed, overvoltage, overcurrent, overload, abnormal braking, encoder abnormality, position error
Technical Documentation
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit 1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit 1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
Certifications & Compliance
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit 1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
Industry Applications
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit

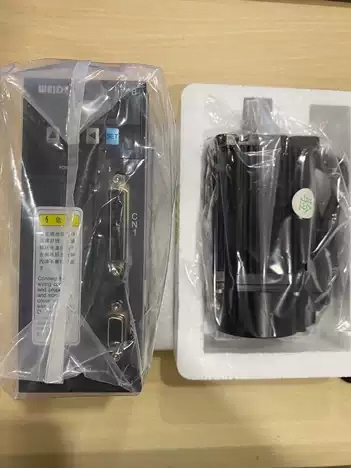

Packaging & Delivery
1.3kw 1500rpm Servo AC Motor 2500PPR Servo Motor Driver Kit
Standard packaging: Carton (355*305*310 mm)
