Specifications
Brand Name :
RENLE
Model Number :
RNHV-A-6/1600
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
19987USD
Payment Terms :
T/T
Supply Ability :
5000/Months
Delivery Time :
15~30days
Packaging Details :
12*9*9 m
Drive Type :
Frequency Inverter
Insulation Voltage :
800V/1600V
Humidityrange :
5% to 95% non-condensing
Model No :
N310-20P5
Output Voltage :
Customizable
Output Phase :
3phase
Energy Function :
Four-quadrant Energy regeneration
Output Power :
0.75KW-30000KW
Packaging Specifications :
50ml~1000ml
Input Voltage :
380V to 10000V
Shipping Method :
DHL/FedEx/EMS/TNT
Power Range :
2.2KW-5000KW
Motor Compatibility :
PMSM Motor
Voltage :
220V,380V,400V,415V,440V,460V,480V
Frequency Resolution :
0.01Hz
Accuracy :
0.5% for VF application
Protectionfeatures :
Overvoltage, undervoltage, overload, short circuit, phase loss
Displaytype :
LCD or LED display
Inputfrequency :
50/60 Hz
Response Speed :
Rapid
Application :
Pumps,fans,compresors,conveyors,Crane
Energy Regeneration :
Four-quadrant
Powerrating :
0.5 kW to 500 kW
Controlmethod :
V/f control, Vector control, Sensorless vector control
Torque Control :
Direct
Colour :
grey
Name :
Variable Frequency Drive
Description
RNHV Series Medium-Voltage Variable Frequency Drive
The RNHV series intelligent medium-voltage variable frequency drive utilizes power unit series connection technology to directly output 6kV/10kV voltage, representing a reliable voltage source medium voltage VFD solution.
Engineered for high reliability, user-friendly operation, and exceptional performance, this drive effectively meets energy-saving speed control requirements for industrial fans, pumps, and compressors, enhancing production efficiency and processes.
Each system undergoes rigorous inspection and performance testing before shipment, ensuring consistent quality and reliable performance for every equipment unit delivered.
Integrated Design & Installation
Featuring an integrated design concept that includes transformer cabinets, power cabinets, control cabinets, and optional medium-voltage switchgear with bypass cabinet, the RNHV series minimizes installation complexity. Users simply connect medium-voltage input/output cables, low-voltage control power supply, and control signal lines for rapid commissioning.
With integrated transportation and unilateral maintenance capabilities, the RNHV series offers convenient on-site installation, maintenance, and commissioning. The system incorporates metallized film DC support capacitors and internal mechanical bypass modules, providing higher reliability, maintenance-free operation, and extended lifespan compared to traditional electrolytic capacitors.
Technical Specifications
Model NumberRNHV Series
Input Voltage3kV / 6kV / 10kV (±10%)
Power Range160kW - 12,000kW
Control ModePG Vector / V/F Control
Frequency50/60Hz ±3%
Efficiency≥98.5% (Rated Load)
Power Factor≥0.96 (Load >20%)
CoolingForced Air Cooling (Standard)

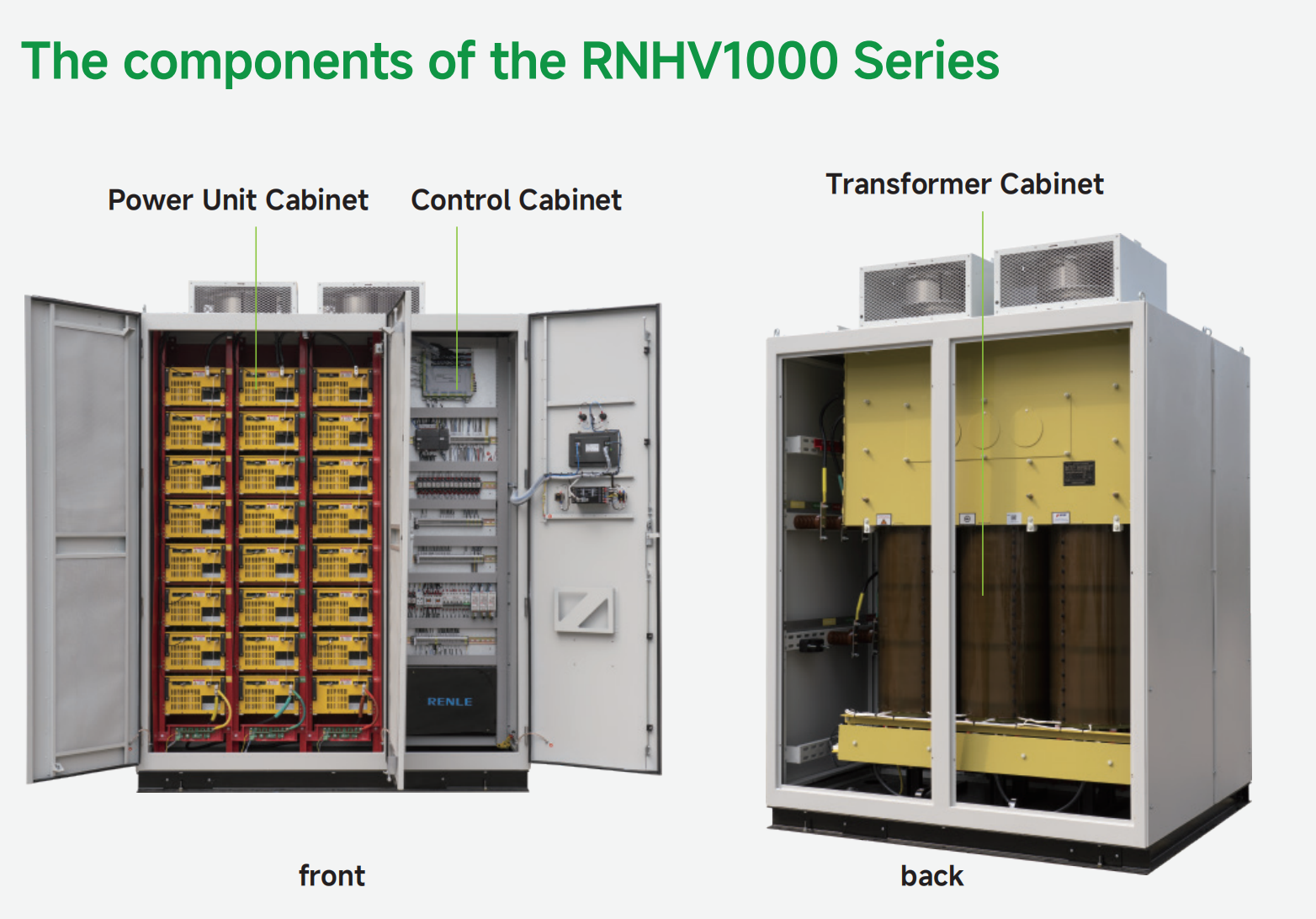

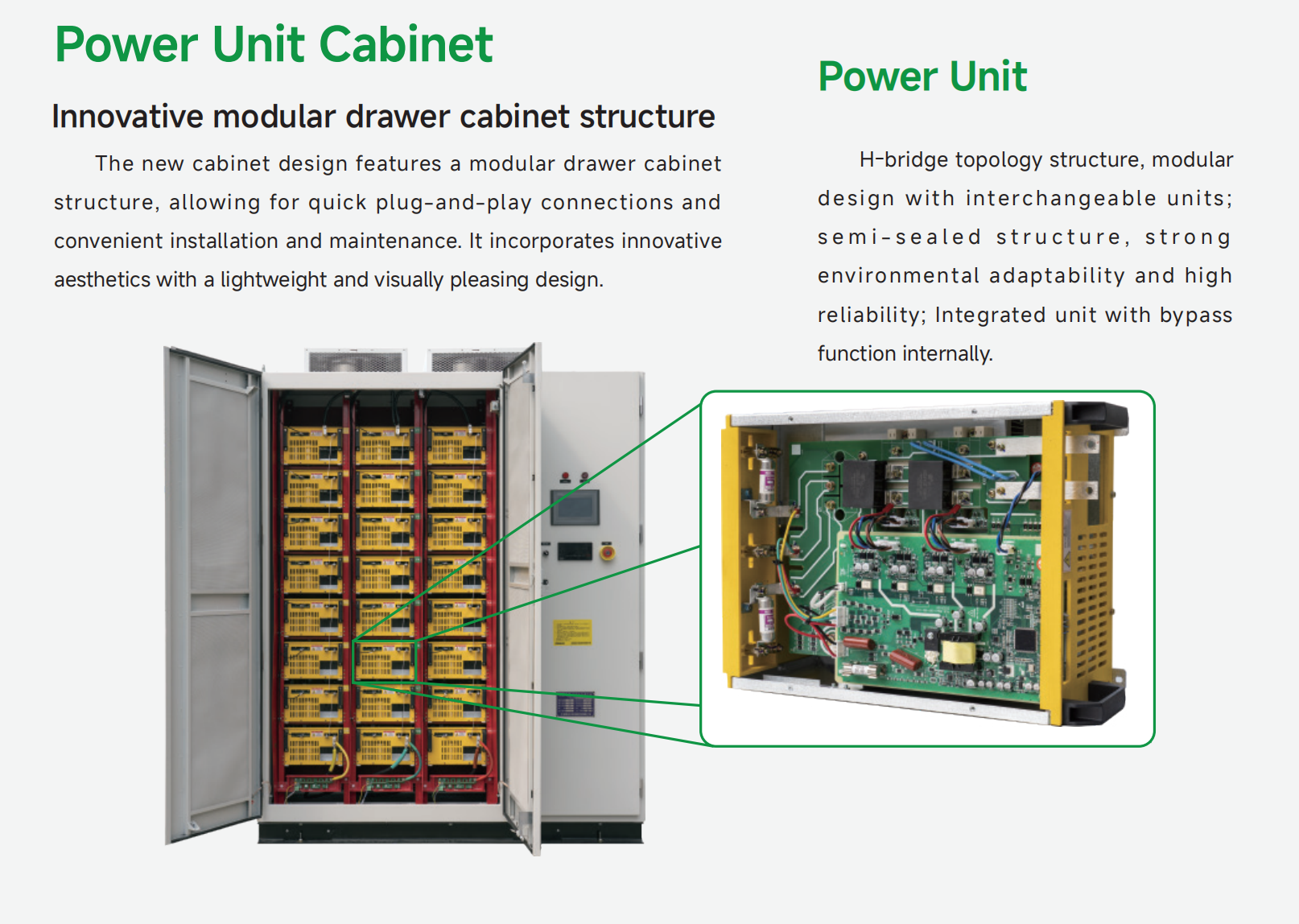

Product Components
6000V 800kw 1000kw RNHV Series Medium Voltage Variable Frequency Drive with Intelligent Control 6000V 800kw 1000kw RNHV Series Medium Voltage Variable Frequency Drive with Intelligent Control
Key Features
  • Ultra-Low Harmonic Distortion: Multi-level phase-shifting rectification technology controls input current harmonics within IEEE 519 limits, eliminating need for additional input filters
  • Automatic Unit Bypass: Hardware-level bypass mechanism isolates faulty modules in milliseconds to maintain continuous operation
  • Perfect Sine Wave Output: Cascaded multi-level PWM output minimizes dv/dt stress on motor insulation and prevents motor overheating
  • Flying Start (Speed Tracking): Integrated speed-tracking algorithms allow restart of rotating motors without overcurrent trips
  • Voltage Sag Ride-Through: Optimized control logic ensures operation during transient grid voltage fluctuations
  • Master-Slave Control: Supports synchronized control for multi-motor drive systems with balanced load distribution
Applications
6000V 800kw 1000kw RNHV Series Medium Voltage Variable Frequency Drive with Intelligent Control
Suitable for various industrial applications including packing machines, conveyor systems, and automated production lines.

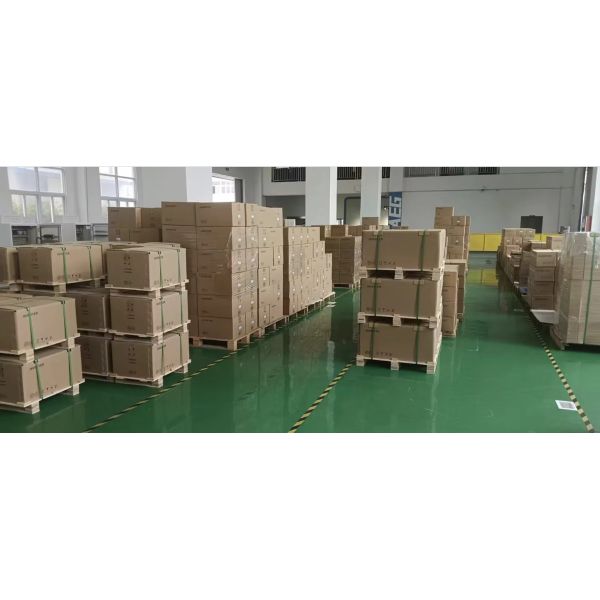

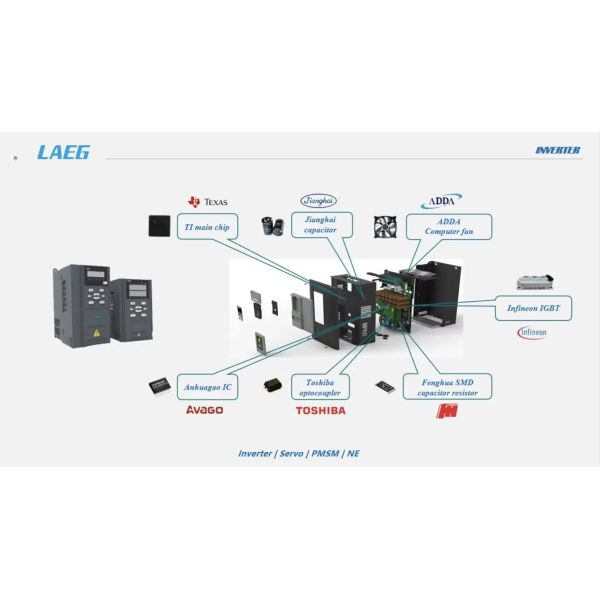

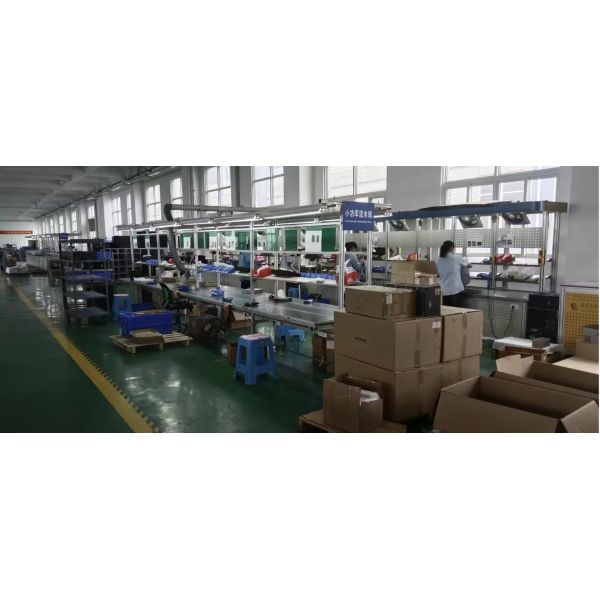

Manufacturing Excellence
Our motor factory scale and product line, products details
6000V 800kw 1000kw RNHV Series Medium Voltage Variable Frequency Drive with Intelligent Control 6000V 800kw 1000kw RNHV Series Medium Voltage Variable Frequency Drive with Intelligent Control 6000V 800kw 1000kw RNHV Series Medium Voltage Variable Frequency Drive with Intelligent Control 6000V 800kw 1000kw RNHV Series Medium Voltage Variable Frequency Drive with Intelligent Control
Certifications
We have CE, ISO9001, CCC and other certificates
6000V 800kw 1000kw RNHV Series Medium Voltage Variable Frequency Drive with Intelligent Control
Packaging
6000V 800kw 1000kw RNHV Series Medium Voltage Variable Frequency Drive with Intelligent Control
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale service. Our principle is customer first, focusing on long-term cooperation.
What are your terms of delivery?
Generally we ship FOB, but we can also arrange CNF, CIF and DDP based on your requirements.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
