Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Specifications
Voltage :
220V,380V,400V,415V,440V,460V,480V
Torque Control :
Direct
Drive Type :
Frequency Inverter
Inputfrequency :
50/60 Hz
Packaging Specifications :
50ml~1000ml
Model No :
N310-20P5
Colour :
grey
Application :
Pumps,fans,compresors,conveyors,Crane
Controlmethod :
V/f control, Vector control, Sensorless vector control
Name :
Industrial VFD
Energy Regeneration :
Four-quadrant
Frequency Resolution :
0.01Hz
Response Speed :
Rapid
Output Phase :
3phase
Size :
167.5*185.8*80mm
Output Voltage :
Customizable
Protectionfeatures :
Overvoltage, undervoltage, overload, short circuit, phase loss
Humidityrange :
5% to 95% non-condensing
Shipping Method :
DHL/FedEx/EMS/TNT
Insulation Voltage :
800V/1600V
Input Voltage :
220V to 380V
Motor Compatibility :
PMSM Motor
Brand Name :
LAEG
Model Number :
LD350-220G-T4
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
2271 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/Months
Delivery Time :
15days
Packaging Details :
12*9*9 cm
Powerrating :
0.5 kW to 500 kW
Energy Function :
Four-quadrant Energy regeneration
Output Power :
0.75KW-55KW
Displaytype :
LCD or LED display
Power Range :
2.2KW-5000KW
Accuracy :
0.5% for VF application
Description
Ld350 Robust Industrial Drive Engineered for Superior Vibration Resistance and Mechanical Stability
Engineered for superior vibration resistance and mechanical stability in demanding industrial applications.
Product Specifications
Model Number LD350-220G-T4
Principle of Work Vector Control Transducer
Switch Mode PWM Control
Main Circuit Type Current
Power Supply Voltage Low Voltage Variable-Frequency Drive
Transformation Link AC-DC-AC Variable-Frequency Drive
DC Power Nature Current Variable-Frequency Drive
Function Simple Type
Brand Laeg
Protection Degree IP55/65
Voltage 380V, or Customized
Frequency 50Hz, 60Hz
Output Frequency 0.01-400 Hz
Transport Package Wooden Cases
Specification 12*9*9 cm
Trademark LAEG
Origin Anhui China
HS Code 8504400090
Production Capacity 5000/Months
Company Profile
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
After more than 55 years of construction and development, Lu'an Jianghuai Motor has become the largest industrialized enterprise in the small, medium and large motor industry, with the most complete product series and the most perfect service network. Our main products include various high-efficiency and energy-saving low-voltage/high-voltage motors, DC motors, high-efficiency explosion-proof motors, special motors, permanent magnet motors, and other synchronous/asynchronous motors. Luan'an motors are mainly applied in industries such as power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical engineering, water conservancy, cement, papermaking, environmental protection, and pharmaceuticals. ANHUI LAEG is the branch of Luan Jianghuai motor company, specializing in VFD production for over 20 years.
Inverter Advantages
  • Compact Size: Advanced modular design saves over 30% volume compared to same-power inverters, providing flexible installation options
  • Superior Excitation Performance: Automatically adjusts motor excitation current to improve efficiency and save energy during light loads
  • Multiple Display Options: Choose between digital or LCD operation panels for enhanced parameter visibility and convenient maintenance
  • Universal Drive Capability: Operates three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors in sensorless mode for optimal energy savings
  • High Reliability: Features long-life fans, capacitors, and enhanced substrate coatings for improved durability and resistance, meeting ROHS requirements and CE certification
Detailed Product Specifications
Model AD10-4R0G-T4-B
Motor Power 4 kW / 5 HP
Rated Output Capacity 5.9 kVA
Rated Output Current 9 A
Output Frequency 0.01-400 Hz
Carrier Frequency Range 1-16 kHz
Overload Capacity 150% rated current for 60s, 200% rated current for 3s
Input Current 10.5 A
Input Voltage & Frequency 3 phase 380V, 50-60Hz
Voltage Range 315V-450V
Cooling System Forced cold air
Brake Unit Built-in
Technical Specifications Table
Input Voltage Frequency Model Input Current (A) Motor Power (kW) Motor Horsepower (HP) Rated Output Capacity (kVA) Output Current (A) Output Frequency Carrier Frequency
1AC 220V 50/60Hz AD10-0R7G-S2B 8.2 0.75 1 1.5 4 0.1-400Hz 1-16kHz
AD10-1R5G-S2B 14 1.5 2 3 7
AD10-2R2G-S2B 23 2.2 3 4 9.6
3AC 380V 50/60Hz AD10-0R7G-T4B 3.4 0.75 1 1.5 2.1 0.1-400Hz 1-16kHz
AD10-1R5G-T4B 5 1.5 2 3 3.8
AD10-2R2G-T4B 5.8 2.2 3 4 5.1
AD10-4R0G-T4B 10.5 3.7 5 5.9 9
AD10-5R5G-T4B 14.6 5.5 7.5 8.9 13
AD10-7R5G-T4B 20.5 7.5 10 11 17
AD10-011G-T4B 26 11 15 17 25

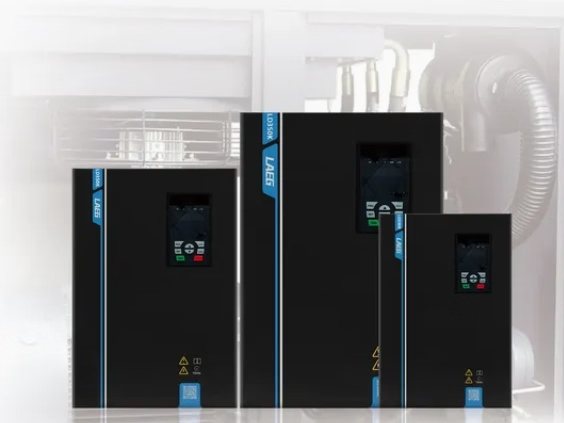

Inverter Applications
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant

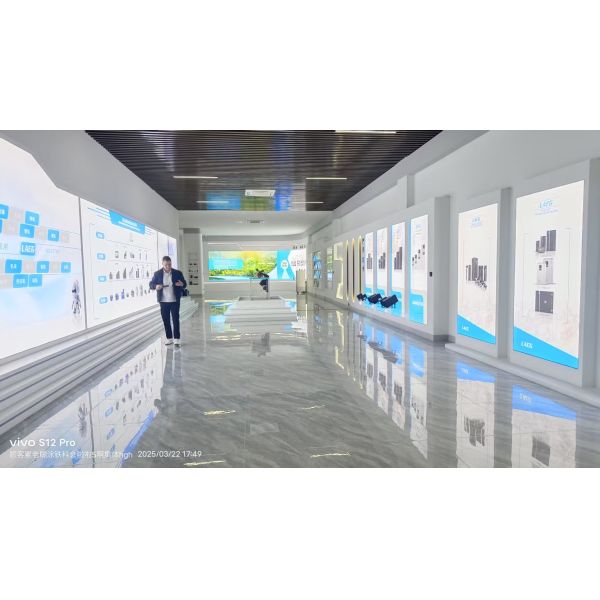

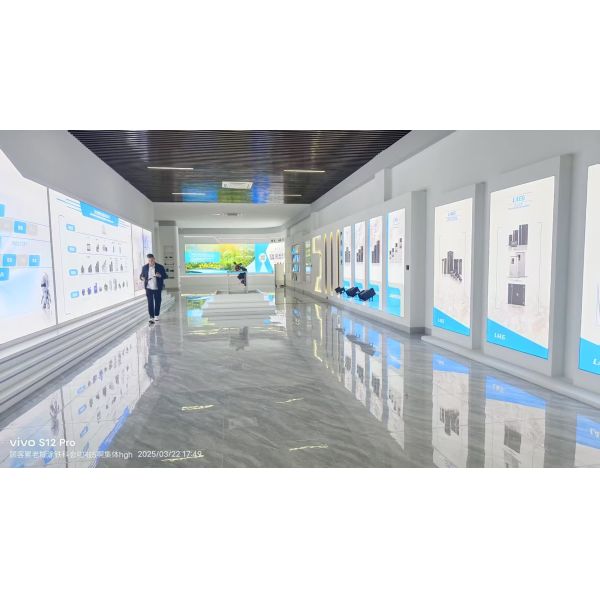

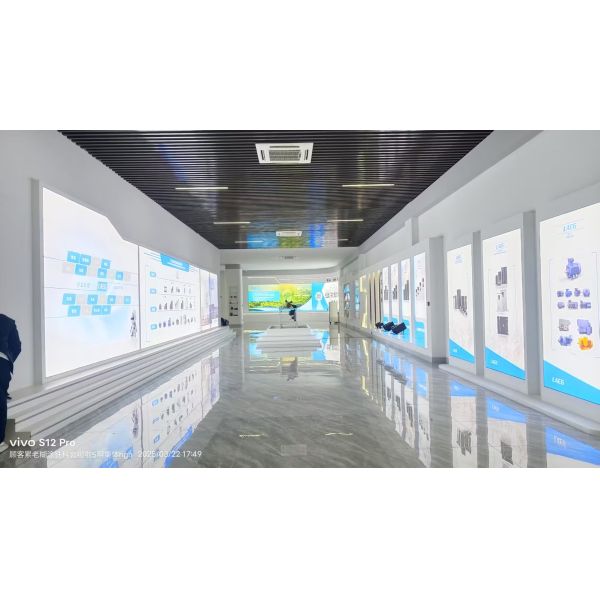

Factory Environment
Our motor factory scale and product line, products details
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Certifications
We have CE, ISO9001, CCC and other certificates
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Packaging
Customizable Industrial VFD Robust VFD Frequency Inverter Vibration Resistant
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale service. Our principle is customer first, focusing on long-term cooperation.
What are your terms of delivery?
Generally we ship FOB, but we can also provide CNF, CIF and DDP solutions based on your requirements.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
